Sealite AQUAFLOAT-800 Series - Marker Buoys

For the latest information on prices and availability please contact us on: (800) 596 7245 or sales@mdnautical.com

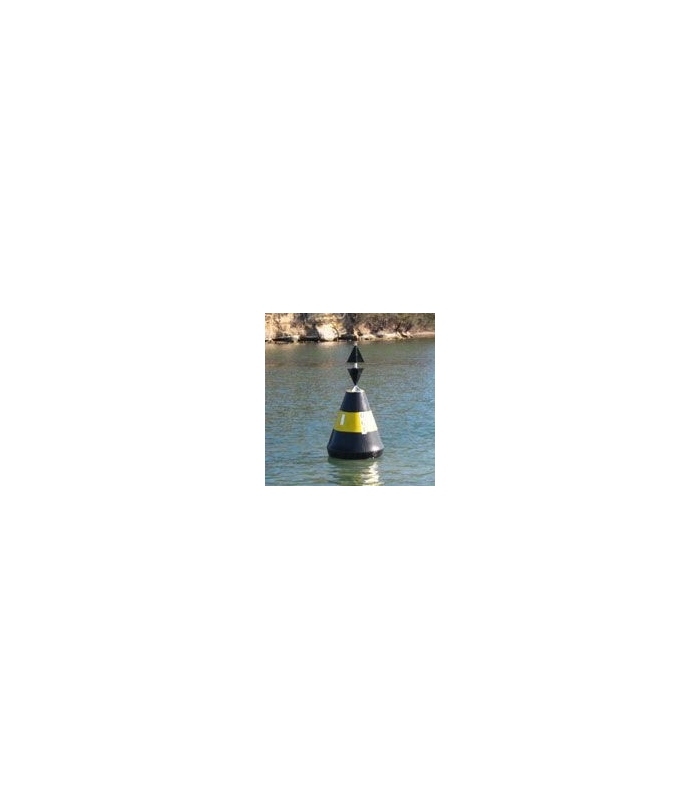

The Sealite Aquafloat-800 is a rotationally-moulded marker buoy series designed as a single piece, low-cost aid to marine navigation. With a large 800mm diameter, these buoys provide clear visibility and can be fitted with a range of marine lanterns.

The Aquafloat-800 series of buoys are available in various configurations to suit IALA requirements, and are rotationally-moulded in high-visibility, UV-stabilized polyethylene.

Moulded inserts on the top section of the float allow for convenient lantern attachment, while the buoys are foam filled with closed-cell polyurethane to prevent water ingress in the unlikely event of damage.

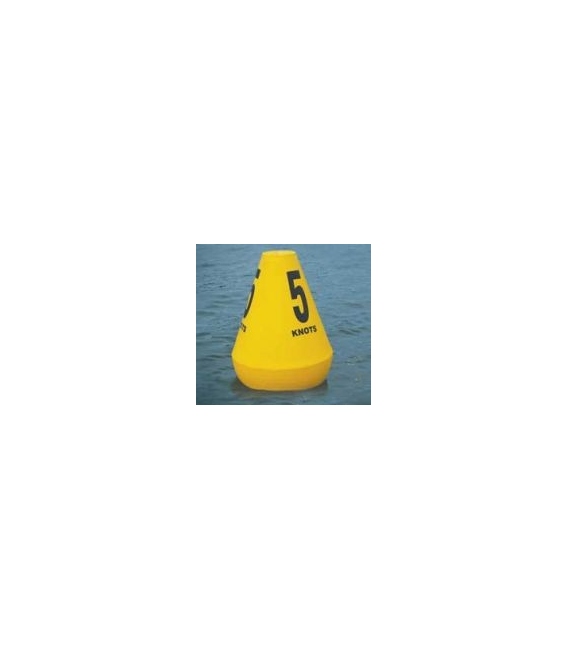

Moulded-in stainless steel lifting eyes in the AQF800-CAN and AQF800-CONE buoys enable ease of maintenance and servicing.

Moulded-in stainless steel lifting eyes in the AQF800-CAN and AQF800-CONE buoys enable ease of handling for maintenance and servicing.

The following downloads are availableDownload
Product Specifications [ download 1.3 MB ]

Features of the Sealite AQUAFLOAT-800_Series

  • Rotationally moulded to 8mm wall thickness
  • Foam filled with closed-cell polyurethane (available without filling)
  • Made from strong, durable, UV-stabilized virgin polyethylene
  • Stainless steel mooring bush
  • Stainless steel moulded-in lifting eye (AQF800-CAN & AQF800-CONE)

Advantages of the Sealite AQUAFLOAT-800_Series

  • High visibility red, green, white or yellow as per IALA Recommendations
  • Range of mooring equipment & chain available

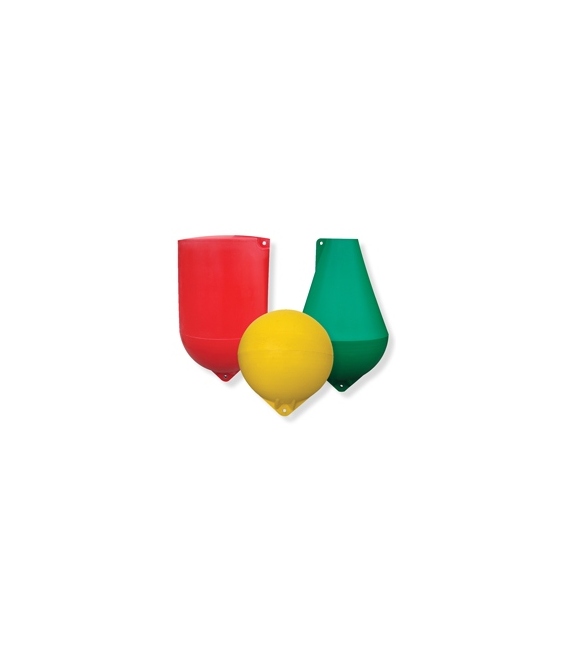

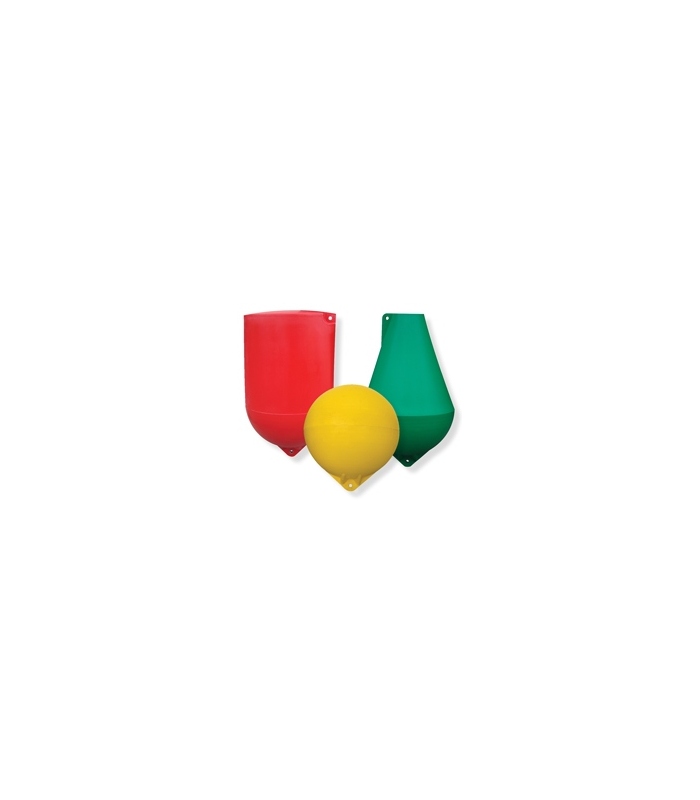

  • Available in three configurations to suit every installation
  • Excellent buoyancy & stability

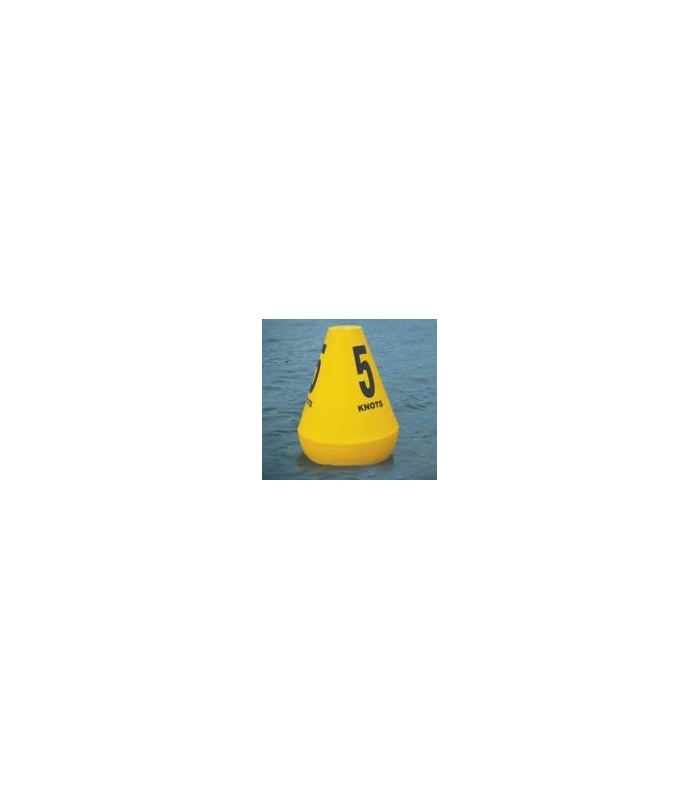

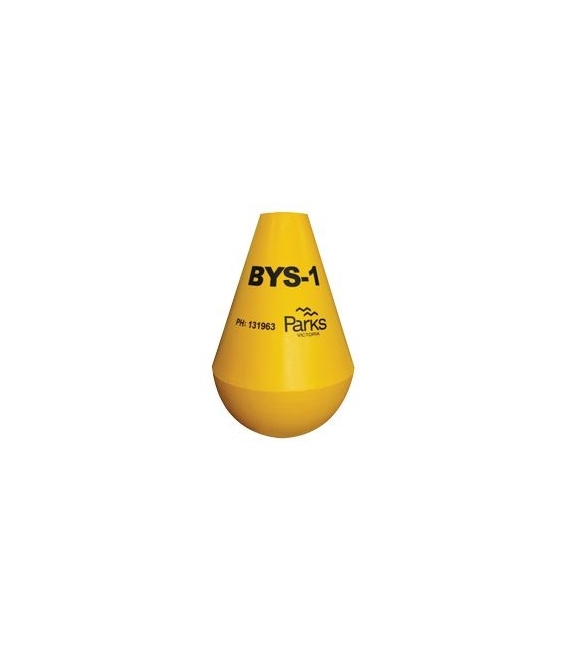

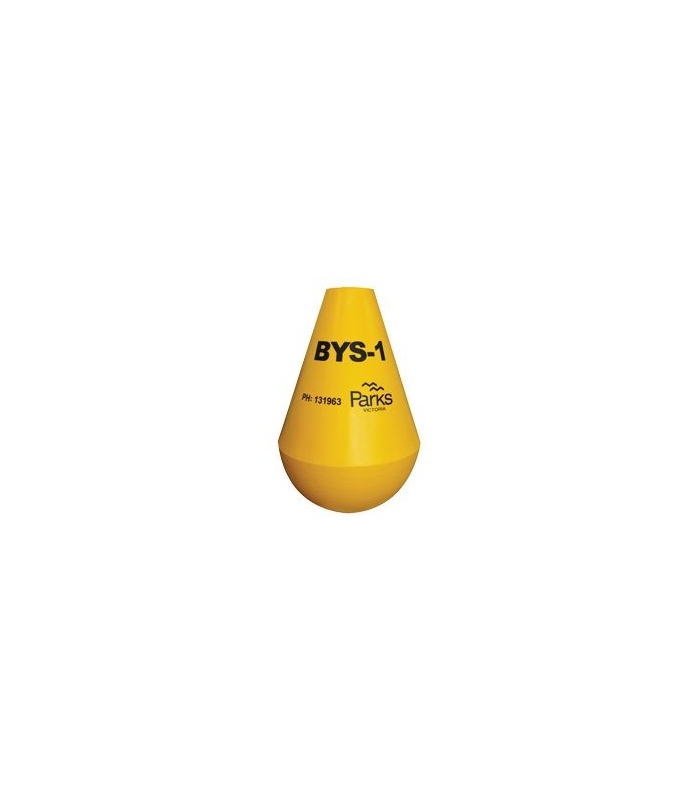

  • Mould-in graphics to suit customer requirements
  • Environmentally friendly & recyclable

Options Available for the Sealite AQUAFLOAT-800_Series

No Foam Filling

images/products/AQUAFLOAT-800_Series_stg_opt2_img.

Sealite IALA Recommended Top Marks
General Characteristics - Buoys
Available Colours Red, Green, White, Yellow as per IALA Recommendations
Total Float Volume (L/US gal) See downloadable PDF
Reserve Buoyancy (kg/lb) See downloadable PDF
Maximum Mooring Load (kg/lb) See downloadable PDF
Maximum Draft (mm/inches) See downloadable PDF
Minimum Freeboard (mm/inches) See downloadable PDF
Physical Characteristics - Buoys
Material Rotationally-moulded UV-stabilized virgin polyethylene
Wall Thickness (mm/inch) 8 / 1/3
Filling Closed-cell polyurethane foam
Ballast (kg/lb) 20 / 44
Height (mm/inch) From 860 / 33 7/8
Width (mm/inch) 800 / 31 1/2
Mass (kg/lb) See downloadable PDF
Life Expectancy Up to 12 years
Certifications
Quality Assurance ISO9001:2008
Intellectual Property
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty
Warranty 1 year
