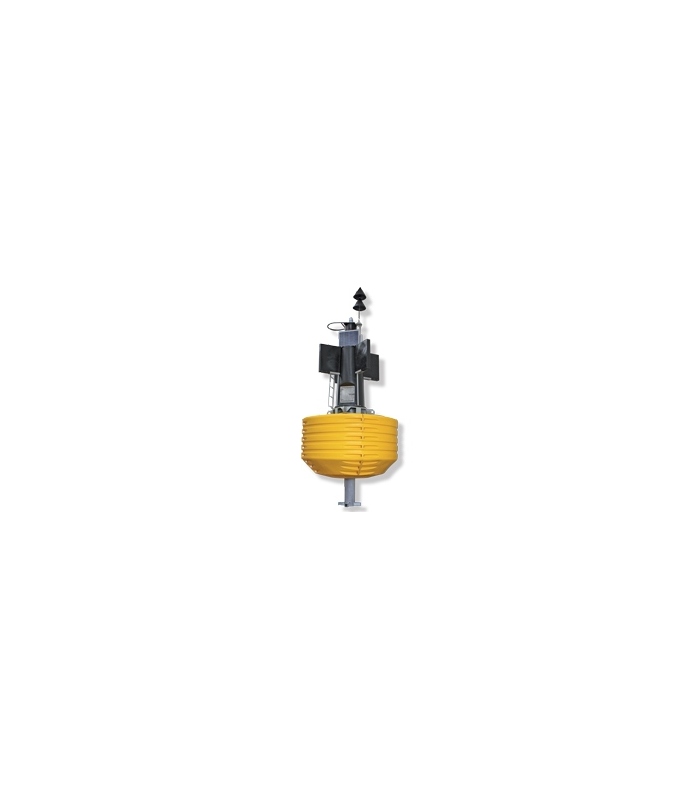

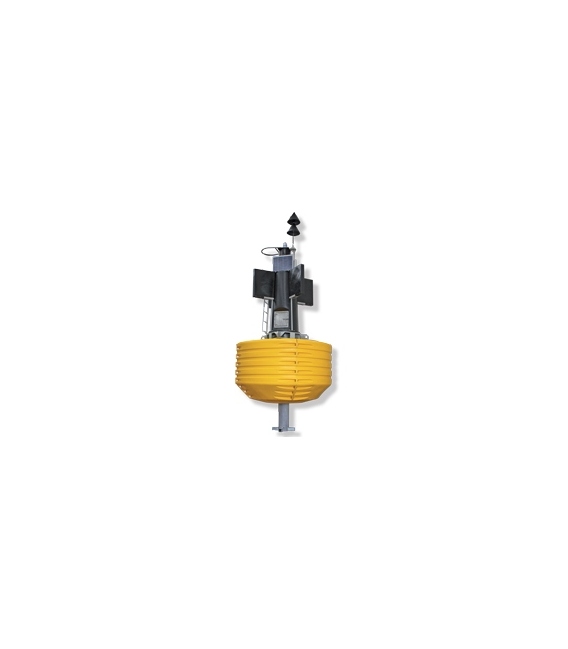

Sealite TRIDENT-3000 - 3000mm dia. Ocean Buoy

For the latest information on prices and availability please contact us on: (800) 596 7245 or sales@mdnautical.com

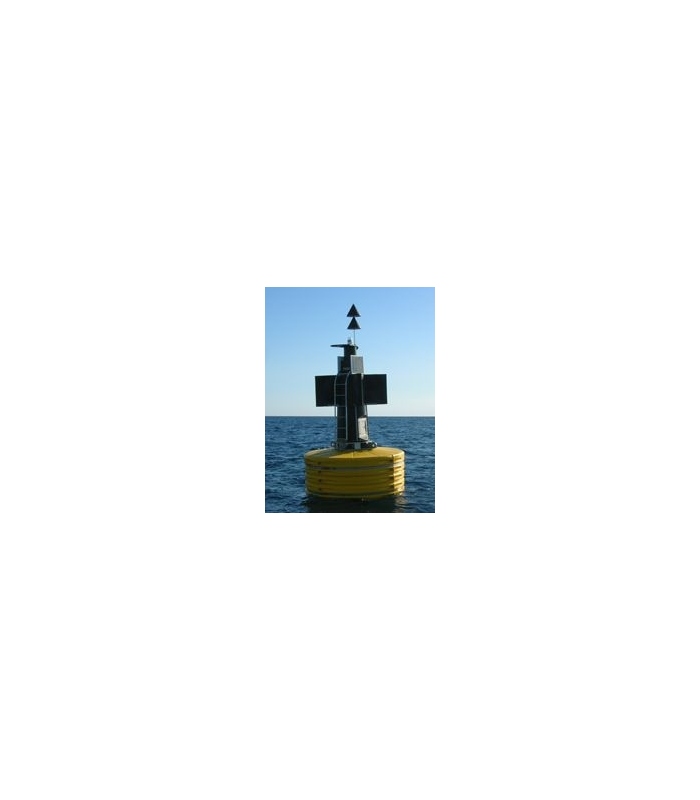

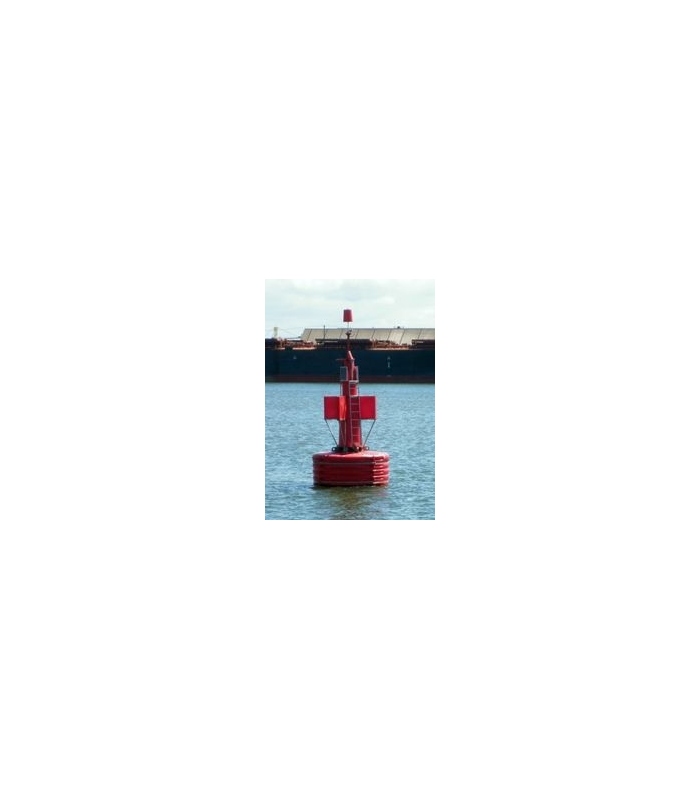

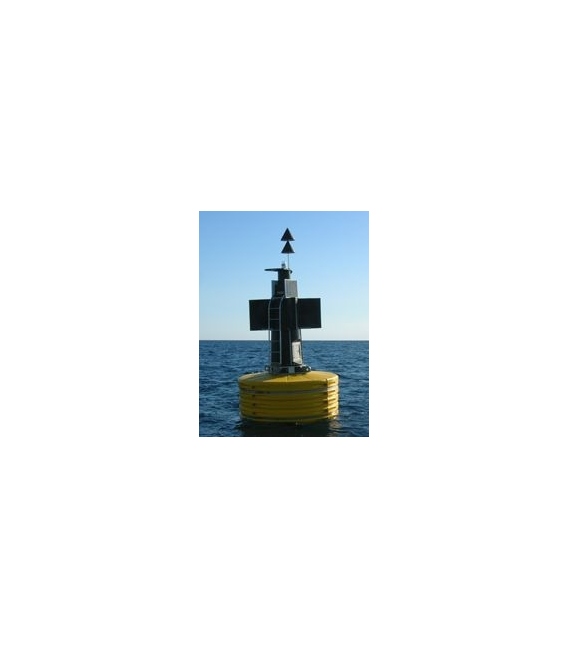

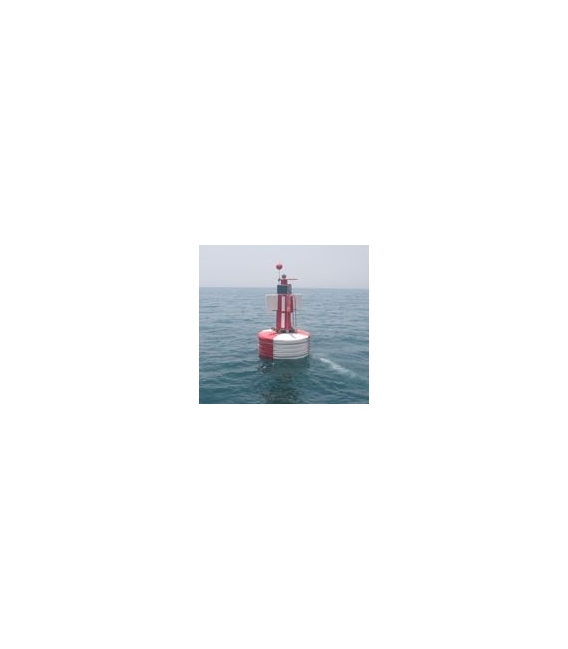

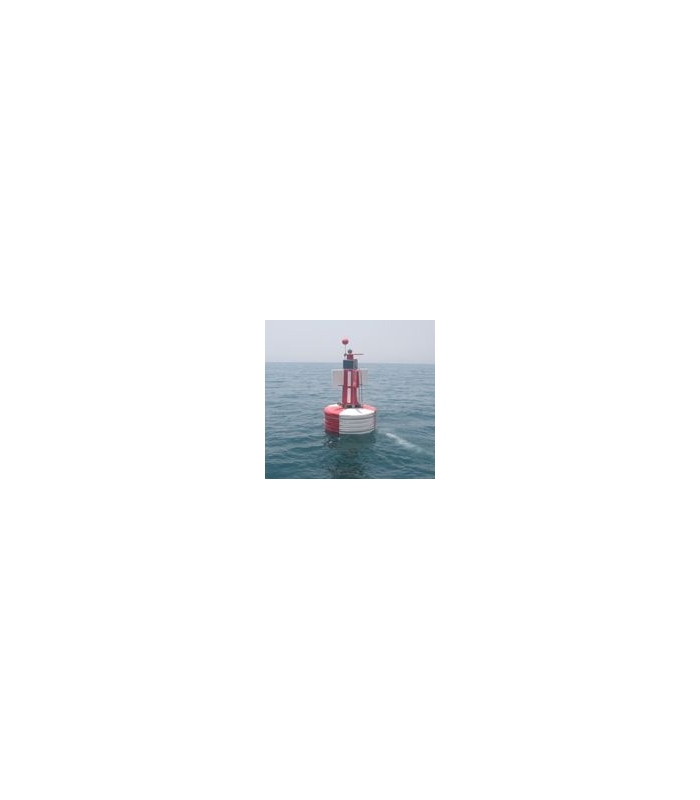

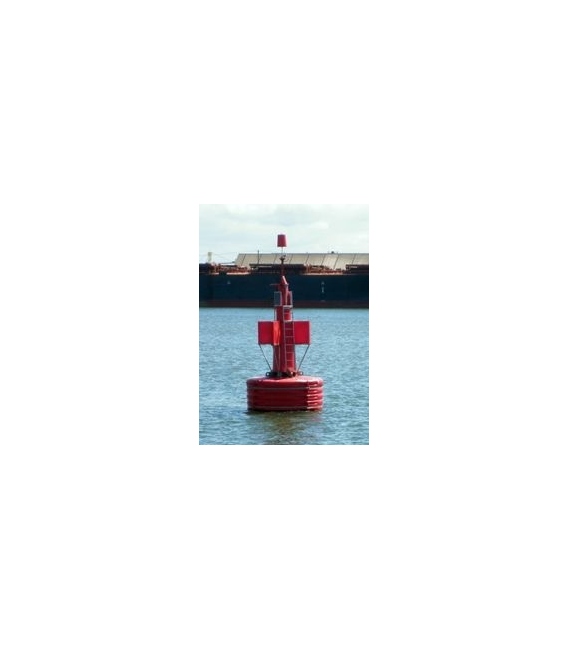

The Trident-3000 is one of the largest, rotationally-moulded buoys available, with a float diameter of 3 meters and lantern focal height of up to 5 meters.

The float section of the Trident-3000 is built from four (4) rotationally-moulded quadrants, which fasten together to form an incredibly robust 3 meter wide float section standing 1.8 meters tall. Each quadrant is moulded from UV-stabilized, virgin polyethylene, and has an 18mm wall thickness. In addition, each section is filled with closed-cell polyurethane, which prevents the ingress of moisture in the unlikely event of damage.

A galvanised steel or 316-grade stainless steel mooring pole runs through the centre of the assembly, to which the tower section is fastened. Four large lifting eyes aid in buoy mooring and periodic servicing.

The enhanced poly-tower design provides a huge visual area for navaid recognition, and consists of two sealed, rotationally-moulded tower sections. The lower section incorporates a battery access door and houses batteries, controllers and any ancillary electronic payload. The top section incorporates an internal radar reflector and solar mount facility.

Rotationally-moulded paneling is fitted to the outside of the tower section to create a large coloured visual area for marking. The replaceable paneling also simplifies cardinal marking and gives operators flexibility in stocking spare components. No part of the structure requires painting at any stage of the product’s life span.

An integrated ladder with harness attachment points runs vertically up the tower to the top of the platform.

A large counterweight offers exceptional stability in a variety of exposed regions.

The Trident-3000 can be supplied in all IALA colours.

The Trident-3000 can be economically shipped around the globe with 1x complete buoy being packed into a 20ft shipping container.

The following downloads are availableDownload
Product Specifications [ download 1.8 MB ]
Purchase Specification [ download 18 KB ]
Product brochure Espanõl (Spanish language version) [ download 1.8 MB ]

Features of the Sealite TRIDENT-3000

  • IALA top mark, internal radar reflector, guard rail & convenient tether points
  • 316-grade stainless steel ladder & sealed tower access door
  • Made from strong, durable UV-stabilized virgin polyethylene - rotationally-moulded to 18mm wall thickness (float section)
  • Non-slip deck
  • Adjustable ballast
  • Convenient fork lift access points to safely manoeuvre the buoy assembly

Advantages of the Sealite TRIDENT-3000

  • High visibility red, green, white or yellow as per IALA Recommendations
  • 3mtr diameter & 5mtr focal height
  • Robust construction of 4 quadrant hull sections, & large battery & payload section
  • Excellent buoyancy & stability, & easy to deploy & service
  • No painting ever
  • Cost effective, environmentally friendly & recyclable

Options Available for the Sealite TRIDENT-3000

Mould-in Graphics

images/products/TRIDENT-3000_stg_opt2_img.jpg

Rotationally-Moulded Side-Panelling & Day Marks

Monitoring System (AIS, GSM)
General Characteristics - Buoys
Available Colours Red, Green, White, Yellow as per IALA Recommendations
Focal Plane Height (mm/inches) Up to 5700 / 224 1/2. See downloadable PDF
Total Float Volume (L/US gal) 11000 / 2906
Nominal Freeboard (mm/inches) See downloadable PDF
Reserve Buoyancy (kg/lb) See downloadable PDF
Maximum Mooring Load (kg/lb) 2750 / 6063
Maximum Draft (mm/inches) 2400 / 94 1/2
Minimum Freeboard (mm/inches) 800 / 31 1/2
Safe Working Load, 1 point (kg/lb) 6000 / 13228
Safe Working Load, 2 point (kg/lb) 8630 / 19025
Submergence (kg/cm, lb/inch) 72 / 403
Visual Area (m2/ft2 See downloadable PDF
Water Area (m2/ft2 2.1 / 22.6
Physical Characteristics - Buoys
Material Rotationally-moulded UV-stabilized virgin polyethylene float section, top marks & panelling. See downloadable PDF
Wall Thickness (mm/inch) 18 / 3/4 (float section)
Filling Closed-cell polyurethane foam (float section)
Ballast (kg/lb) See downloadable PDF
Height (mm/inch) See downloadable PDF
Width (mm/inch) 3000 / 118 1/8
Mass (kg/lb) See downloadable PDF
Radar Reflector Echomax
Life Expectancy >20 years
Certifications
Quality Assurance ISO9001:2008
Intellectual Property
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty
Warranty 5 years
