This model is extremely long-lasting, and is molded in strong, durable, UV-stabilized polyethylene. A large mooring chain attachment point accommodates a 16mm shackle or 12mm silver rope.
The top section has 3 threaded studs, molded into the buoy to enable easy mounting of either the SL15, SL60 or SL70 1-3nm+ solar lights.

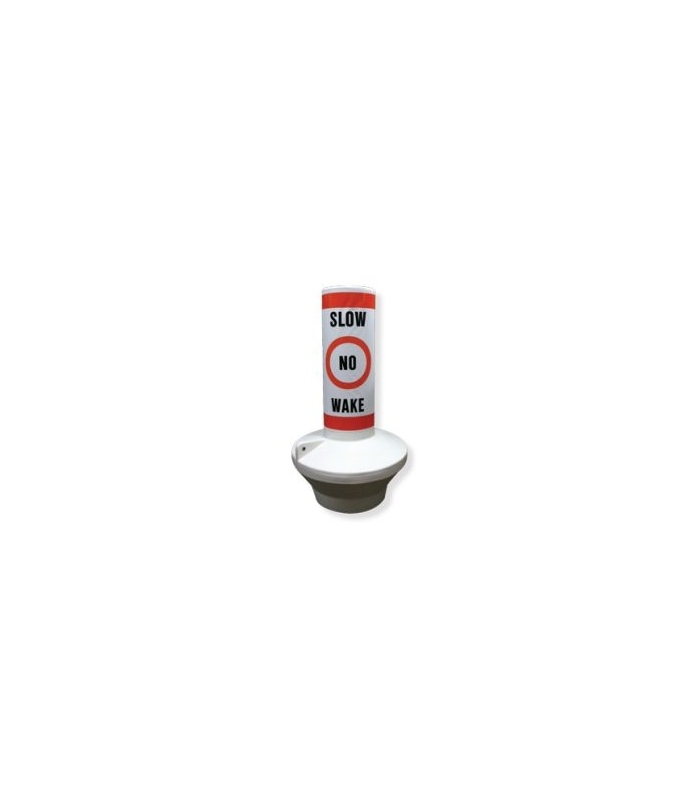

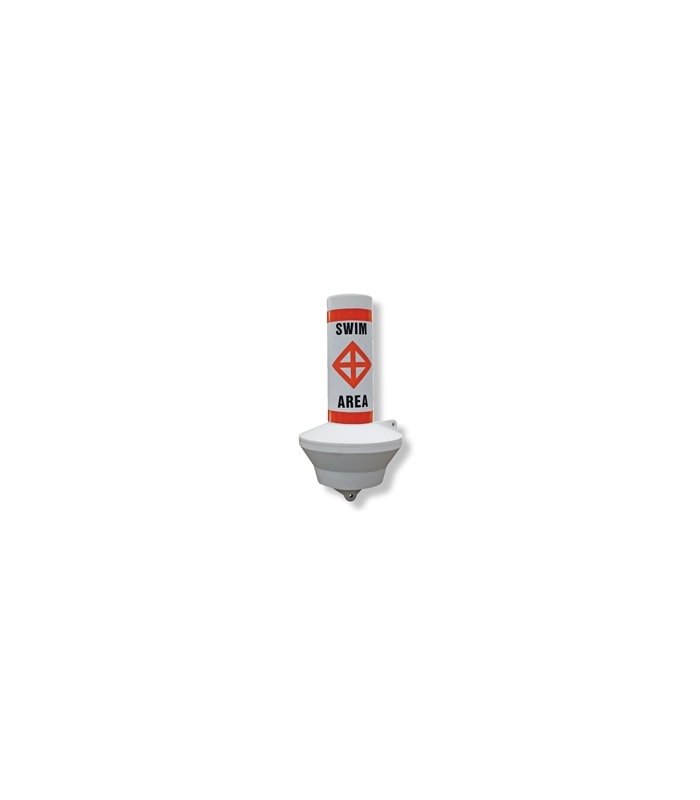

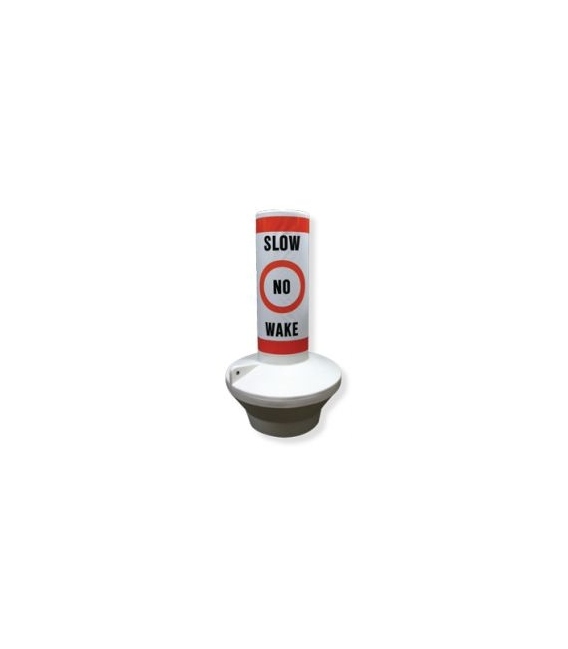

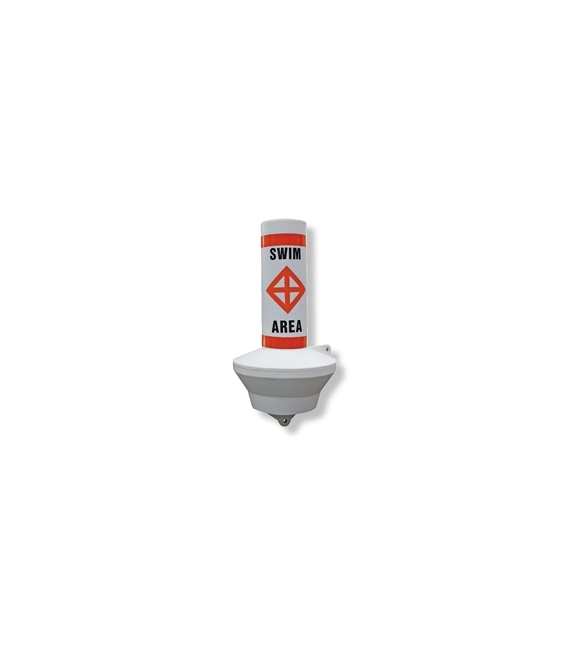

Vinyl buoy wraps constructed of heavy, 10 oz. vinyl, have standard regulatory symbols and wording and are highly customizable. Attachment is straightforward, with self-sealing rivets (standard) or Velcro® for temporary or emergency applications. Sealite also provide the option of customized graphics which are permanently molded into the product at the time of manufacture and will hold up under the most extreme environments and never peel off or fade over time.
The SLB700 is used extensively throughout North America by Federal, State, and Local authorities as well as Private Organizations.
The following downloads are available | Download |
---|---|
Product Specifications | [ download 661 KB ] |
Product brochure Espanõl (Spanish language version) | [ download 778 KB ] |
General Characteristics - Buoys
|
|
Available Colours | Orange, Red, Green, White, Yellow as per IALA Recommendations |
Focal Plane Height (mm/inches) | 1155 / 45 1/2 |
Total Float Volume (L/US gal) | 197 / 52 |
Nominal Freeboard (mm/inches) | 408 / 16 |
Reserve Buoyancy (kg/lb) | 60 / 132 |
Maximum Mooring Load (kg/lb) | 60 / 132 |
Maximum Draft (mm/inches) | 470 / 18 1/2 |
Minimum Freeboard (mm/inches) | 160 / 6 1/4 |
Submergence (kg/cm, lb/inch) | 3.8 / 21.6 |
Physical Characteristics - Buoys
|
|
Material | Rotationally-molded UV-stabilized virgin polyethylene |
Wall Thickness (mm/inch) | 7 / 1/4 |
Filling | Closed-cell polyurethane foam |
Ballast (kg/lb) | 20 / 44 internal concrete |
Height (mm/inch) | 1370 / 53 7/8 |
Width (mm/inch) | 700 / 27 1/2 |
Mass (kg/lb) | 38 / 84 |
Life Expectancy | Up to 12 years |
Certifications
|
|
Quality Assurance | ISO9001:2008 |
Intellectual Property
|
|
Trademarks | SEALITE® is a registered trademark of Sealite Pty Ltd |
Warranty
|
|
Warranty | 1 year |
