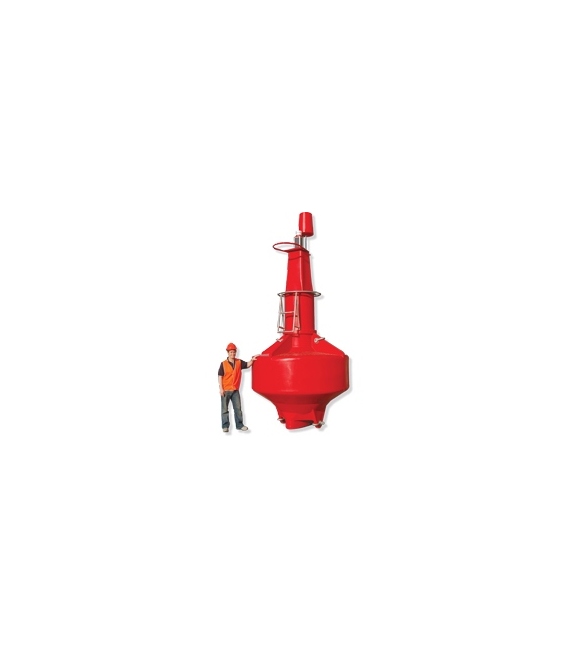

Sealite NAUTILUS-2200 - 2200mm dia. Ocean Buoy

New product

*** CONTACT OUR OFFICE FOR PRICING & AVAILABILITY

More details

Shipping Rates


More info

Sealite NAUTILUS-2200 - 2200mm dia. Ocean Buoy

For the latest information on prices and availability please contact us on: (800) 596 7245 or sales@mdnautical.com

The Nautilus-2200 is a robust, rotationally-moulded polyethylene ocean buoy designed for offshore, port and coastal applications.

The buoy is rotationally-moulded by Sealite from UV-stabilized, virgin polyethylene, and has a 2.2mtr float diameter and 3.2mtr lantern focal height. Lantern focal height may be increased up to 4mtrs.

Built in a 2-part modular design, the buoy can be setup in any IALA recommended assembly, and consists of a high-visibility float section with non-slip tread, and a tower section to support considerable payload.

The twin lifting and mooring eyes are interconnected by stainless steel tie bars through the hull structure – offering enormous strength and superior longevity of the navaid.

Five (5) buoys can be shipped in a 40ft container economically to almost any destination.

The Sealite Nautilus-2200 is one of the largest buoys available to incorporate a one-piece, rotationally-moulded hull section, and represents exceptional value for port operators around the world.

The following downloads are availableDownload
Product Specifications [ download 1.4 MB ]
Purchase Specification [ download 14 KB ]
Product brochure Espanõl (Spanish language version) [ download 1.5 MB ]

Features of the Sealite NAUTILUS-2200

  • IALA top mark, guard rail & internal radar reflector
  • Convenient tether points, innovative guidance keel & twin mooring points
  • Made from stong, durable UV-stabilized virgin polyethylene
  • Rotationally-moulded to 18mm wall thickness & foam filled with closed-cell polyurethane

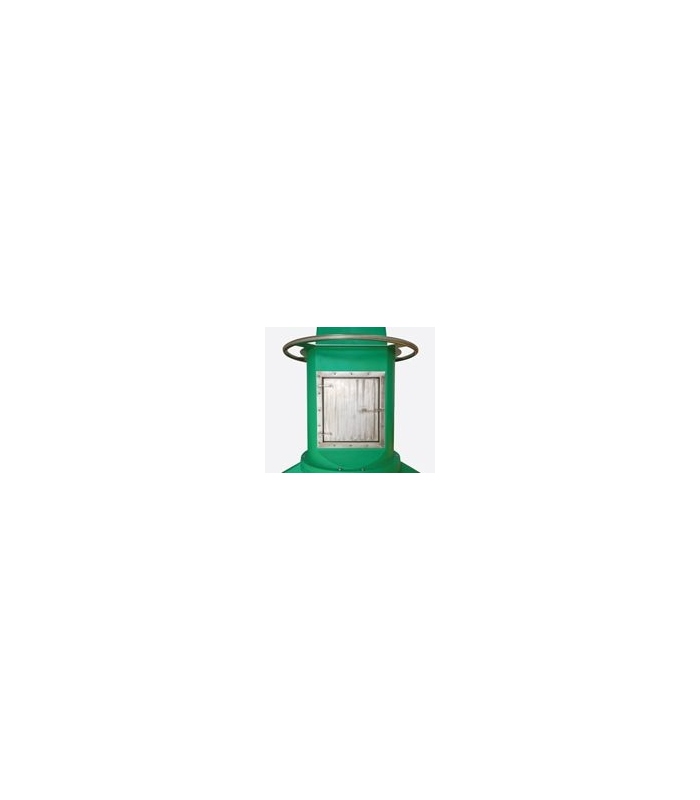

  • Optional lantern & battery compartment
  • Internal tie-bars to interconnect lifting & mooring points

Advantages of the Sealite NAUTILUS-2200

  • High visibility red, green, white or yellow as per IALA Recommendations
  • 2.2mtr diameter and 3.2mt focal height (may be increased to 4mtr)
  • Robust construction, 2-part modular design
  • Internal redundant buoyancy system, & large battery & payload section
  • Lightweight. Excellent buoyancy & stability
  • Cost effective & environmentally friendly. Easy to deploy & service

Options Available for the Sealite NAUTILUS-2200

Mould-in Graphics

images/products/NAUTILUS-2200_stg_opt2_img.jpg

Rotationally-Moulded Side-Panelling & Day Marks

Monitoring System (AIS, GSM)
General Characteristics - Buoys
Available Colours Red, Green, White, Yellow as per IALA Recommendations
Focal Plane Height (mm/inches) 3200 / 126
Total Float Volume (L/US gal) 4370 / 1154
Nominal Freeboard (mm/inches) 780 / 30 3/4
Reserve Buoyancy (kg/lb) 1050 / 2315
Maximum Mooring Load (kg/lb) 1050 / 2315
Maximum Draft (mm/inches) 960 / 37 3/4
Minimum Freeboard (mm/inches) 510 / 20 1/8
Safe Working Load, 1 point (kg/lb) 1950 / 4300
Safe Working Load, 2 point (kg/lb) 5200 / 11460
Submergence (kg/cm, lb/inch) 39 / 218
Visual Area (m2/ft2 3 / 32.3
Physical Characteristics - Buoys
Material Rotationally-moulded UV-stabilized virgin polyethylene. Internal 316-grade stainless steel bracing. 316-grade stainless steel grab rail & ladder
Wall Thickness (mm/inch) 18 / 3/4 (float section)
Filling Closed-cell polyurethane foam (float section)
Ballast (kg/lb) 350 / 772 internal concrete
Height (mm/inch) 4120 / 162 1/4
Width (mm/inch) 2200 / 86 2/3
Mass (kg/lb) 830 / 1830
Radar Reflector Echomax
Life Expectancy >20 years
Certifications
Quality Assurance ISO9001:2008
Intellectual Property
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty
Warranty 5 years
