Sealite AQUAFLOAT Series - Marker Buoys
*** Please e-mail us @ [email protected] for pricing & availability.
More info
AQUAFLOAT Series - Marker Buoys

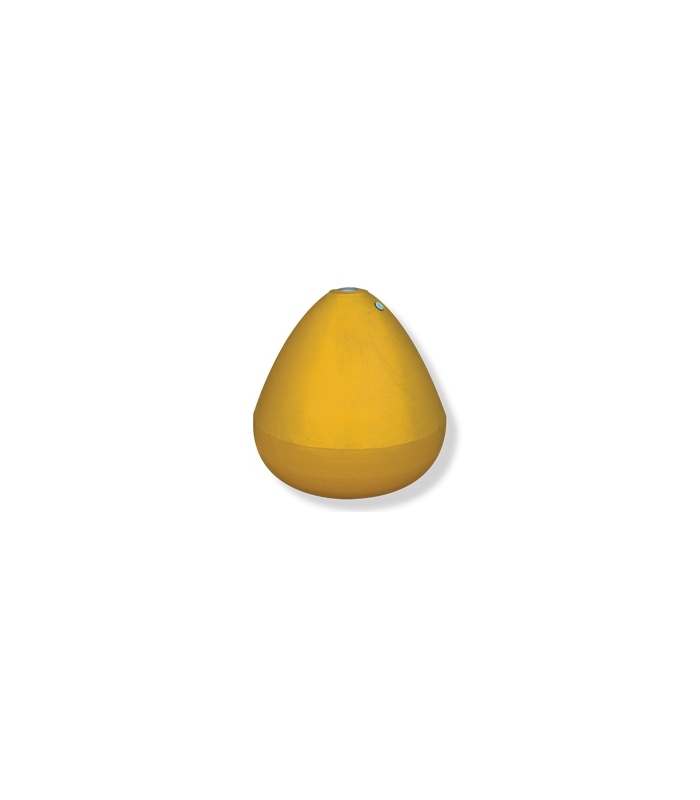

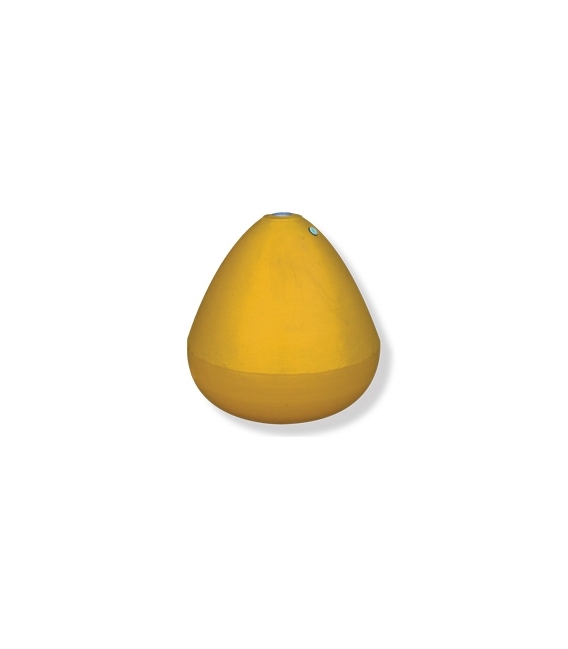

Sealite Aquafloat-600 (AQF600) Marker Buoy
Sealite’s Aquafloat-600 (AQF600) is a rotationally-moulded marker buoy designed to give customers flexibility in their floating aid requirements.
A large central tube suits a 55mm OD pipe mount, or may be used to aid installations or provide multiple rope anchorage points.
The Aquafloat-600 is polyurethane foam filled to prevent water ingress in the unlikely event of damage, and is offered in all high-visibility IALA colours.
Aquafloat-400 (AQF400) Marker Buoy
Another model in Sealite’s Aquafloat range is the Aquafloat-400 (AQF400), rotationally-moulded 400mm diameter marker buoy float. Designed for a range of installations including mooring, dive sites and to mark underwater work, the Aquafloat-400 is available with various fittings to suit many applications.
| The following downloads are available | Download |
|---|---|
| Product Specifications | [ download 1.9 MB ] |
Features of the Sealite AQUAFLOAT_Series
- Large central aluminium tube
- Closed-cell polyurethane foam filled
- Made from strong durable, UV-stabilized virgin polyethylene
- Rotationally moulded to 7mm wall thickness
Advantages of the Sealite AQUAFLOAT_Series
- High visibility red, green, white or yellow as per IALA recommendations
- Excellent buoyancy
|
General Characteristics - Buoys
|
|
| Available Colours | Red, Green, White, Yellow as per IALA Recommendations |
| Total Float Volume (L/US gal) | AQF600: 92 / 24 AQF400: 29 / 7.7 |
| Reserve Buoyancy (kg/lb) | AQF600: 40 / 88 AQF400: 12.7 / 28 |
| Maximum Mooring Load (kg/lb) | AQF600: 35 / 77 AQF400: 12.7 / 28 |
| Maximum Draft (mm/inches) | AQF600: 260 / 10 1/4 AQF400: 360 / 14 |
| Submergence (kg/cm, lb/inch) | AQF600: 2.8 / 15.7 AQF400: 1.1 / 6.2 |
|
Physical Characteristics - Buoys
|
|
| Material | Rotationally-moulded UV-stabilized virgin polyethylene |
| Wall Thickness (mm/inch) | 7 / 1/4 |
| Filling | Closed-cell polyurethane foam |
| Height (mm/inch) | AQF600: 610 / 24 AQF400: 382 / 15 |
| Width (mm/inch) | AQF600: 592 / 23 1/3 AQF400: 382 / 15 |
| Mass (kg/lb) | AQF600: 15 / 33 AQF400: 4.5 / 10 |
| Life Expectancy | Up to 12 years |
|
Certifications
|
|
| Quality Assurance | ISO9001:2008 |
|
Intellectual Property
|
|
| Trademarks | SEALITE® is a registered trademark of Sealite Pty Ltd |
|
Warranty
|
|
| Warranty | 1 year |
