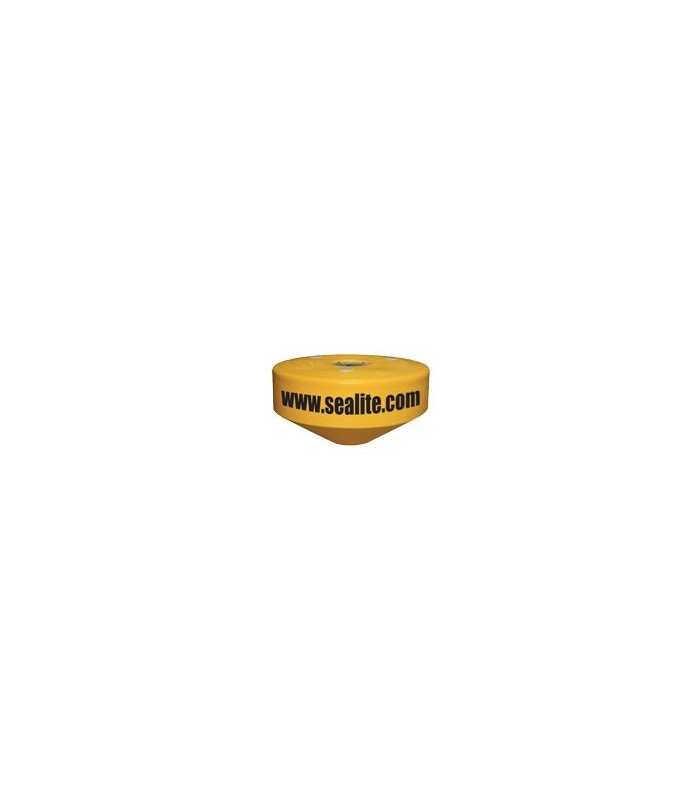

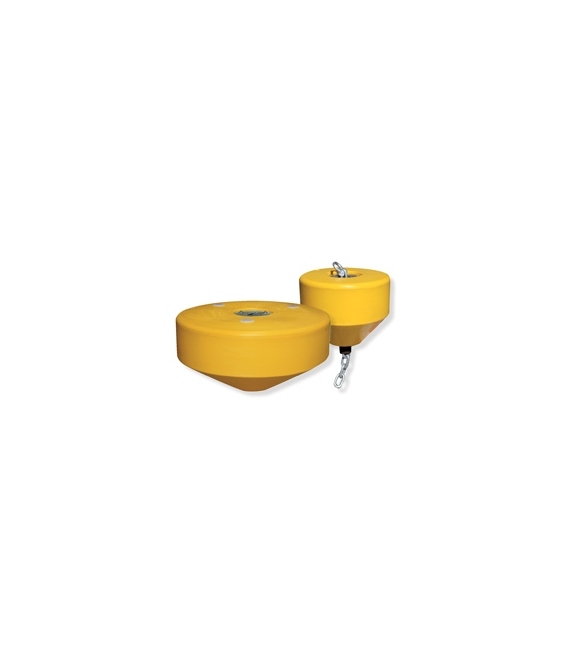

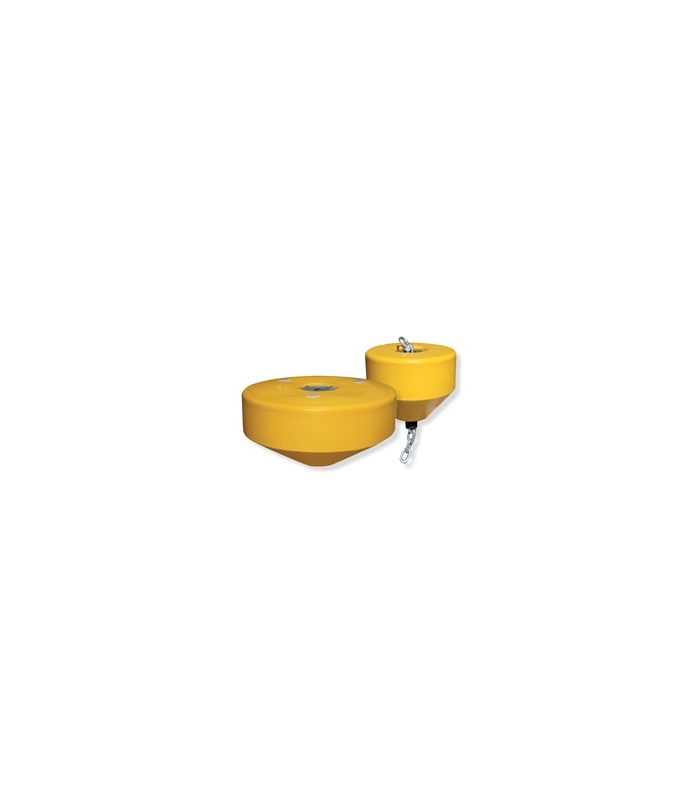

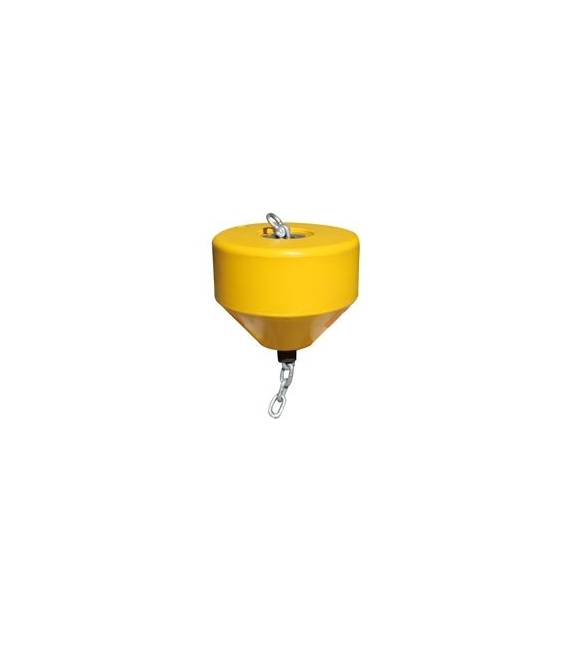

The Aquamoor-1000 has a 1000mm diameter offering increased visibility and buoyancy in deeper waters.
The mooring buoys are rotationally-moulded from UV-stabilized virgin polyethylene to a 7mm wall thickness, and are foam filled with closed-cell polyurethane to prevent water ingress in the unlikely event of damage to the outer layer.

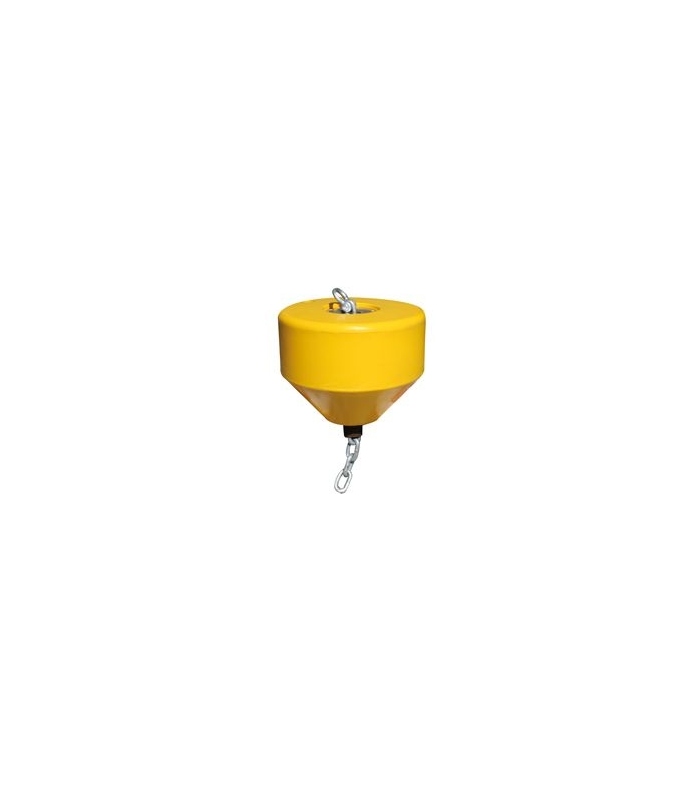

The large galvanised mooring tube with 82.5mm ID will accept mooring chain of up to 20mm in diameter. The mooring tube is not moulded into the buoy but slides into a tubular section that runs down the centre of the buoy enabling the tube to be replaced at any stage during the product's service life.
The following downloads are available | Download |
---|---|
Product Specifications | [ download 1.5 MB ] |
General Characteristics - Buoys
|
|
Available Colours | Red, Green, White, Yellow as per IALA Recommendations |
Total Float Volume (L/US gal) | AQM650: 136 / 36 AQM1000: 290 / 76.6 |
Reserve Buoyancy (kg/lb) | AQM650: 70 / 154 AQM1000: 145 / 320 |
Maximum Draft (mm/inches) | 450 / 17 3/4 |
Minimum Freeboard (mm/inches) | 145 / 5 3/4 |
Submergence (kg/cm, lb/inch) | AQM650: 3.4 / 19.1 AQM1000: 8.1 / 45.4 |
Physical Characteristics - Buoys
|
|
Material | Rotationally-moulded UV-stabilized virgin polyethylene |
Wall Thickness (mm/inch) | 7 / 1/4 |
Filling | Closed-cell polyurethane foam |
Height (mm/inch) | 595 / 23 3/8 |
Width (mm/inch) | AQM650: 650 / 25 2/3 AQM1000: 1000 / 39 3/8 |
Mass (kg/lb) | AQM650: 21 / 46 AQM1000: 35 / 77 |
Life Expectancy | Up to 12 years |
Certifications
|
|
Quality Assurance | ISO9001:2008 |
Intellectual Property
|
|
Trademarks | SEALITE® is a registered trademark of Sealite Pty Ltd |
Warranty
|
|
Warranty | 1 year |
