Sealite ATLANTIC-2600 - 2600mm dia. Ocean Buoy

For the latest information on prices and availability please contact us on: (800) 596 7245 or sales@mdnautical.com

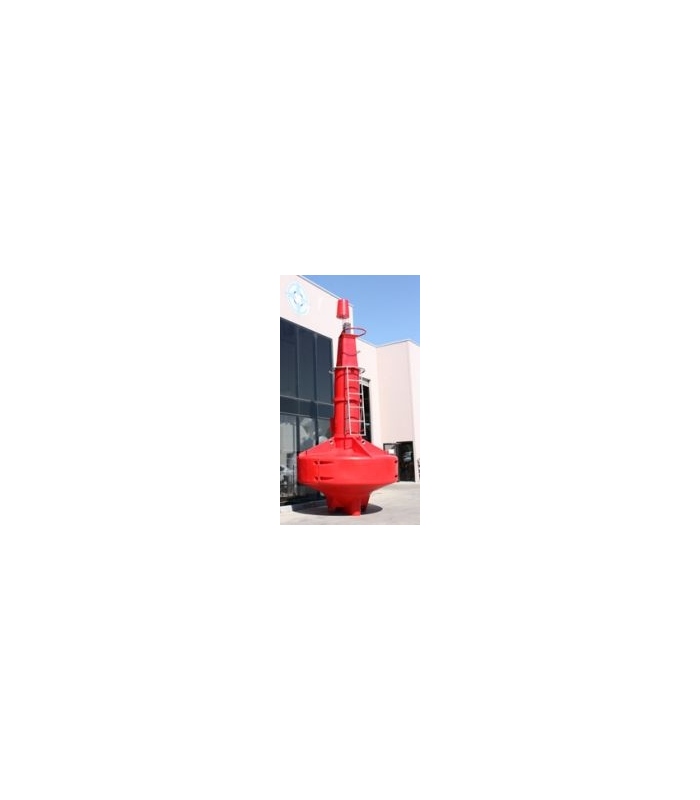

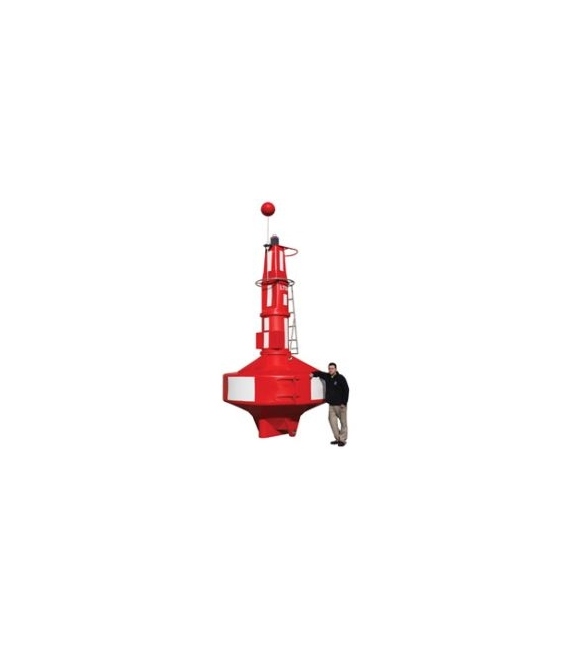

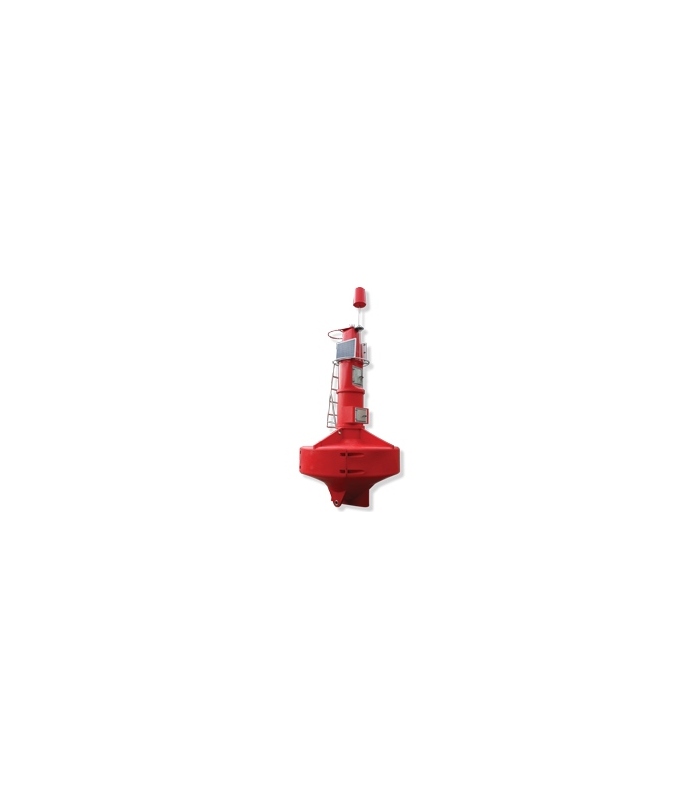

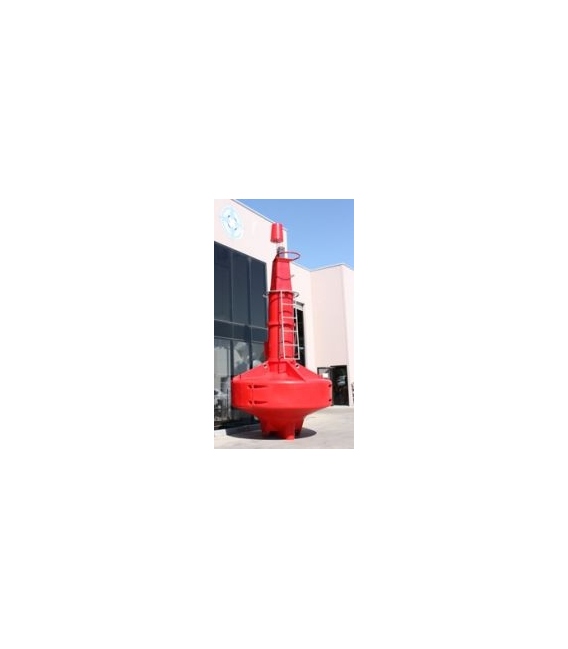

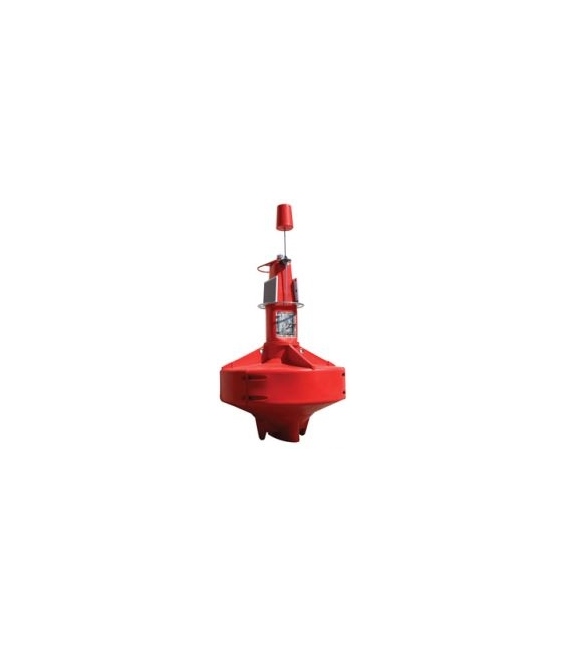

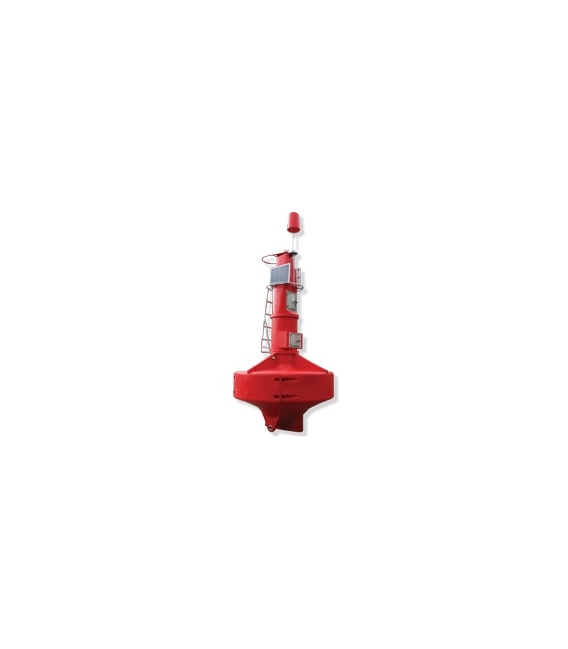

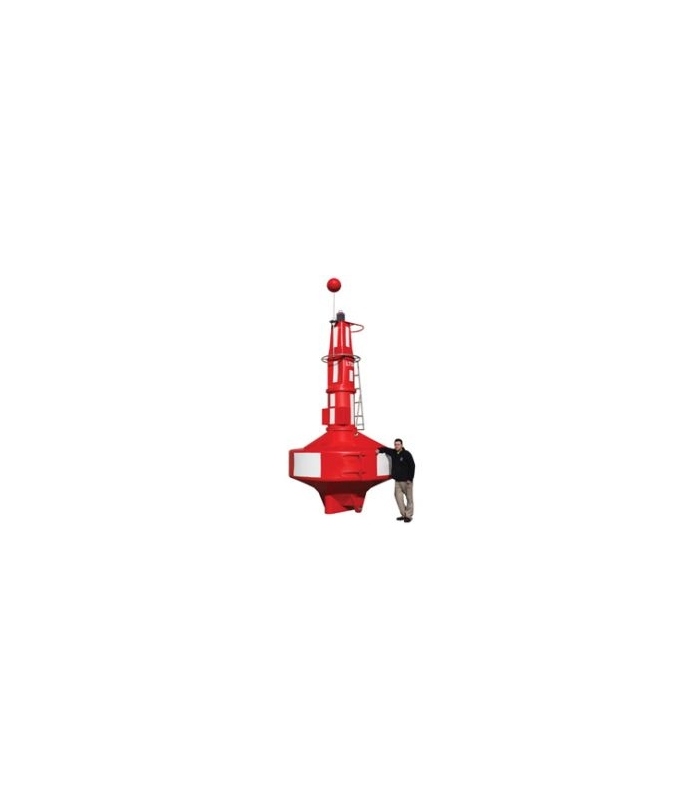

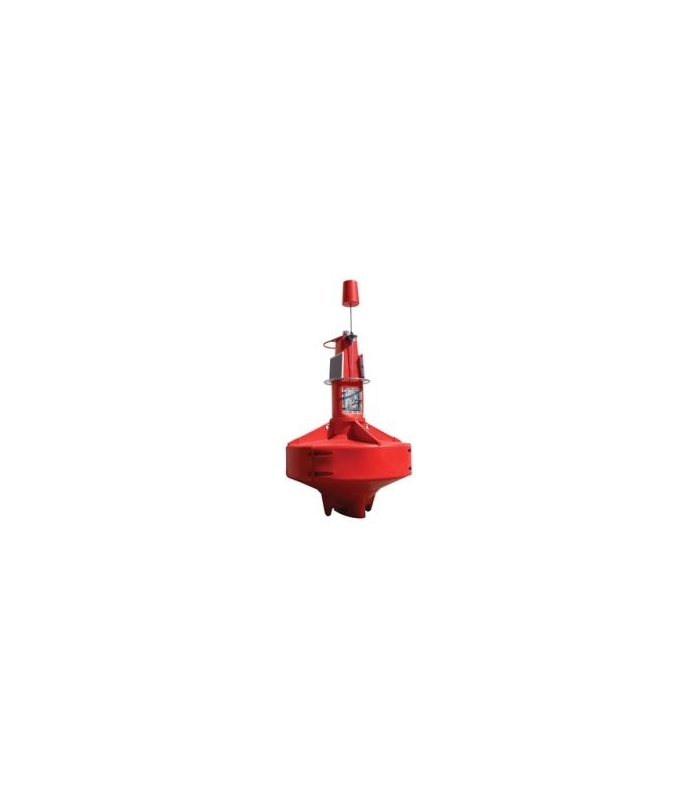

The Atlantic-2600 is a 2.6mtr diameter navigation buoy designed for offshore port and coastal applications.

The buoy is rotationally-moulded by Sealite from UV-stabilized virgin polyethylene, and has a 2.6mtr float diameter and 4.1mtr lantern focal height.

The Atlantic-2600 is built in a 5-part modular design and can be setup in any IALA recommended assembly.

Twin lifting and mooring eyes are interconnected by stainless steel tie bars through the hull structure – offering enormous strength and superior longevity of the navaid.

The Atlantic buoy is the only buoy in its class to offer a large 2.6mtr diameter float section without the incorporation of a central mooring post. This provides enormous user benefits, including;

  • Faster, easier to assemble – the Atlantic-2600 buoy is delivered almost ready to deploy
  • Lightweight – up to 60% lighter than competitor models
  • Single, rotationally-moulded main float section
  • All stainless steel fittings

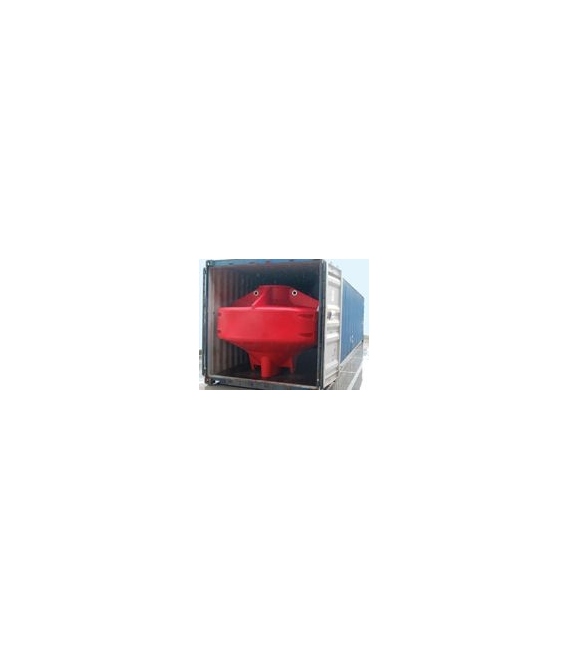

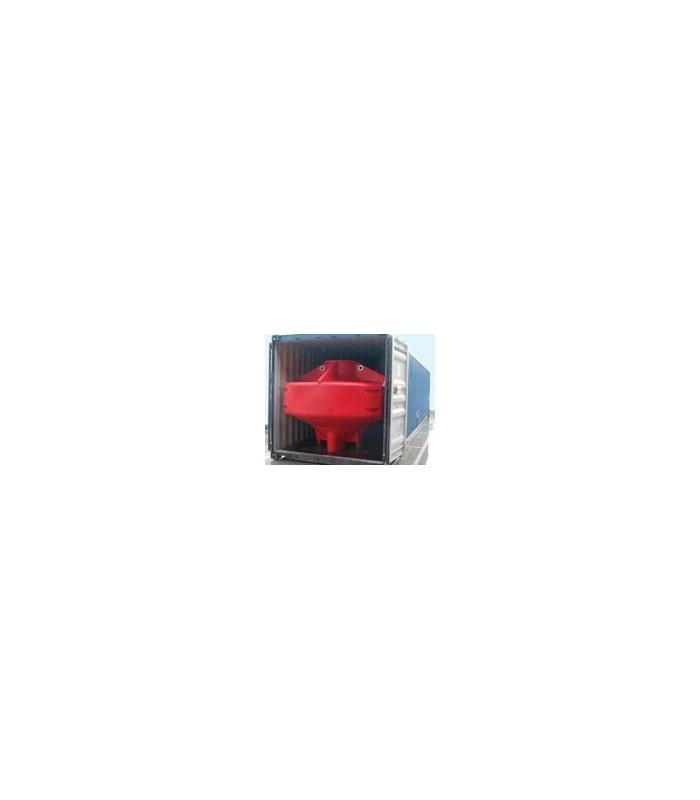

The hull section of the Atlantic-2600 has detachable side panels that are designed to be removed during transport, allowing the buoy to be conveniently transported in a shipping container. This provides the benefits of an extraordinarily large float section, without the need for a heavy, steel mooring-post.

The following downloads are availableDownload
Product Specifications [ download 891 KB ]
Purchase Specification [ download 14 KB ]

Features of the Sealite ATLANTIC-2600

  • IALA top mark, internal radar reflector, guard rail & convenient tether points
  • 316-grade stainless steel ladder & grab rail, & additional payload
  • Made from strong, durable UV-stabilized virgin polyethylene - rotationally-moulded to 18mm wall thickness (float section)
  • Internal tie-bars to interconnect lifting & mooring points
  • Non-slip deck
  • Innovative guidance keel & twin mooring points

Advantages of the Sealite ATLANTIC-2600

  • Able to be transported globally in a standard shipping container
  • 2.6mtr diameter buoy with up to 4.1mtr focal height
  • High visibility red, green, white or yellow as per IALA Recommendations
  • Internal redundant buoyancy system - excellent buoyancy & stability, and easy to deploy & service
  • 316-grade stainless steel, moulded-in tie bars provide outstanding lifting strength
  • No painting ever - low cost, environmentally friendly & recyclable

Options Available for the Sealite ATLANTIC-2600

Mould-in Graphics

images/products/ATLANTIC-2600_stg_opt2_img.jpg

Day Marks

Monitoring System (AIS, GSM)
General Characteristics - Buoys
Available Colours Red, Green, White, Yellow as per IALA Recommendations
Focal Plane Height (mm/inches) ATLANTIC-2600-ET: 4100 / 161 3/8
Total Float Volume (L/US gal) 5610 / 1482
Nominal Freeboard (mm/inches) 780 / 30 3/4
Reserve Buoyancy (kg/lb) 1475 / 3252
Maximum Mooring Load (kg/lb) 1475 / 3252 (IMPORTANT: must lift with 2 points when mooring load is above 1050 / 2315)
Maximum Draft (mm/inches) 960 / 37 3/4
Minimum Freeboard (mm/inches) 510 / 20 1/8
Safe Working Load, 1 point (kg/lb) 1950 / 4300
Safe Working Load, 2 point (kg/lb) 5200 / 11460
Submergence (kg/cm, lb/inch) 54.7 / 306
Visual Area (m2/ft2 4.0 / 13.1
Physical Characteristics - Buoys
Material Rotationally-moulded UV-stabilized virgin polyethylene. 316-grade internal tie bars, lifting & mooring eyes
Wall Thickness (mm/inch) 18 / 3/4 (float section)
Filling Closed-cell polyurethane foam (float section)
Ballast (kg/lb) 400 / 882 internal concrete
Height (mm/inch) ATLANTIC-2600: 4120 / 162 1/4. ATLANTIC-2600-ET: 5020 / 197 5/8
Width (mm/inch) 2600 / 102 3/8
Mass (kg/lb) 970 / 2138
Radar Reflector Echomax
Life Expectancy >20 years
Certifications
Quality Assurance ISO9001:2008
Intellectual Property
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty
Warranty 5 years
