Sealite SLB700 - 700mm dia. Marker Buoy
*** Please e-mail us @ [email protected] for pricing & availability.
More info
Sealite SLB700 - 700mm dia. Marker Buoy

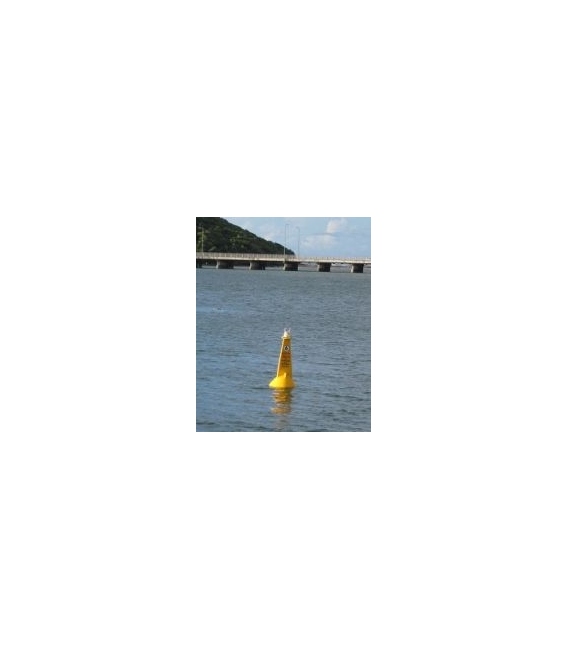

The SLB700 is a short-range buoy ready for immediate installation. Typical applications include day and night channel, speed zone, restricted area marking and aquaculture.
The SLB700 is extremely long-lasting, and is moulded in strong, durable, UV-stabilized polyethylene. A large mooring chain attachment point accommodates a 16mm shackle or 12mm silver rope.
The SLB700 incorporates an interconnected mooring and lifting eye for additional strength and flexibility in installation.
The top section has 3 threaded studs, moulded into the buoy to enable easy mounting of either the SL15, SL60 or SL70 1-3nm+ solar lights.
The SLB700 can be economically shipped around the globe, with approximately 105pcs and 210pcs being packed in 20ft and 40ft shipping containers respectively.
| The following downloads are available | Download |
|---|---|
| Product Specifications | [ download 1.1 MB ] |
Features of the Sealite SLB700
- Rotationally-moulded to 7mm wall thickness
- Interconnected mooring & lifting eye for additional strength
- Stainless steel mooring bush
- Made from strong, durable UV-stabilized virgin polyethylene
- Foam filled with closed-cell polyurethane
- Large mooring chain attachment point accommodates 16mm shackle or 12mm silver rope
Advantages of the Sealite SLB700
- High visibility red, green, white or yellow as per IALA Recommendations
- Range of mooring equipment & chain available
- Excellent buoyancy & stability

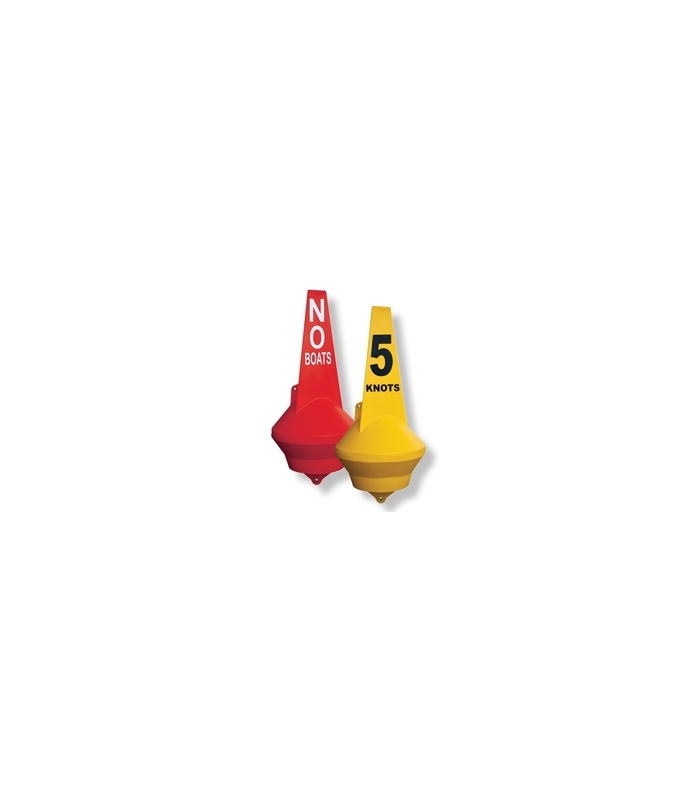

- Mould-in graphics to suit customer requirements
- Environmentally friendly & recyclable
|
General Characteristics - Buoys
|
|
| Available Colours | Red, Green, White, Yellow as per IALA Recommendations |
| Focal Plane Height (mm/inches) | 1305 / 51 3/8 |
| Total Float Volume (L/US gal) | 170 / 45 |
| Nominal Freeboard (mm/inches) | 408 / 16 |
| Reserve Buoyancy (kg/lb) | 60 / 132 |
| Maximum Mooring Load (kg/lb) | 60 / 132 |
| Maximum Draft (mm/inches) | 470 / 18 1/2 |
| Minimum Freeboard (mm/inches) | 160 / 6 1/4 |
| Safe Working Load, 1 point (kg/lb) | 135 / 298 |
| Submergence (kg/cm, lb/inch) | 3.8 / 21.6 |
|
Physical Characteristics - Buoys
|
|
| Material | Rotationally-molded UV-stabilized virgin polyethylene |
| Wall Thickness (mm/inch) | 7 / 1/4 |
| Filling | Closed-cell polyurethane foam |
| Ballast (kg/lb) | 20 / 44 internal concrete |
| Height (mm/inch) | 1510 / 59 3/8 |
| Width (mm/inch) | 700 / 27 1/2 |
| Mass (kg/lb) | 38 / 84 |
| Life Expectancy | Up to 12 years |
|
Certifications
|
|
| Quality Assurance | ISO9001:2008 |
|
Intellectual Property
|
|
| Trademarks | SEALITE® is a registered trademark of Sealite Pty Ltd |
|
Warranty
|
|
| Warranty | 1 year |
