Sealite SLB1250 - 1250mm dia. Navigation Buoy

For the latest information on prices and availability please contact us on: (800) 596 7245 or sales@mdnautical.com

The SLB1250, 1250mm dia. Navigation Buoy, has proven its superior performance in many parts of Australia and around the world for long-range river and sea navigation.

The base is moulded in one-piece, strong, coloured, durable polyethylene – filled with closed-cell polyurethane and UV-stabilized for resistance to sunlight.

The strong, lightweight polyethylene buoy top is moulded in standard IALA high visibility colours and shapes to suit a range of installation requirements.

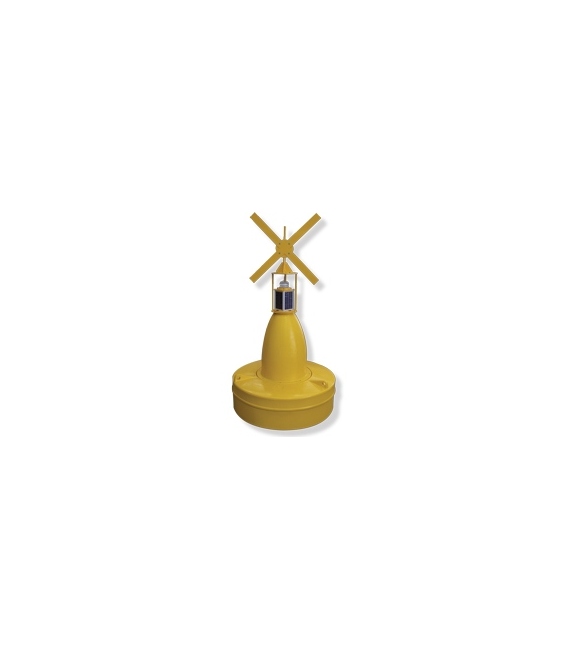

For superior night visibility, the SLB1250 navigation buoy may be fitted with a range of Sealite solar LED marine lanterns up to 5nm+.

Brass inserts provide a secure mounting for top, tower and signs. A 316-grade stainless steel eyebolt passes through the base providing a strong mooring chain attachment point.

In addition, all hardware and fittings are 316-grade stainless steel.

The following downloads are availableDownload
Product Specifications [ download 1.4 MB ]
Purchase Specification [ download 16 KB ]
Product brochure Espanõl (Spanish language version) [ download 1.3 MB ]

Features of the Sealite SLB1250

  • Made from stong, durable UV-stabilized virgin polyethylene
  • Rotationally-moulded to 9mm (float section) & 7mm (top section) wall thickness
  • 316-grade stainless-steel mooring post with 18mm mooring eye
  • Float section foam filled with closed-cell polyurethane
  • Optional top marks and lights available

Advantages of the Sealite SLB1250

  • Single piece float
  • Complete unit - ready for immediate installation

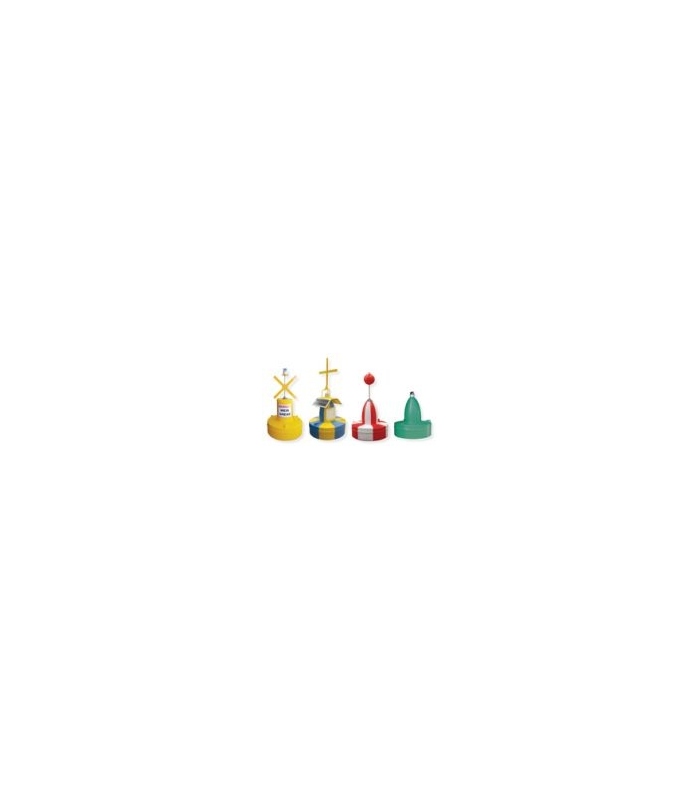

  • High visibility red, green, white or yellow as per IALA Recommendations
  • 316-grade stainless steel eye bolt for strong mooring chain attachment point
  • Excellent buoyancy & stability
  • Environmentally friendly & recyclable

Options Available for the Sealite SLB1250

Mould-In Graphics

External Ballast

Radar Reflector
General Characteristics - Buoys
Available Colours Red, Green, White, Yellow as per IALA Recommendations
Focal Plane Height (mm/inches) 1180 / 46 1/2
Total Float Volume (L/US gal) 610 / 161
Nominal Freeboard (mm/inches) 335 / 13 1/8
Reserve Buoyancy (kg/lb) 155 / 342
Maximum Mooring Load (kg/lb) 155 / 342
Maximum Draft (mm/inches) 675 / 26 2/3
Minimum Freeboard (mm/inches) 210 / 8 1/3
Submergence (kg/cm, lb/inch) 12.5 / 70
Visual Area (m2/ft2 0.8 / 8.6
Physical Characteristics - Buoys
Material Rotationally-moulded UV-stabilized virgin polyethylene. 316-grade stainless steel mooring pole
Wall Thickness (mm/inch) 9 / 3/8 (float section). 7 / 1/4 (top section)
Filling Closed-cell polyurethane foam (float section)
Ballast (kg/lb) 30 / 66 external counter-weight (optional)
Height (mm/inch) 1180 / 46 1/2
Width (mm/inch) 1250 / 49 1/4
Mass (kg/lb) 70 / 154
Life Expectancy Up to 12 years
Certifications
Quality Assurance ISO9001:2008
Intellectual Property
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty
Warranty 1 year
