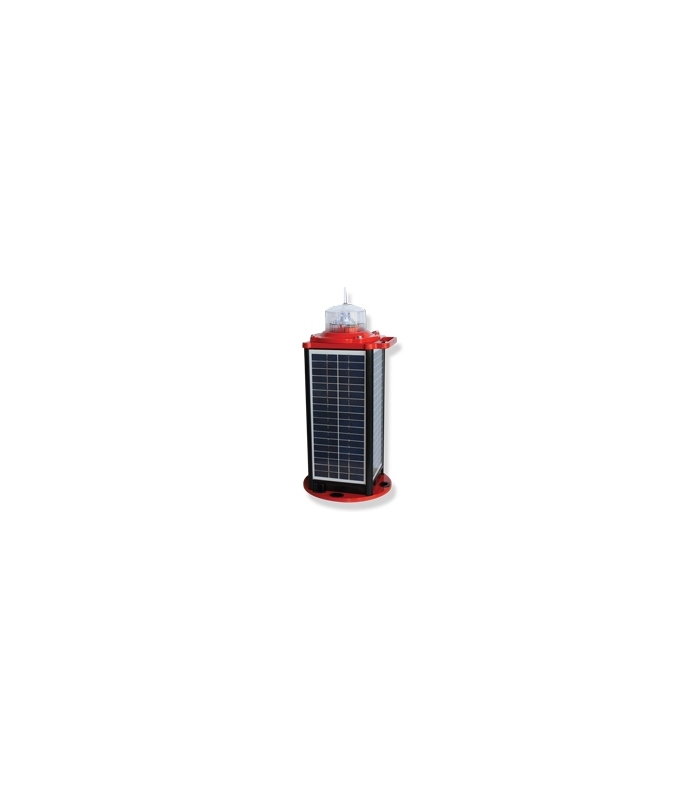

The SLC410 has a large power supply consisting of four 5watt panels (20 watt total) making this model perfect for use in lower sunlight areas or where more demanding duty cycles are required. The four (4) premium-grade solar modules are integrated into the assembly, and mounted to collect sunlight at all angles.
The base and top of the SLC410 are made from cast aluminium, subject to 7-stage powder-coating in high visibility IALA colours for daytime recognition, with UV-stabilised rubber corners and gaskets providing a superior IP68 waterproof rating – the best in the industry. The SLC410 has a handle incorporated into the chassis for safe lifting.

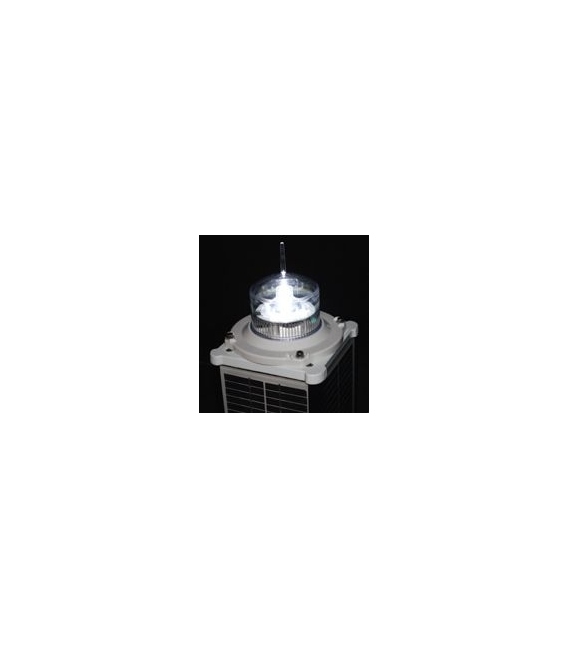

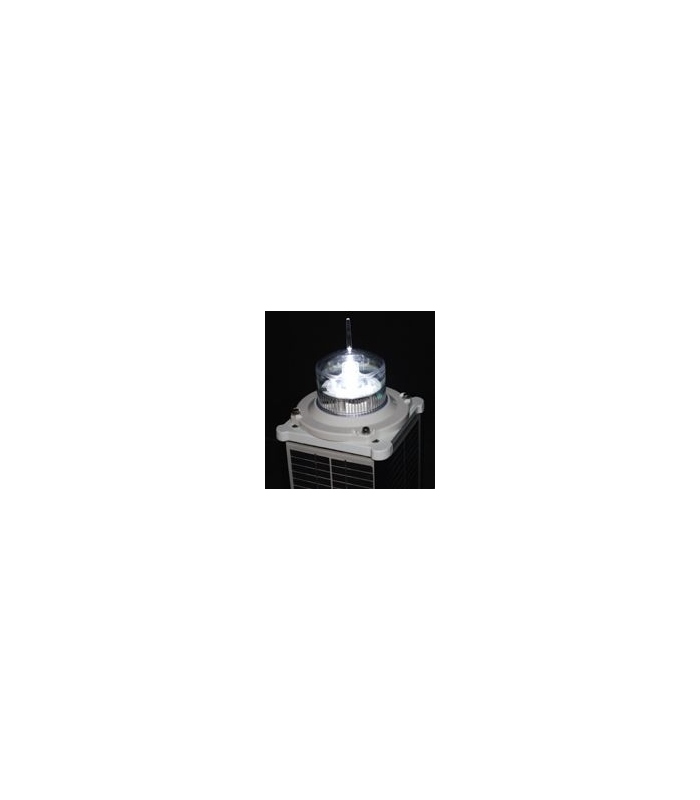

The tough, polycarbonate lens is specifically designed for use with LEDs and incorporates an environment-friendly spike – deterring unwelcome bird life. The lens design also ensures that vessel operators clearly see the light from above when passing the AtoN.

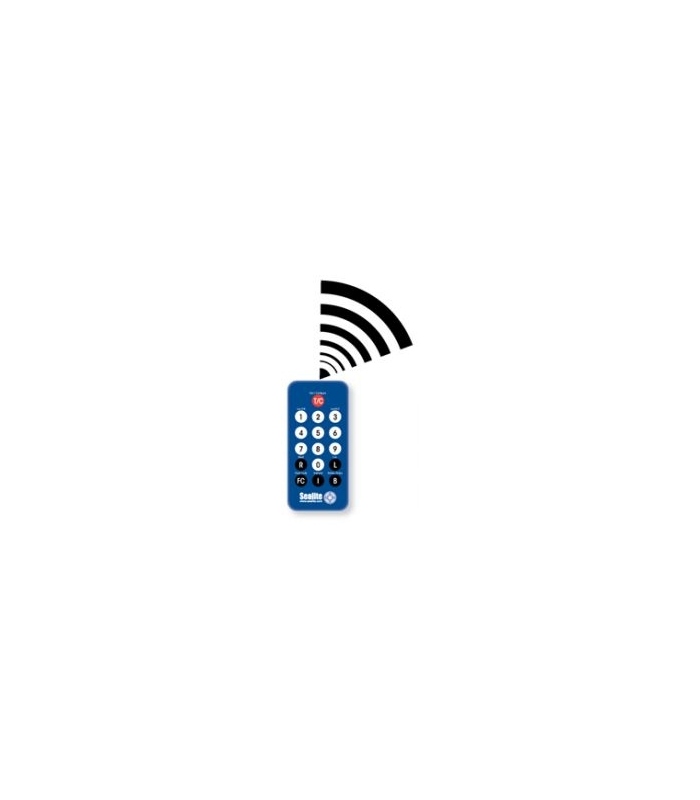

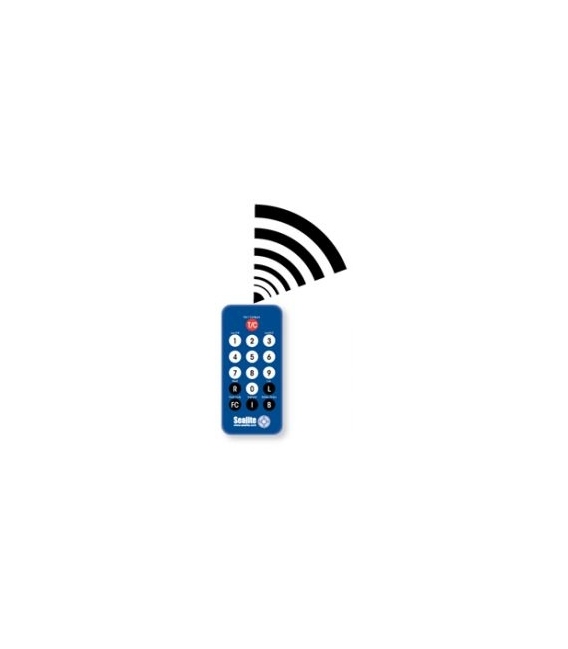

The SLC410 comes with standard rotary switches for convenient in-field changes of flash characters and intensity selection. In addition, the unit may be provided with an IR programmer for added functionality. Programmable features include; flash code adjustment, battery diagnostics and lux adjustment.
GPS Synchronisation NOW fitted as Standard
Sealite has utilised the latest advancements in GPS technology to develop an internal synchronisation system that can be incorporated into the SLC410 lantern. Using overhead satellites, lights set to the same flash pattern will flash in unison.
When lanterns flash in synchronisation they can be clearly distinguished from other navaids and confusing background lighting – ideal for rivers, marina entrances, channel marking and aquaculture.
The following downloads are available | Download |
---|---|
Product Specifications | [ download 1.2 MB ] |
Purchase Specification | [ download 17 KB ] |
Light Characteristics
|
|
Light Source | 1 LED |
Available Flash Colors | Red, Green, White, Yellow, Blue |
Maximum Available Intensity | R- 121cd. G- 88cd. W- 176cd. Y- 95cd |
Visible Range | 3-5nm + |
Horizontal Output | 360 degrees |
Vertical Divergence | 7 degrees |
Available Flash Characteristics | Up to 256 IALA recommended (user-adjustable) |
Intensity Adjustments | Adjustable in 25% increments |
LED Life Expectancy | >100,000 hours |
Electrical Characteristics
|
|
Current Draw | 120mA (at advertised intensity) |
Night Off Current | 2.5mA (eclipse) |
Day Off Current | 0.6mA |
Circuit Protection | Integrated |
Nominal Voltage | 12v |
Autonomy | >110 days (14 hour darkness, 12.5% duty cycle) |
Temperature Range | -40 to 80°C |
Solar Characteristics
|
|
Solar Module Type | Multicrystalline |
Output | 20 (4 x 5watt) |
Solar Module Efficiency | 14% |
Maximum Power Point Votage | 17.4v |
Charging Regulation | Microprocessor controlled |
Power Supply
|
|
Battery Type | SLA (Sealed Lead Acid) |
Battery Capacity | 24Ah |
Nominal Voltage | 12v |
Battery Service Life | Average 5 years |
Physical Characteristics - Lights
|
|
Body Material | 7-stage powder-coated aluminium chassis with UV-stabilised rubber corners & gaskets |
Lens Material | LEXAN® Polycarbonate - UV-stabilised |
Lens Diameter (mm/inches) | 98 / 3 7/8 |
Lens Design | Single LED optic |
Mounting | 3 & 4 hole bolt pattern on 200mm OD base |
Height (mm/inches) | 528 / 20 3/4 |
Width (mm/inches) | 233 / 9 1/5 |
Mass (Kg/lbs) | 13.9 / 30 1/2 |
Certifications
|
|
CE | EN61000-6-3:1997, EN61000-6-1:1997 |
Quality Assurance | ISO9001:2008 |
Waterproof | IP68 |
Intellectual Property
|
|
Trademarks | SEALITE® is a registered trademark of Sealite Pty Ltd |
Warranty
|
|
Warranty | Full 3 years |
