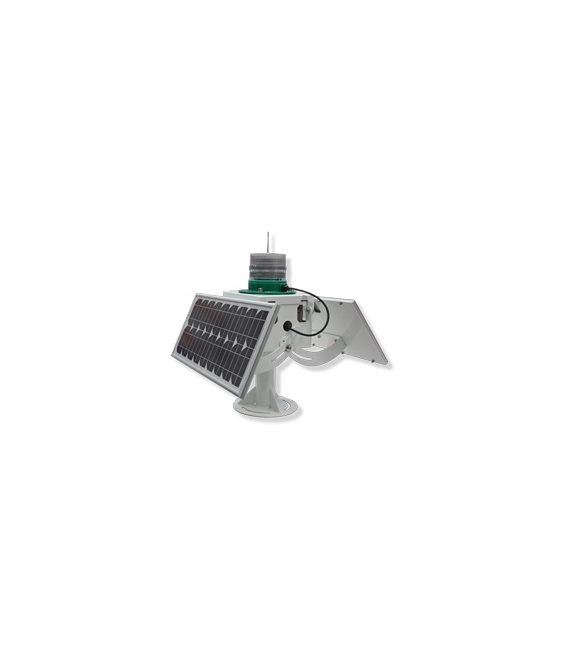

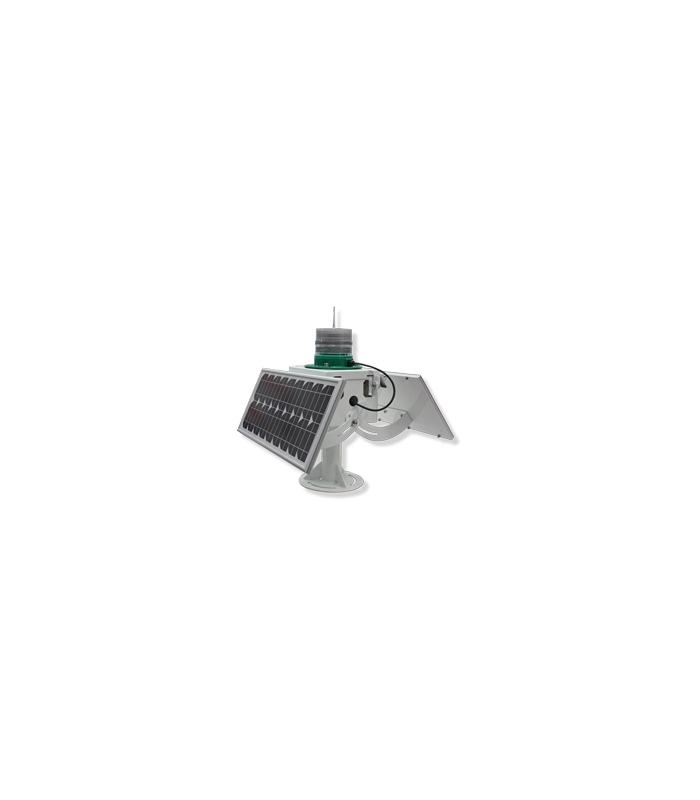

The SL125/C Type 1 Complete Lantern Assembly provides a complete solution for visual navigation requirements.
The SL125/C Type 1 offers unique flexibility, and is available in varying configurations to suit a range of installation and intensity requirements.
The powder-coated 3mm aluminium housing is laser-cut, and robotically folded for guaranteed precision every time.
One or two 20watt solar module(s) are fitted as standard, and the unit can be readily equipped with ancillary equipment.
A modular design, all components of the system are replaceable in the unlikely event of damage to the unit. The battery is accessed through the top of the lantern assembly, via a robust swing-hinge.
Access to the user-adjustable flash and intensity settings is also achieved through this design. The solar modules are extendable to 51 degrees as standard, with the option to increase in equatorial regions.
Product Specifications | [ download 5 MB ] |
Purchase Specification | [ download 17 KB ] |
Product brochure Espanõl (Spanish language version) | [ download 5 MB ] |
Light Characteristics
|
|
Light Source | SL125-1 or SL125-2 Series LED Lantern |
Available Flash Colors | Red, Green, White, Yellow, Blue |
Maximum Available Intensity | See downloadable PDF |
Visible Range | 5-9nm + |
Horizontal Output | 360 degrees |
Vertical Divergence | 9 degrees |
Reflector Type | Omnidirectional 360° LED Reflector (US Pat. No. 6,667,582. AU Pat. No. 778,918) |
Available Flash Characteristics | Up to 256 IALA recommended (user adjustable) |
Intensity Adjustments | Adjustable in 25% increments |
LED Life Expectancy | >100,000 hours |
Electrical Characteristics
|
|
Current Draw | Refer to Sealite Power Calculator |
Circuit Protection | Reverse polarity |
Nominal Voltage | 12v |
Autonomy | >20 days (14 hour darkness, 12.5% duty cycle) |
Temperature Range | -40 to 80°C |
Solar Characteristics
|
|
Solar Module Type | Multicrystalline |
Output | 1x 20watt (SL125/C-1) or 2x 20watt (SL125/C-2) |
Solar Module Efficiency | 14% |
Charging Regulation | Microprocessor controlled |
Power Supply
|
|
Battery Type | SLA (Sealed Lead Acid) |
Battery Capacity | 26Ah |
Nominal Voltage | 12v |
Battery Service Life | Average 5 years |
Physical Characteristics - Lights
|
|
Body Material | 7-stage powder-coated aluminium |
Lens Material | LEXAN® Polycarbonate - UV-stabilised |
Lens Diameter (mm/inches) | 150 / 5 7/8 |
Lens Design | External optics with interior flute design |
Mounting | 200mm OD base pattern |
Height (mm/inches) | From 665 / 26 1/4 |
Width (mm/inches) | 656 / 25 3/4 |
Mass (Kg/lbs) | From 18 / 39 5/8 |
Certifications
|
|
CE | EN61000-6-3:2001. EN61000-6-1:2001. EN55022. EN61000-4-2:1995. EN61000-4-3:2002. USCG spec HSCG23-05-R-E43013 including change 1 |
Quality Assurance | ISO9001:2008 |
Waterproof | IP68 light-head. IP66 battery compartment |
Intellectual Property
|
|
Patents | US Pat. No. 6,667,582. Au. Pat. No. 778,918 |
Trademarks | SEALITE is a registered trademark of Sealite Pty Ltd |
Warranty
|
|
Warranty | Full 3 years |
