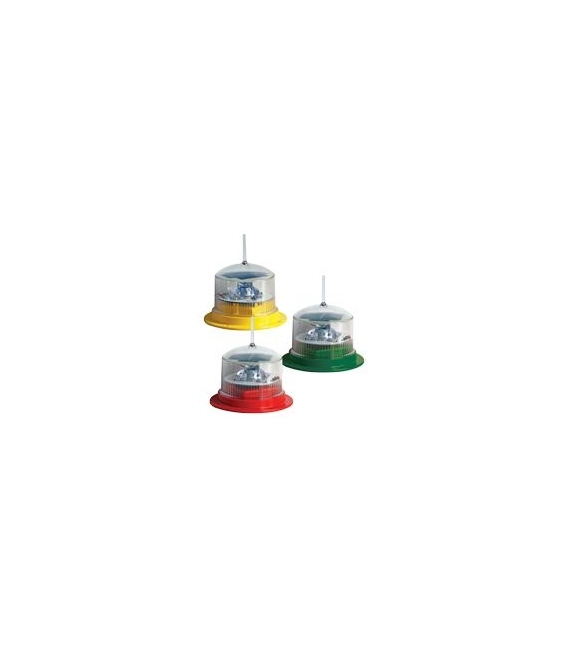

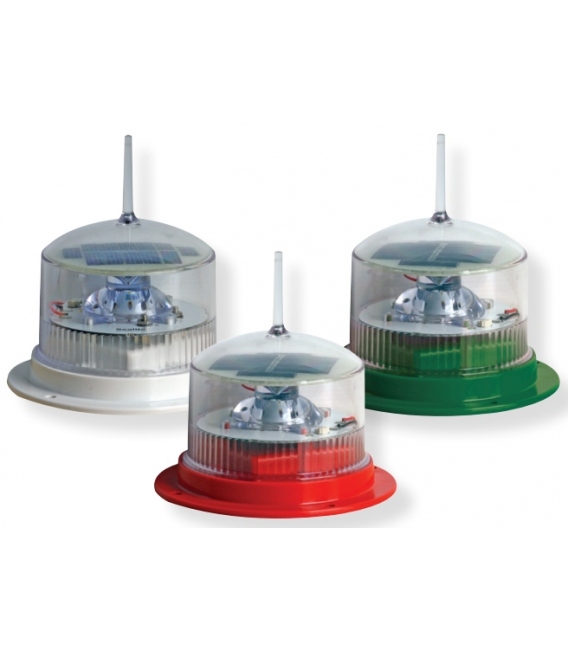

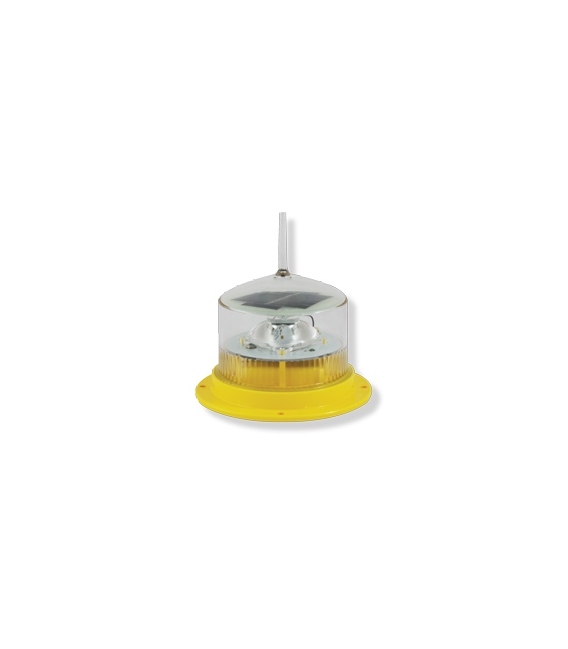

Sealite SL15 1-2nm+ Solar Marine Lantern
*** Please e-mail us @ [email protected] for pricing & availability.
Sealite SL15 1-2nm+ Solar Marine Lantern

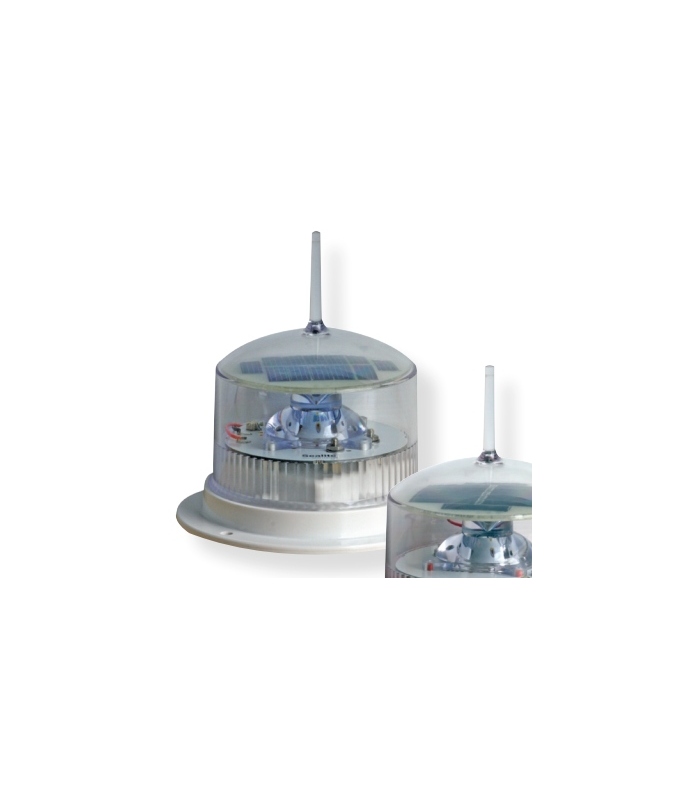

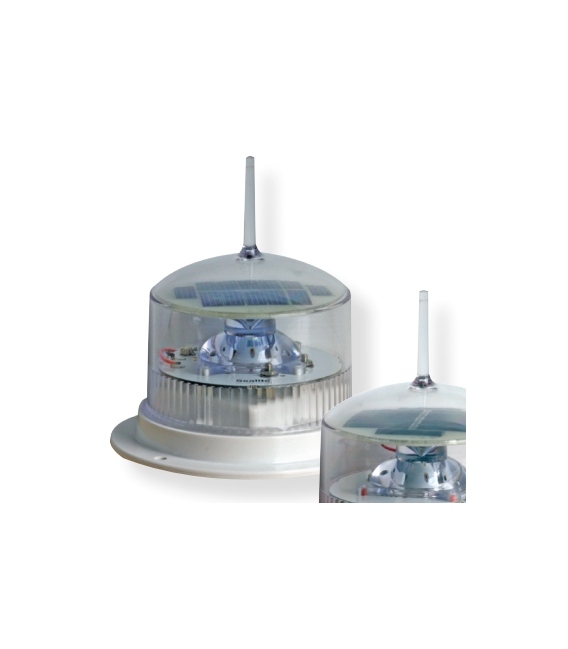

The Sealite SL15 1-2nm+ compact LED light is exceptional value and incorporates some of the most advanced technology available. In the tradition of Sealite lanterns, the SL15 is designed to be maintenance-free and have a service life of over 5 years.
The SL15 can be installed in minutes and requires no operator intervention. The SL15 has a rotary switch to allow users to change the flash character of the light without the need for special tools or programmers.
During daylight hours the solar module will charge the battery, and the lantern will automatically begin operation at dusk – once the ambient light threshold drops sufficiently.
The SL15 features Sealite's Single LED Optic which boasts exceptional power to light output efficiency. The tough outer polycarbonate lens incorporates an environment-friendly spike – deterring unwelcome bird life.
The internally housed battery is user-replaceable after years of reliable service.
The unit is sealed using advanced UV-sealing, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
Optional ON/OFF Switch
The SL15 is also available with an optional ON/OFF switch for temporary installations such as worksites.
| The following downloads are available | Download |
|---|---|
| Product Specifications | [ download 1008 KB ] |
| Product brochure Espanõl (Spanish language version) | [ download 1010 KB ] |
Features of the Sealite SL15
- Single LED optic
- Internal user-adjustable flash settings
- Internal solar module
- Internal user-replacable battery in sealed compartment
- Lens and base moulded from UV-stabilised LEXAN® polycarbonate
- Automatic night activation & bird deterrent spike
Advantages of the Sealite SL15

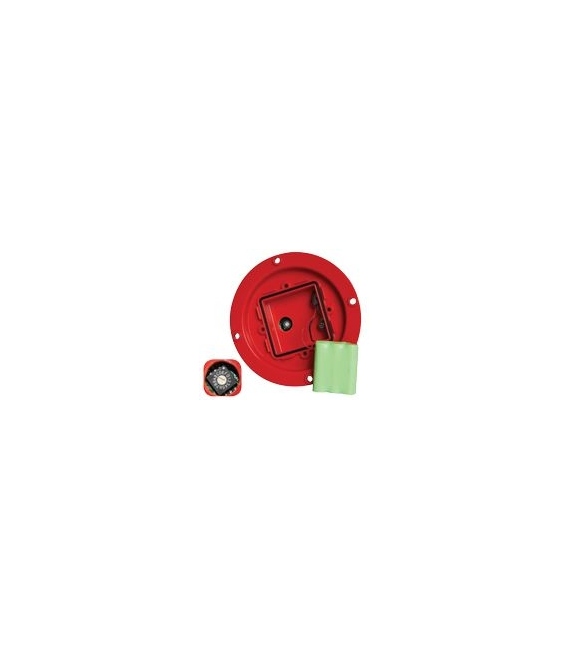

- User-adjustable flash characters via switch located in sealed battery compartment

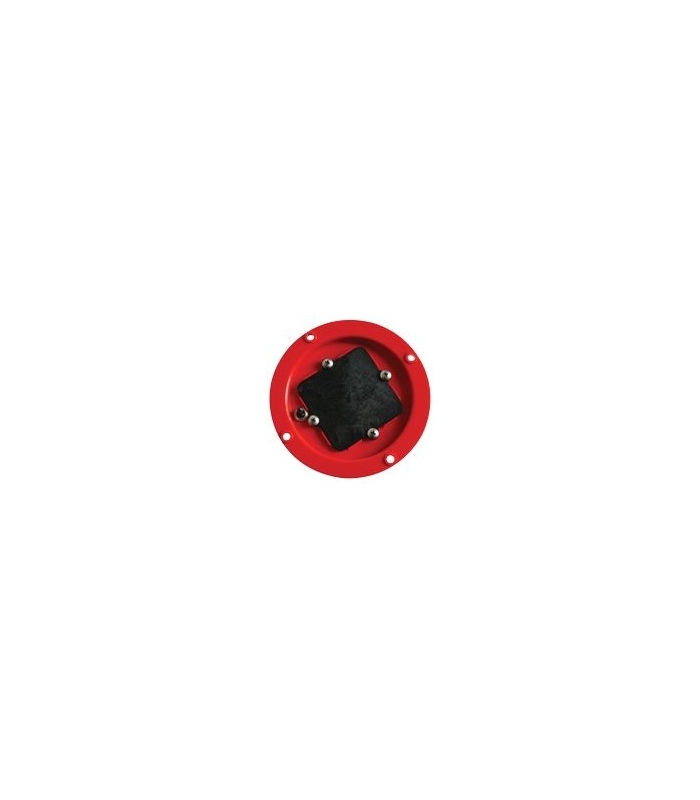

- User-replaceable battery in sealed battery compartment
- NiMH battery for long service life & wide temperature range
- Completely sealed & self-contained using advanced UV-sealing
- Installs in minutes & operates maintenance free for up to five years
- IP68 waterproof & full 3 year warranty
|
Light Characteristics
|
|
| Light Source | 1 LED |

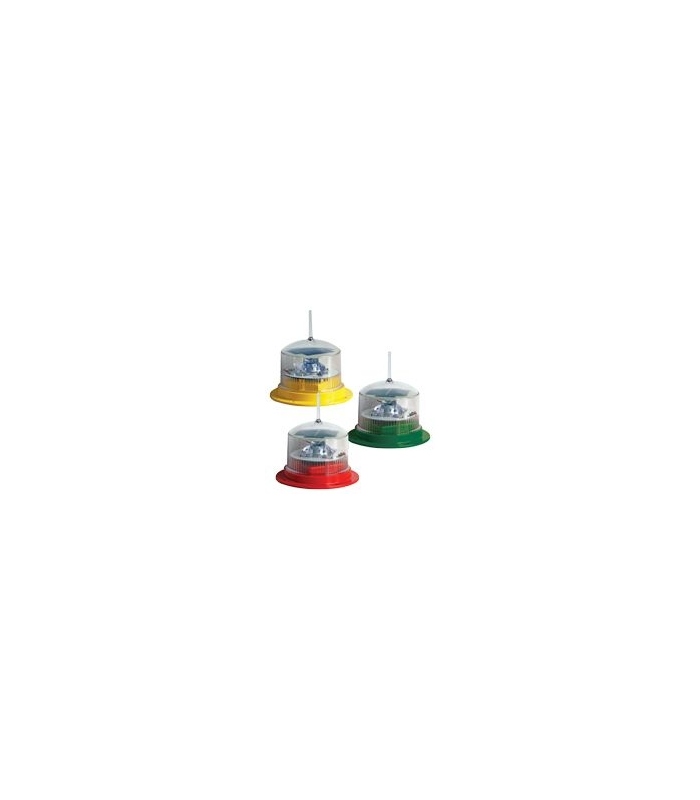

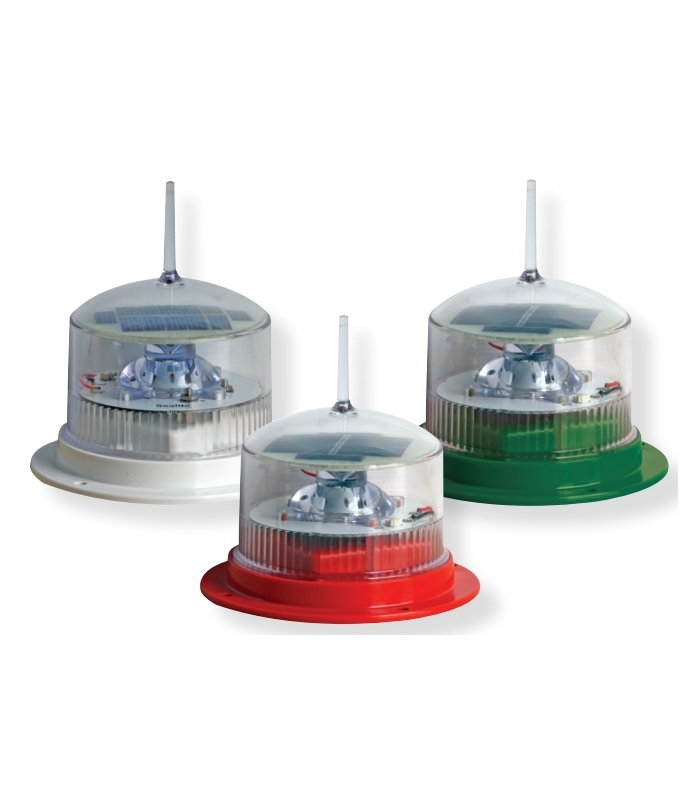

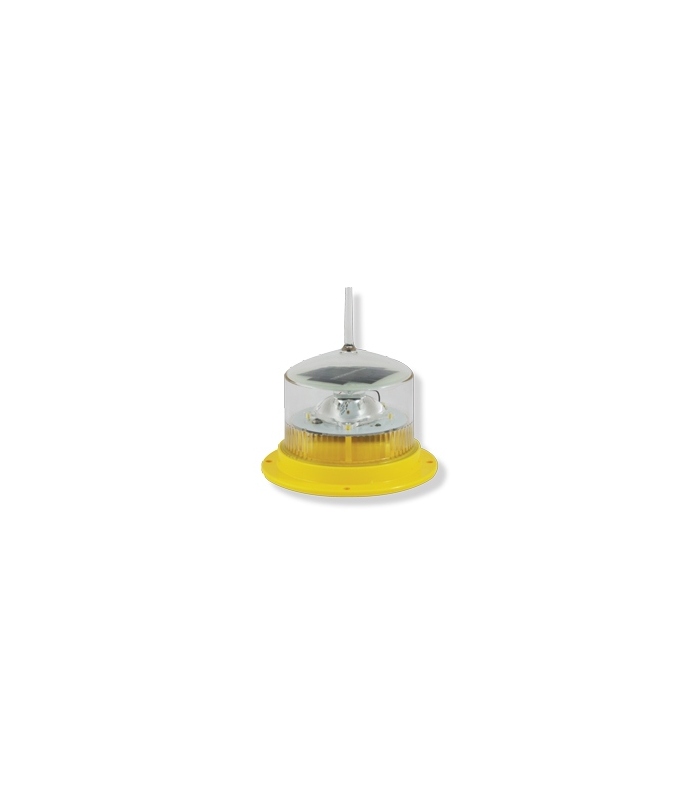

| Available Flash Colors | Red, Green, White, Yellow, Blue |
| Maximum Available Intensity | R- 6.2cd G- 7.6cd W- 6.8cd Y- 5.9cd |
| Visible Range | 1-2nm + |
| Horizontal Output | 360 degrees |
| Vertical Divergence | 7 degrees |
| Reflector Type | Single LED optic |
| Available Flash Characteristics | 16 user-adjustable IALA flash characteristics (other flash patterns available on request) |
| Intensity Adjustments | 32 automatic step-down settings based on power demand of flash code selection |
| LED Life Expectancy | >100,000 hours |
|
Electrical Characteristics
|
|
| Current Draw | Refer to Sealite Power Calculator |
| Circuit Protection | Integrated |
| Nominal Voltage | 3.6v |
| Autonomy | >50 days (14 hour darkness, 12.5% duty cycle) |
| Temperature Range | -40 to 80°C |
|
Solar Characteristics
|
|
| Solar Module Type | Multicrystalline |
| Output | 0.45watt |
| Solar Module Efficiency | 14% |
| Charging Regulation | Microprocessor controlled |
|
Power Supply
|
|
| Battery Type | High grade NiMH - Environmentally friendly |
| Battery Capacity | 1.6Ah |
| Nominal Voltage | 3.6v |
| Battery Service Life | Average 5 years |
|
Physical Characteristics - Lights
|
|
| Body Material | LEXAN® Polycarbonate - UV-stabilised |
| Lens Material | LEXAN® Polycarbonate - UV-stabilised |
| Lens Diameter (mm/inches) | 98 / 3 7/8 |
| Lens Design | Single LED optic |
| Mounting | 4 x 6mm mounting holes |
| Height (mm/inches) | 141 / 5 1/2 |
| Width (mm/inches) | 136 / 5 3/8 |
| Mass (Kg/lbs) | 0.5 / 1 1/8 |
|
Certifications
|
|
| CE | EN61000-6-3:1997, EN61000-6-1:1997 |
| Quality Assurance | ISO9001:2008 |
| Waterproof | IP68 |
|
Intellectual Property
|
|
| Patents | US Pat. No. 6,667,582. AU Pat. No. 778,918 |
| Trademarks | SEALITE® is a registered trademark of Sealite Pty Ltd |
|
Warranty
|
|
| Warranty | Full 3 years |
