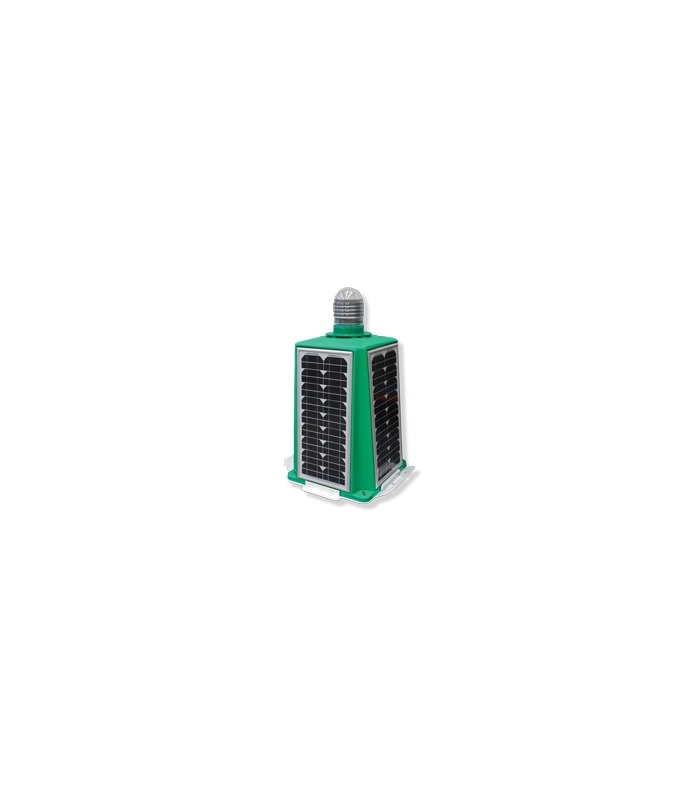

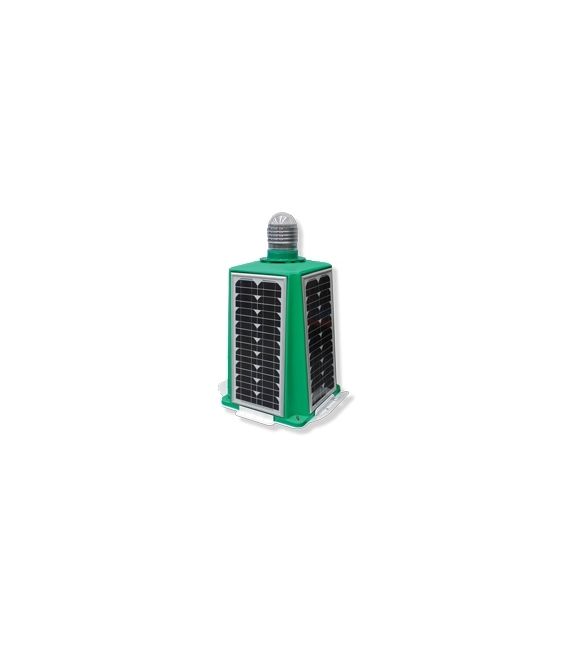

The light boasts a large internal battery compartment, a multiple tiered SL125 LED light-head and 4 premium-grade 20watt solar modules mounted to collect sunlight at all angles.
The SLC600 is moulded from UV-stabilised, virgin polyethylene, providing enormous impact and weather resistance, in addition to high visibility IALA colours.
The tough polycarbonate lens is specifically designed for use with LEDs and also enables vessel operators clearly see the light from above, when passing the AtoN.

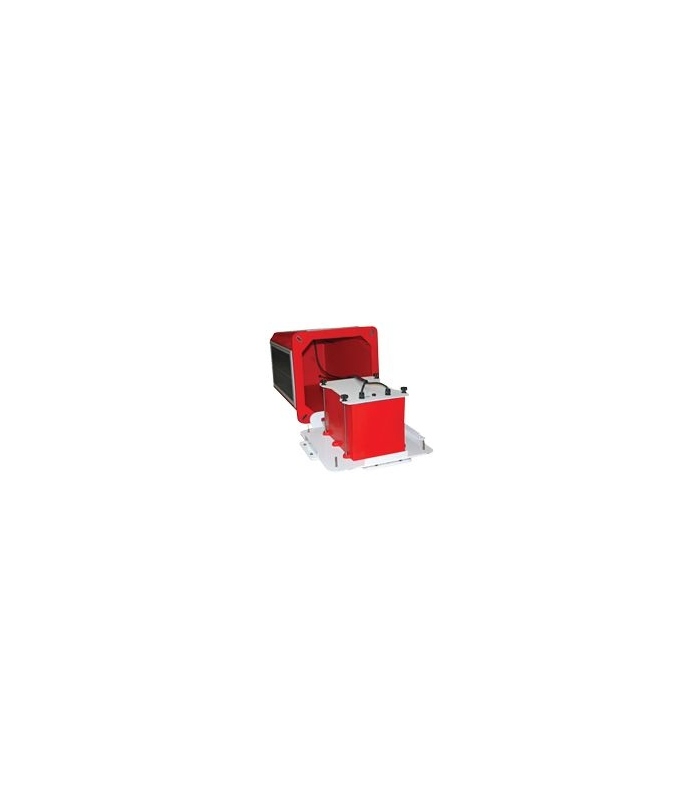

The user-friendly, 2-piece design allows the lantern to be opened for convenient battery inspection or replacement whilst the base remains fixed to the supporting structure.
The SLC600 may be fitted with an optional RF Synchronisation module for short range flash synchronisation. For flash synchronisation of lanterns installed over longer ranges, a GPS module may be fitted.
When lanterns flash in synchronisation they can be clearly distinguished from other navaids and confusing background lighting – ideal for rivers, marina entrances, channel marking and aquaculture.
The SLC600 may also be fitted with GSM Remote Monitoring and Control capabilities – enabling users to access real-time diagnostics data and change lantern settings via cell-phone or PC interface.
AIS integration enables remote monitoring of the SLC600 as well as crucial message 21 information to be broadcast to mariners within the region.
The following downloads are available | Download |
---|---|
Product Specifications | [ download 1.1 MB ] |
Installation Manual | [ download 1.3 MB ] |
Light Characteristics
|
|
Light Source | SL125-4 (144 LED lantern as standard) |
Available Flash Colors | Red, Green, White, Yellow, Blue |
Maximum Available Intensity | R- 860cd, G- 623cd, W- 602cd, Y- 363cd |
Visible Range | 6-9nm + |
Horizontal Output | 360 degrees |
Vertical Divergence | 5 degrees |
Reflector Type | Omnidirectional 360° LED Reflector (US Pat. No. 6,667,582. AU Pat. No. 778,918) |
Available Flash Characteristics | Up to 256 IALA recommended (user adjustable) |
Intensity Adjustments | Adjustable in 25% increments |
LED Life Expectancy | >100,000 hours |
Electrical Characteristics
|
|
Current Draw | Refer to Sealite Power Calculator |
Circuit Protection | Integrated |
Nominal Voltage | 12v |
Autonomy | >20 days (14 hour darkness, 12.5% duty cycle) |
Temperature Range | -40 to 80°C |
Solar Characteristics
|
|
Solar Module Type | Multicrystalline |
Output | 80watts (4 x 20watt) |
Solar Module Efficiency | 14% |
Charging Regulation | Microprocessor controlled |
Power Supply
|
|
Battery Type | SLA (Sealed Lead Acid) |
Battery Capacity | 100Ah |
Nominal Voltage | 12v |
Battery Service Life | Average 5 years |
Physical Characteristics - Lights
|
|
Body Material | Rotationally-moulded UV-stabilised virgin polyethylene |
Lens Material | LEXAN® Polycarbonate - UV-stabilised |
Lens Diameter (mm/inches) | 150 / 5 7/8 |
Lens Design | External optics with interior flute design |
Mounting | 4 x 11mm mounting holes |
Height (mm/inches) | 945 / 37 1/4 |
Width (mm/inches) | 665 / 26 1/4 |
Mass (Kg/lbs) | 60 / 132 1/4 |
Certifications
|
|
CE | EN61000-6-3:1997, EN61000-6-1:1997 |
Quality Assurance | ISO9001:2008 |
Waterproof | IP68 light-head |
Intellectual Property
|
|
Patents | US Pat. No. 6,667,582. AU Pat. No. 778,918 |
Trademarks | SEALITE® is a registered trademark of Sealite Pty Ltd |
Warranty
|
|
Warranty | Full 3 years |
