Sealite SL60 2-3nm+ Solar Marine Lantern
*** Please e-mail us @ [email protected] for pricing & availability.

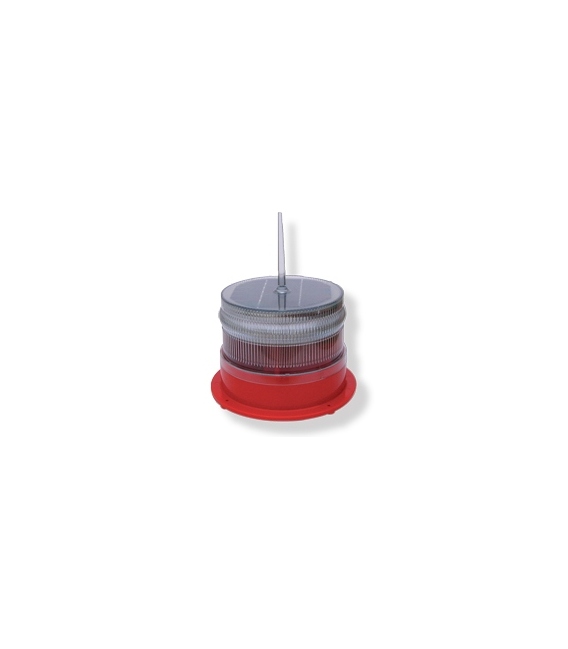

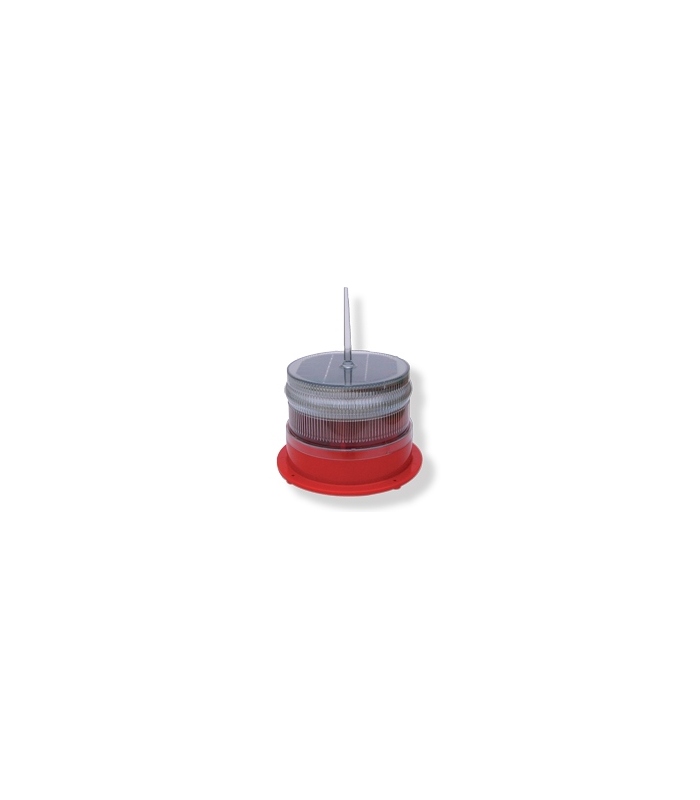

Sealite SL60 2-3nm+ Solar Marine Lantern
The Sealite SL60 is the world’s most popular and versatile 2–3nm+ solar marine light.
Made from tough, durable polycarbonate and using the latest high intensity LEDs, no expense has been spared in the design and development of this lantern.
The SL60 can be installed in minutes, and requires no operator intervention. The flash characters are easily adjusted onsite by the user, and the lantern has a permanent ON/OFF switch for easy storage.
During daylight hours the solar module will charge the battery and the lantern will automatically begin operation at dusk – once the ambient light threshold drops sufficiently.

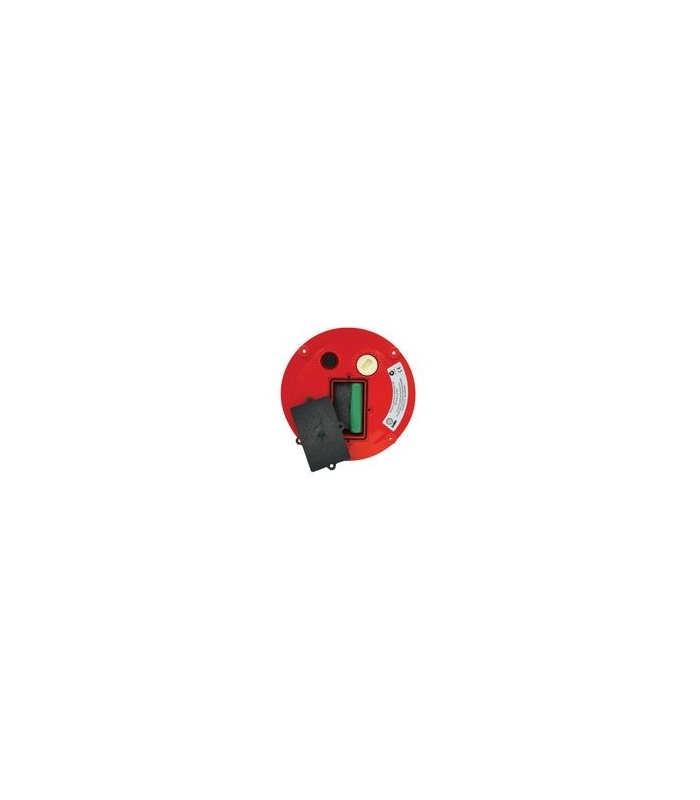

The sealed battery compartment allows the battery to be replaced after years of service – don’t throw the light away at the end of the battery service life.
Optional 200mm OD Base Pattern
The SL60 is available with optional large 200mm OD base pattern to suit installation requirements.
| The following downloads are available | Download |
|---|---|
| Product Specifications | [ download 1.1 MB ] |
| Product brochure Espanõl (Spanish language version) | [ download 1.1 MB ] |
Features of the Sealite SL60
- 6 ultra-high intensity LEDs & large internal solar module
- Internal user-adjustable flash & intensity settings
- LED lens & Sealite's 360º Omnidirectional LED Reflector - increasing the intensity & uniformity of the horizontal light output
- Internal user-replacable battery in sealed compartment
- Automatic night activation
- Bird-deterrent spike
Advantages of the Sealite SL60
- 256 IALA flash patterns user-adjustable without the need for external devices
- User-replaceable battery in sealed battery compartment
- NiMH battery for long service life & wide temperature range
- Installs in minutes and operates maintenance-free for up to five years
- ON/OFF storage switch
- IP68 waterproof & full 3 year warranty
|
Light Characteristics
|
|
| Light Source | 6 ultra-high intensity LEDs |

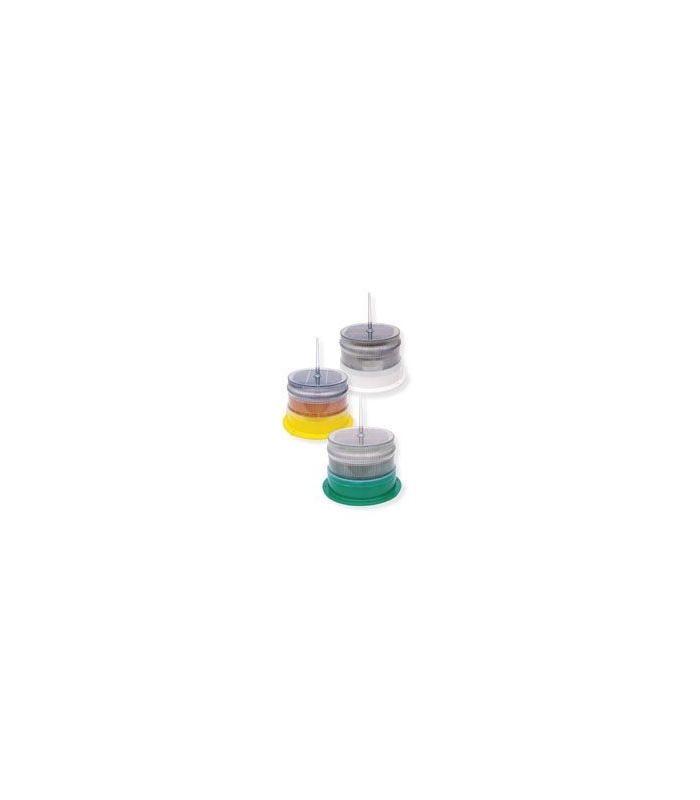

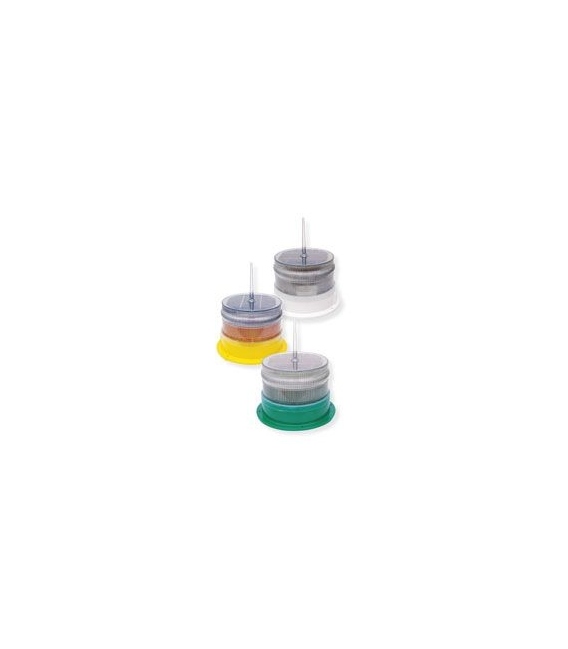

| Available Flash Colors | Red, Green, White, Yellow, Blue |
| Maximum Available Intensity | R- 11.1cd, G- 20.0cd, W- 26.0cd, Y- 10.0cd |
| Visible Range | 2-3nm + |
| Horizontal Output | 360 degrees |
| Vertical Divergence | 9 degrees |
| Reflector Type | Omnidirectional 360° LED Reflector (US Pat. No. 6,667,582. AU Pat. No. 778,918) |
| Available Flash Characteristics | Up to 256 IALA recommended (user adjustable) |
| Intensity Adjustments | Adjustable in 25% increments |
| LED Life Expectancy | >100,000 hours |
|
Electrical Characteristics
|
|
| Current Draw | Refer to Sealite Power Calculator |
| Circuit Protection | Integrated |
| Nominal Voltage | 3.6v |
| Autonomy | >20 days (14 hour darkness, 12.5% duty cycle) |
| Temperature Range | -40 to 80°C |
|
Solar Characteristics
|
|
| Solar Module Type | Multicrystalline |
| Output | 1.4watt |
| Solar Module Efficiency | 14% |
| Charging Regulation | Microprocessor controlled |
|
Power Supply
|
|
| Battery Type | High grade NiMH - Environmentally friendly |
| Battery Capacity | 4Ah |
| Nominal Voltage | 3.6v |
| Battery Service Life | Average 5 years |
|
Physical Characteristics - Lights
|
|
| Body Material | LEXAN® Polycarbonate - UV-stabilised |
| Lens Material | LEXAN® Polycarbonate - UV-stabilised |
| Lens Diameter (mm/inches) | 150 / 5 7/8 |
| Lens Design | External optics with interior flute design |
| Mounting | 4 x 4.5mm mounting holes |
| Height (mm/inches) | 205 / 8 1/8 |
| Width (mm/inches) | 177 / 7 |
| Mass (Kg/lbs) | From 0.9 / 2 1/8 |
|
Certifications
|
|
| CE | EN61000-6-3:1997, EN61000-6-1:1997 |
| Quality Assurance | ISO9001:2008 |
| Waterproof | IP68 |
|
Intellectual Property
|
|
| Patents | US Pat. No. 6,667,582. AU Pat. No. 778,918 |
| Trademarks | SEALITE® is a registered trademark of Sealite Pty Ltd |
|
Warranty
|
|
| Warranty | Full 3 years |
