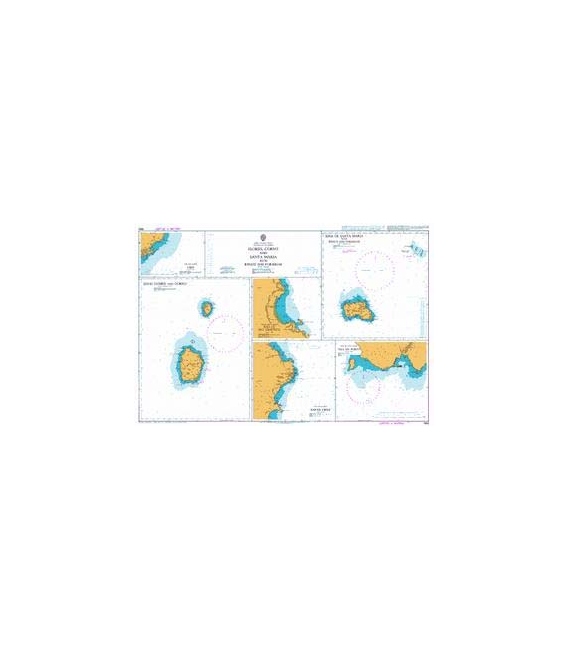

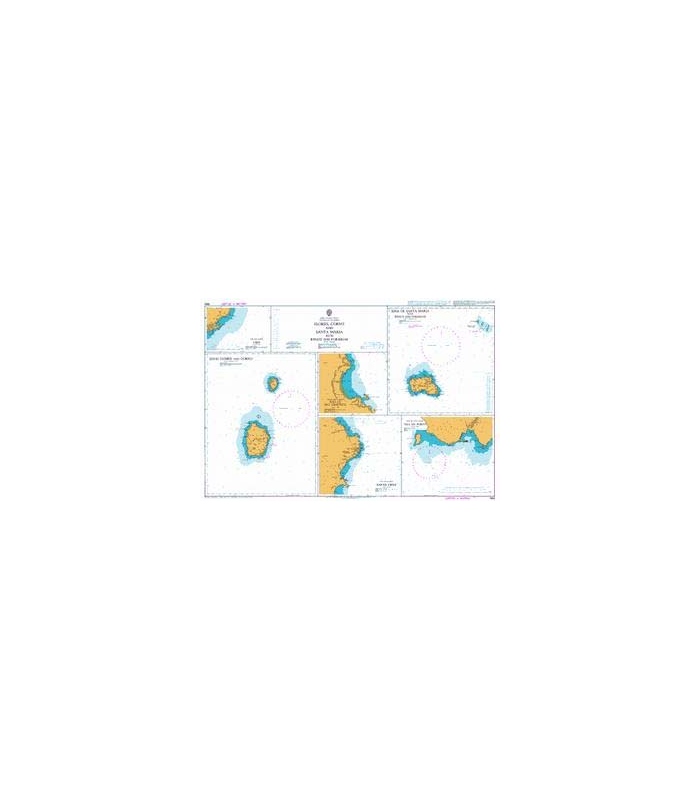

British Admiralty Nautical Chart 1959 Flores-Corvo and Santa Maria with Banco Das Formigas

British Admiralty Nautical Chart 1959 Flores-Corvo and Santa Maria with Banco Das Formigas

 is corrected up to date. Admiralty standard nautical charts comply with Safety of Life at Sea (SOLAS) regulations and are ideal for professional, commercial and recreational use. Charts within the series consist of a range of scales, useful for passage planning, ocean crossings, coastal navigation and entering port. Mariners should always use the largest scale nautical chart appropriate to their needs. In particularly busy seaways such as the English Channel, Gulf of Suez and the Malacca and Singapore Straits, the standard nautical charts are supplemented by mariners routeing guides which provide advice on route planning in these complex areas.

Chart 1959

Main Chart Details

• Chart Title: Flores, Corvo and Santa Maria with Banco Das Formigas
• Publication Date: 09/10/1992
• Latest Edition date: 05/09/2013
• Chart Size: 977 x 636 (mm)

Chart Panel Details

• Panel Name Ilhas Flores and Corvo
• Natural Scale 150000
• North Limit 39 50'.00N
• East Limit 30 51'.50W
• South Limit 39 12'.00N
• West Limit 31 29'.51W

• Panel Name Ilha de Santa Maria with Banco das Formigas
• Natural Scale 150000
• North Limit 37 20'.00N
• East Limit 24 42'.00W
• South Limit 36 50'.58N
• West Limit 25 18'.00W

• Panel Name Santa Cruz
• Area Name Ilha das Flores
• Natural Scale 25000
• North Limit 39 28'.70N
• East Limit 31 05'.10W
• South Limit 39 25'.10N
• West Limit 31 09'.92W

• Panel Name Lajes
• Area Name Ilha das Flores
• Natural Scale 20000
• North Limit 39 23'.38N
• East Limit 31 07'.70W
• South Limit 39 21'.80N
• West Limit 31 10'.69W

• Panel Name Baia de Sao Lourenco
• Area Name Ilha de Santa Maria
• Natural Scale 12500
• North Limit 37 00'.19N
• East Limit 25 02'.05W
• South Limit 36 58'.80N
• West Limit 25 03'.97W

• Panel Name Vila do Porto
• Area Name Ilha de Santa Maria
• Natural Scale 12500
• North Limit 36 57'.06N
• East Limit 25 08'.17W
• South Limit 36 55'.26N
• West Limit 25 10'.75W

Co-ordinates given are usually those of the four extremities of the chart. In many cases not all the area within will be fully charted*.Customers should check that the chart meets their requirements by viewing the chart image (where available).Mariners should always use the largest scale navigational chart available.

*Reasons may include

• Continuation of coverage of a small part outside the main area of chart coverage e.g a river.
• Inset plans and the chart title block and notes also take up space, therefore geographical information cannot be shown in this area.
• A need to refer to larger scale of chart, such waters are often "blued out" to avoid excessive maintenance work applying numerous NM corrections to an area of the small scale chart where the navigator will be using a larger scale chart.
• Coverage is better served from a different chart because of typical routeings.
