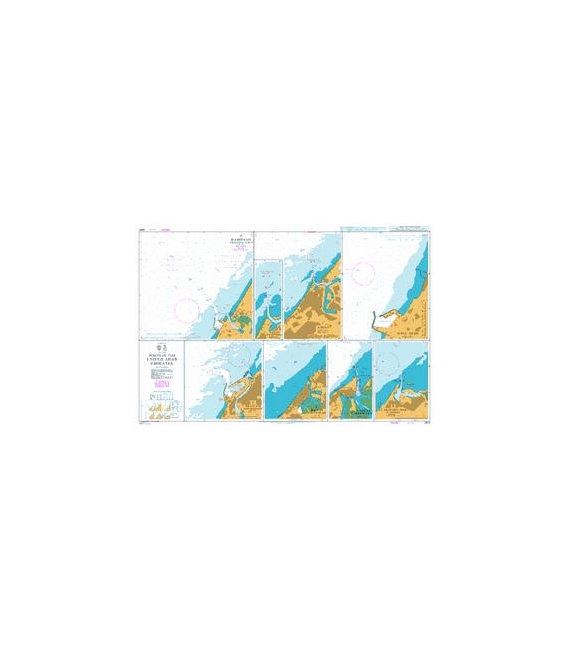

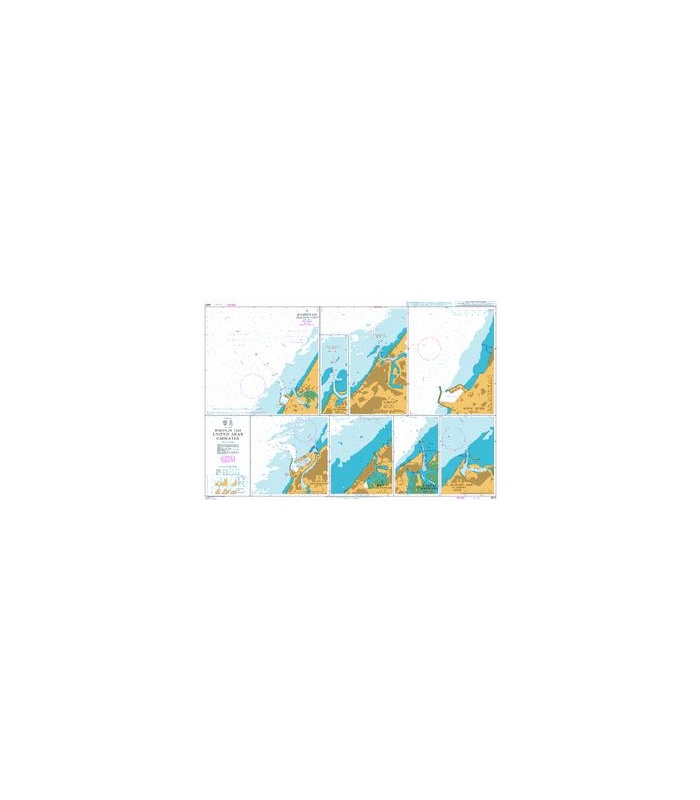

British Admiralty Nautical Chart 3410 Ports in the United Arab Emirates

British Admiralty Nautical Chart 3410 Ports in the United Arab Emirates

is corrected up to date. Admiralty standard nautical charts comply with Safety of Life at Sea (SOLAS) regulations and are ideal for professional, commercial and recreational use. Charts within the series consist of a range of scales, useful for passage planning, ocean crossings, coastal navigation and entering port. Mariners should always use the largest scale nautical chart appropriate to their needs. In particularly busy seaways such as the English Channel, Gulf of Suez and the Malacca and Singapore Straits, the standard nautical charts are supplemented by mariners routeing guides which provide advice on route planning in these complex areas.

Chart 3410

Chart INT. 7214

Main Chart Details

• Chart Title: Ports in the United Arab Emirates
• Publication Date: 28/10/1994
• Latest Edition date: 28/02/2008
• Chart Size: 1007 x 650 (mm)

Chart Panel Details

• Panel Name Plan A - Hamriyah, Freezone Port
• Natural Scale 30000
• North Limit 25 33'.51N
• East Limit 55 31'.00E
• South Limit 25 27'.50N
• West Limit 55 24'.03E

• Panel Name Plan B - `Ajman Channel
• Natural Scale 15000
• North Limit 25 27'.10N
• East Limit 55 27'.00E
• South Limit 25 24'.90N
• West Limit 55 26'.20E

• Panel Name Plan C - A'jman
• Natural Scale 30000
• North Limit 25 28'.30N
• East Limit 55 28'.30E
• South Limit 25 22'.29N
• West Limit 55 22'.94E

• Panel Name Plan D - Mina' Saqr
• Natural Scale 15000
• North Limit 26 01'.15N
• East Limit 56 04'.50E
• South Limit 25 58'.15N
• West Limit 56 01'.85E

• Panel Name Plan E - Sharjah (Ash Shariqah)
• Natural Scale 25000
• North Limit 25 24'.16N
• East Limit 55 23'.97E
• South Limit 25 20'.50N
• West Limit 55 20'.00E

• Panel Name Plan F_ Ras Al Khaymah
• Natural Scale 35000
• North Limit 25 50'.96N
• East Limit 55 58'.30E
• South Limit 25 45'.85N
• West Limit 55 53'.80E

• Panel Name Plan G - Umm Al Qaywayn
• Natural Scale 30000
• North Limit 25 37'.98N
• East Limit 55 35'.90E
• South Limit 25 33'.60N
• West Limit 55 33'.20E

• Panel Name Plan H - Al Jazeera Port (Al Jazirah Port)
• Natural Scale 20000
• North Limit 25 44'.92N
• East Limit 55 49'.21E
• South Limit 25 42'.00N
• West Limit 55 47'.00E
