Sealite Radio Monitoring & Control System

Sealite Radio Monitoring & Control System

Sealite’s Radio Control System is designed to permit port and marina authorities to directly control the operation of single or grouped lanterns.

Controlled by a menu drive 2.4GHz handheld transceiver or PC interface, lanterns may be;

• Activated or deactivated
• Flash character changed to any of the 256 codes available
• Intensity adjusted up to 8 levels
• Lanterns set to group flash synchronisation
• Lantern colour changed from green to red and other combinations (up to 3 different colours controlled independently)

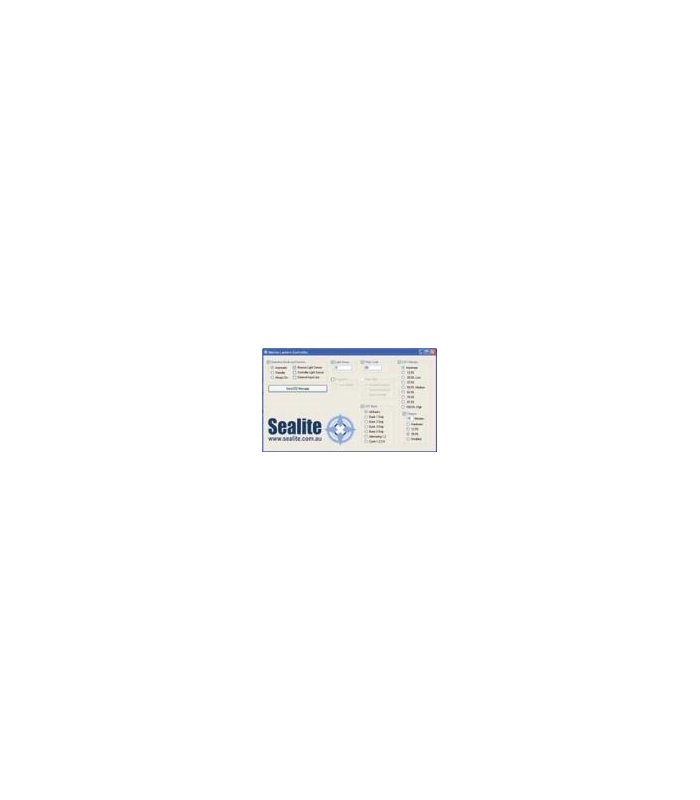

Sealite’s innovative PC interface for the radio control system displays all operator control fields in one easy-to-view and easy-to-select screen. With the handheld radio controller connected to the PC via serial port, the user simply selects the setup fields and sends the ICD Message to the designated lanterns.

See the "More Info" tab below for a list of typical applications.

Features of the Sealite RADIO

• RF module internally integrated into lantern enables remote monitoring & control whilst maintaining IP68 waterproof rating
• Wireless handheld controller or PC interface

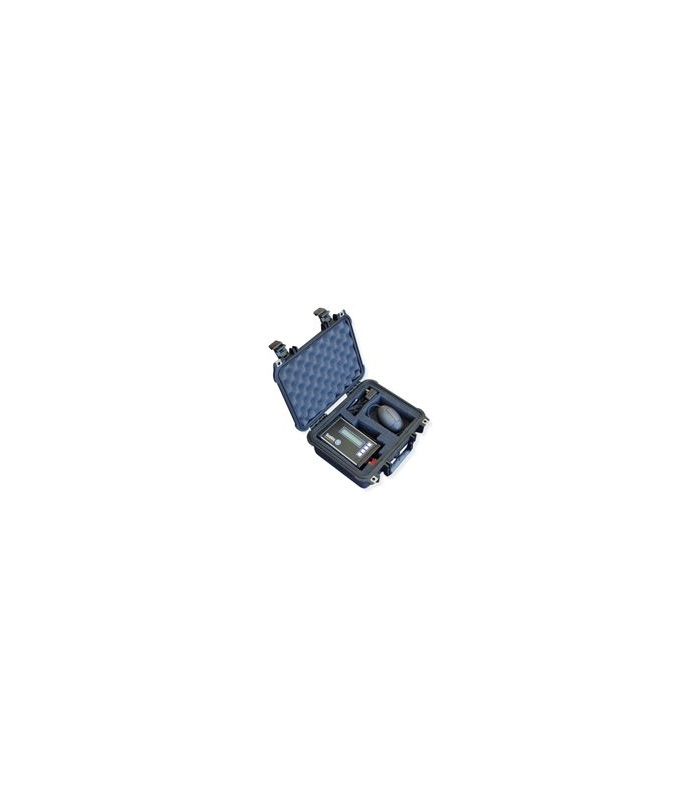

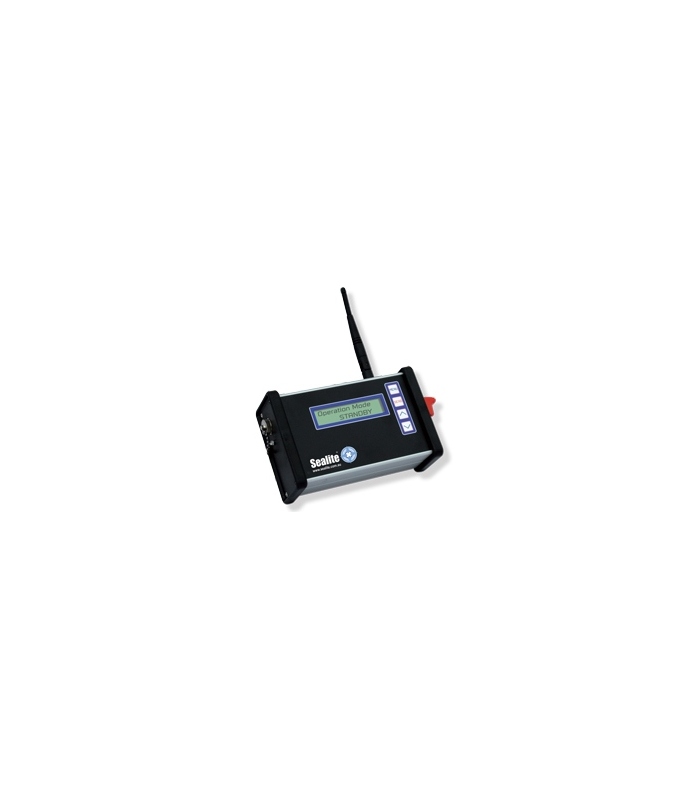

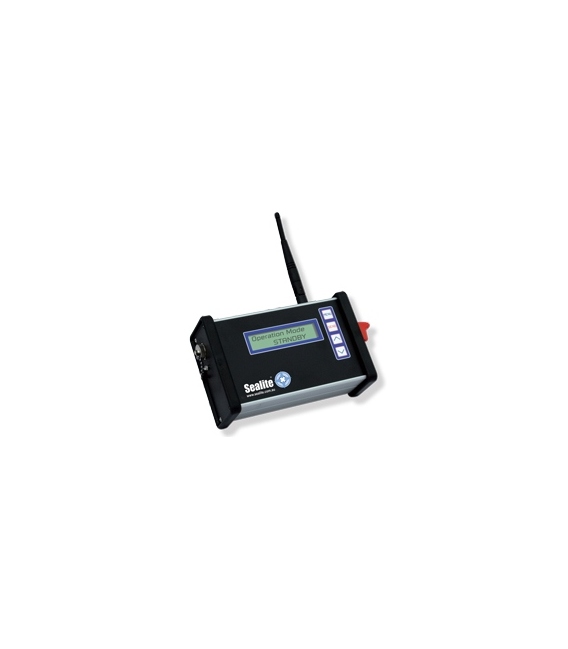

• Light-weight short-range RF controller features LCD screen, RF aerial, integrated battery, battery recharge & PC interface connection point, & press buttons to easily control light parameters
• FCC Approved - M100103

Advantages of the Sealite RADIO

• 2.4GHz worldwide accepted radio control
• Monitor & control lanterns via portable handheld radio controller or PC interface
• Cost effective
• Unique identifier making it possible to activate & control each individual lantern separately (lanterns may be setup into groups for ease of command control)
• No base station or external aerials (for radio controlled lanterns) required
• Mesh network system with unlimited operational range

Additional Information about the Sealite RADIO
