Sealite PC-415 Lighted Pile Caps

For the latest information on prices and availability please contact us on: (800) 596 7245 or sales@mdnautical.com

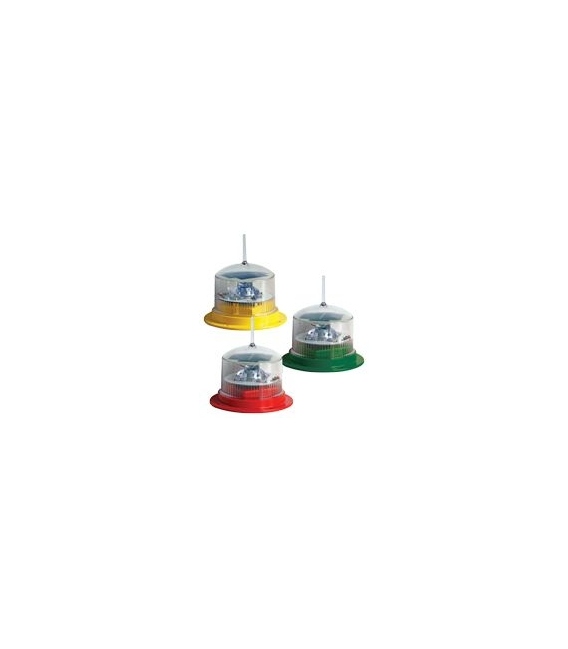

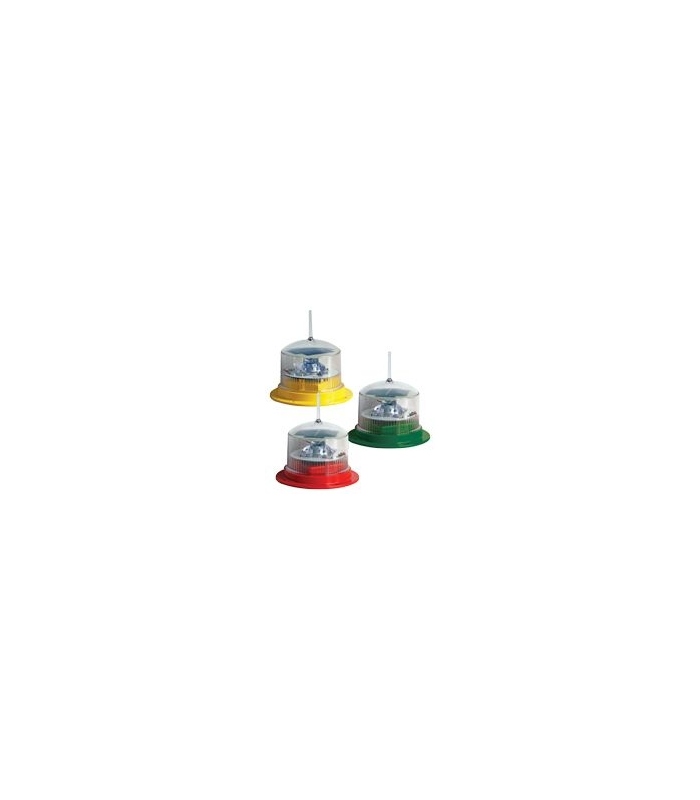

Sealite’s lighted pile caps can be used for domestic pontoons and commercial marinas to create a safe and visually appealing docking facility. They are available in a range of high visibility colours and are fitted with a self-contained, solar LED marine light to provide safe day and night navigation. The lantern is equipped with a bird spike to prevent birds roosting.

Manufactured from strong, UV-stabilized polyethylene the caps are able to stand up to the harsh marine environment. The pile cap keeps rain out of the top of timber piles helping to prevent rot to extend the life of the pile.

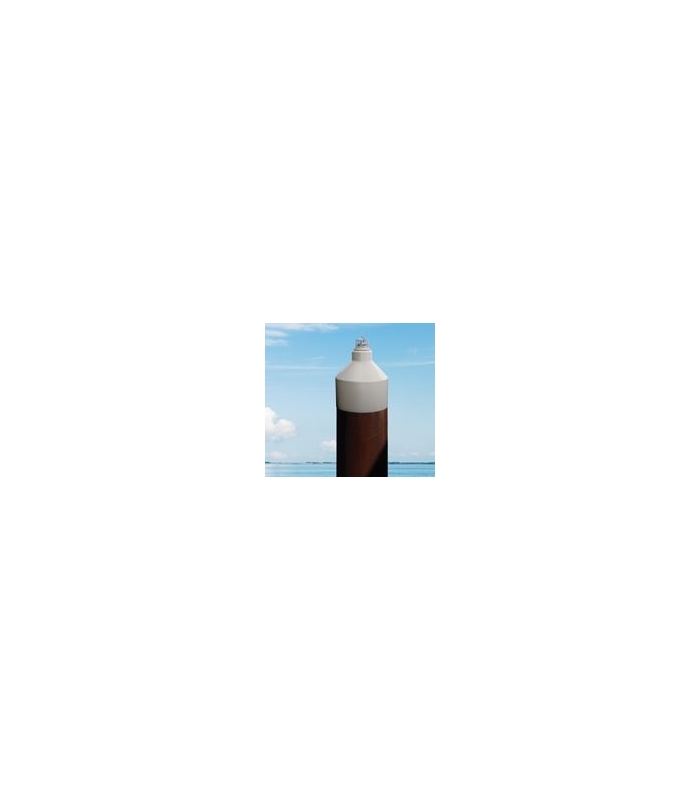

Sealite’s pile caps are rotationally moulded as a single piece with a wall thickness of 4mm - increasing strength and ensuring a robust and functional product. The pile caps are fitted to the top of the pile and, while extremely strong and durable, are flexible enough to make installing simple.

The lighted pile caps provide high day and night visibility and are available in red, green, white, blue or yellow.

During daylight hours the solar module will charge the battery, and the lantern will automatically begin operation at dusk – once the ambient light threshold drops sufficiently.

The following downloads are availableDownload
Product Specifications [ download 752 KB ]

Features of the Sealite PC-415_Lighted-Pile-Caps

  • Self-contained solar LED marine lantern (Model SL15 - 1-2nm+)
  • Made from stong, durable, UV-stabilized virgin polyethylene
  • Available in high visibility colours

Advantages of the Sealite PC-415_Lighted-Pile-Caps

  • Strong polyethylene construction
  • Rotationally moulded
  • Solar LED marine light (Model SL15)
  • High visibility red, green, white, blue or yellow as per IALA recommendations
  • High night & day visibility & safe navigation
  • Easy to install

Options Available for the Sealite PC-415_Lighted-Pile-Caps

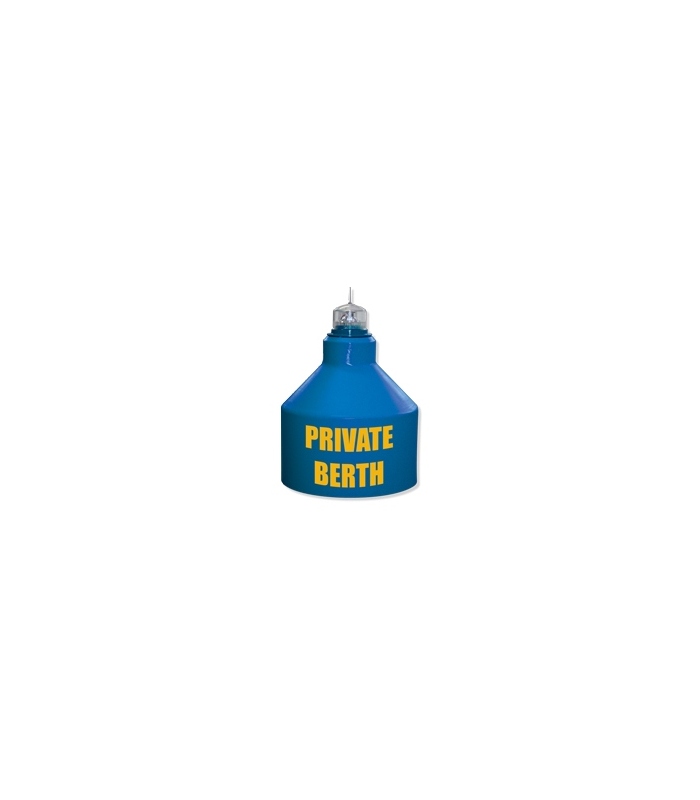

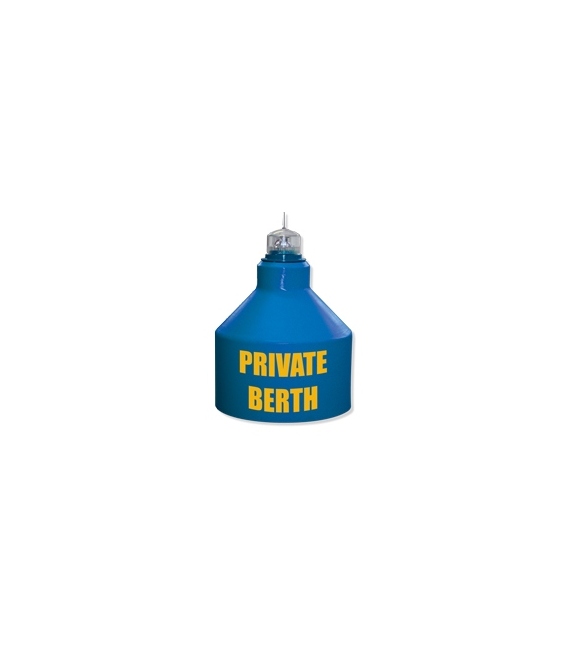

Mould-in graphics
Light Characteristics
Light Source 1 LED
Available Flash Colors Red, Green, White, Yellow, Blue
Maximum Available Intensity R- 6.2cd G- 7.6cd W- 6.8cd Y- 5.9cd
Visible Range 1-2nm+
Horizontal Output 360 degrees
Vertical Divergence 7 degrees
Reflector Type Single LED Optic
Available Flash Characteristics 16 user-adjustable IALA flash characteristics (other flash patterns available on request)
Intensity Adjustments 32 automatic step-down settings based on power demand of flash code selection
LED Life Expectancy >100,000 hours
Electrical Characteristics
Current Draw Refer to Sealite Power Calculator
Circuit Protection Integrated
Nominal Voltage 3.6v
Autonomy >50 days (14 hour darkness, 12.5% duty cycle)
Temperature Range -40 to 80°C
Solar Characteristics
Solar Module Type Multicrystalline
Output 0.45watt
Solar Module Efficiency 14%
Charging Regulation Microprocessor controlled
Power Supply
Battery Type High grade NiMH - Environment friendly
Battery Capacity 1.6Ah
Nominal Voltage 3.6v
Battery Service Life Average 5 years
Physical Characteristics - Lights
Body Material LEXAN® Polycarbonate - UV-stabilised
Lens Material LEXAN® Polycarbonate - UV-stabilised
Lens Diameter (mm/inches) 98 / 3 7/8
Lens Design Single LED optic
Mounting 4 x 6mm mounting holes
Certifications
CE EN61000-6-3:1997, EN61000-6-1:1997
Quality Assurance ISO9001:2008
Waterproof IP68 (Light)
Intellectual Property
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty
Warranty Full 3 years (light). 1 year on pile cap.
