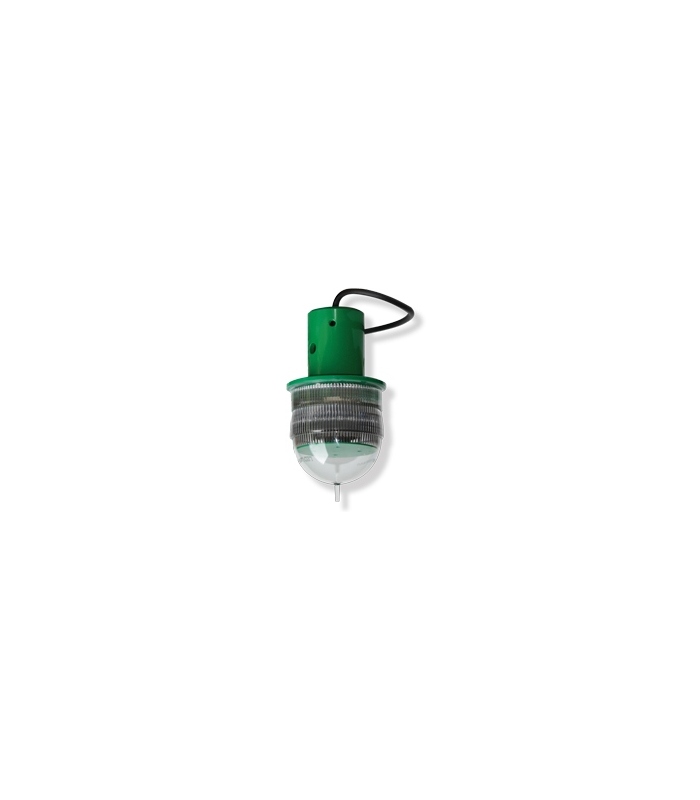

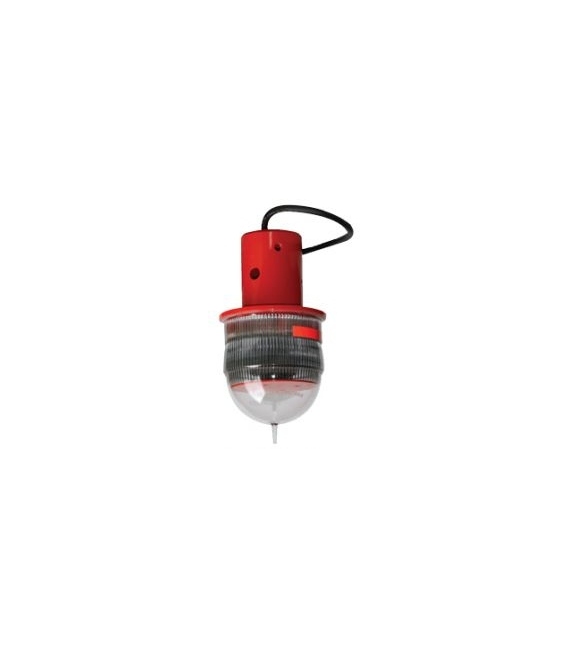

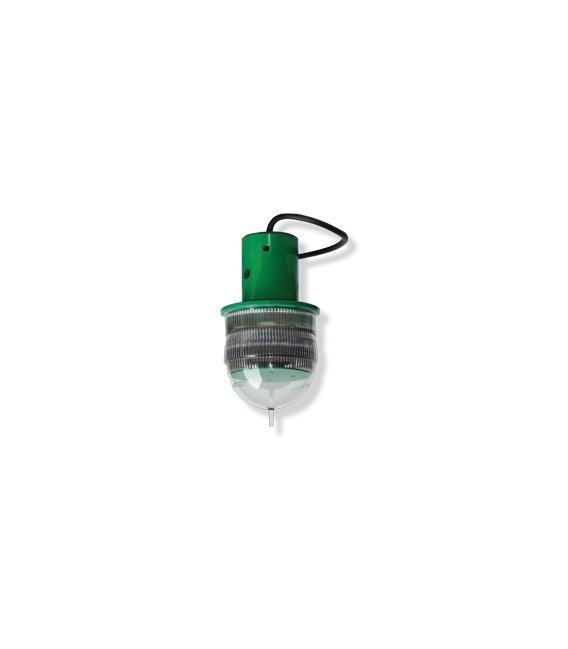

Sealite SL-BR Sectored Bridge Light

For the latest information on prices and availability please contact us on: (800) 596 7245 or sales@mdnautical.com

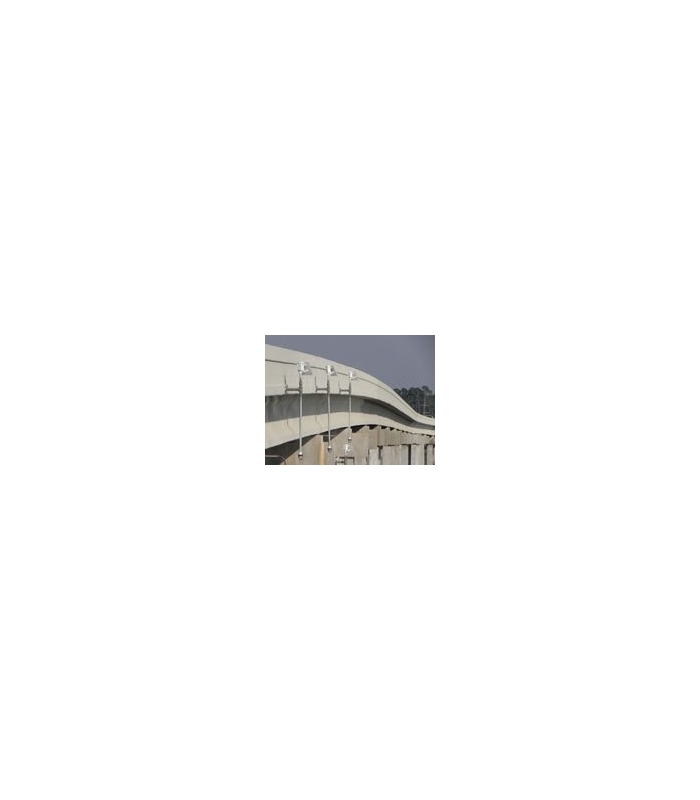

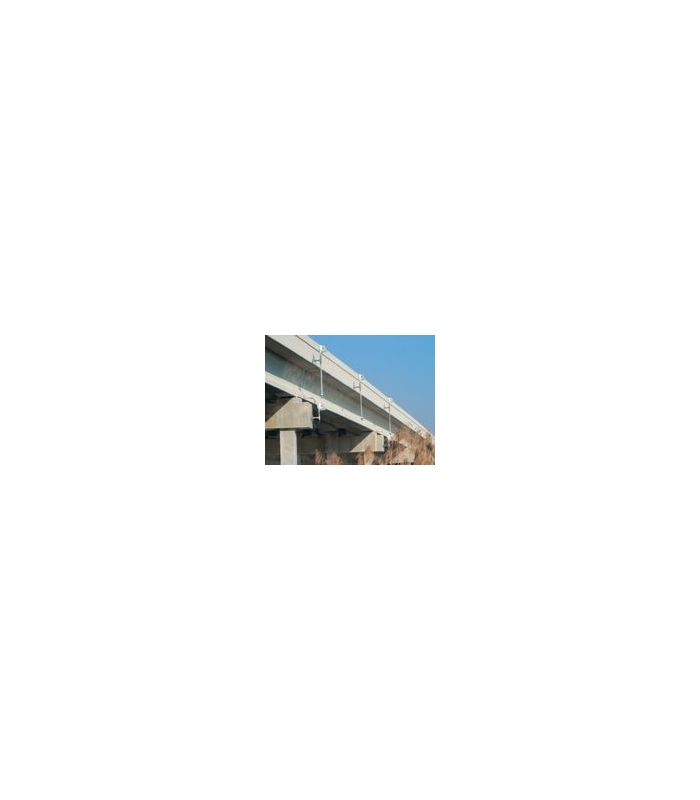

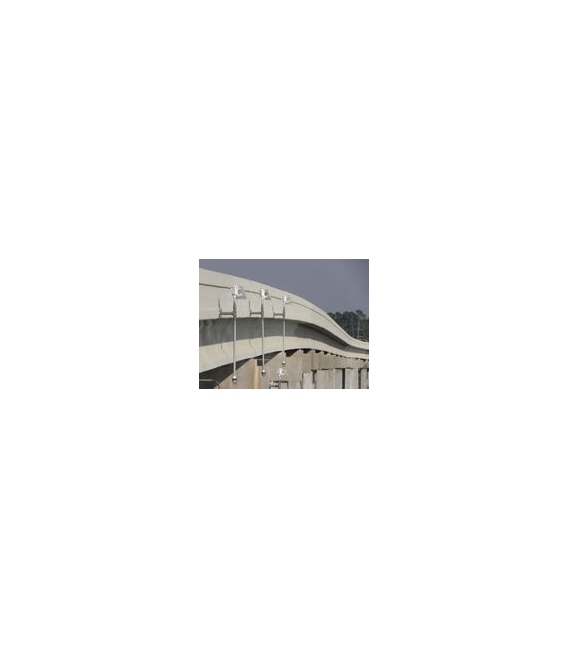

The SL-BR is an LED Sectored Bridge Light specifically designed to clearly mark bridges and structures extending over navigable waterways and is used extensively throughout the USA. The SL-BR has been designed to offer superior visibility and operate in conjunction with existing power supplies.

The sectored lantern is fixed-on as standard, but is available with a range of other factory-set flash characteristics and sectoring requirements to suit local regulations.

The light is available as configured to operate from 12v power with 6 metres of cable for easy installation.

The SL-BR can also be supplied as a complete solar/battery system to comply with requirements of regional governing bodies such as the U.S. Coast Guard, or the IALA Recommendations for the marking of fixed bridges over navigable waters.

The following downloads are availableDownload
Product Specifications [ download 1 MB ]

Features of the Sealite SL-BR_Bridge_Light

  • 20 ultra-high intensity LEDs

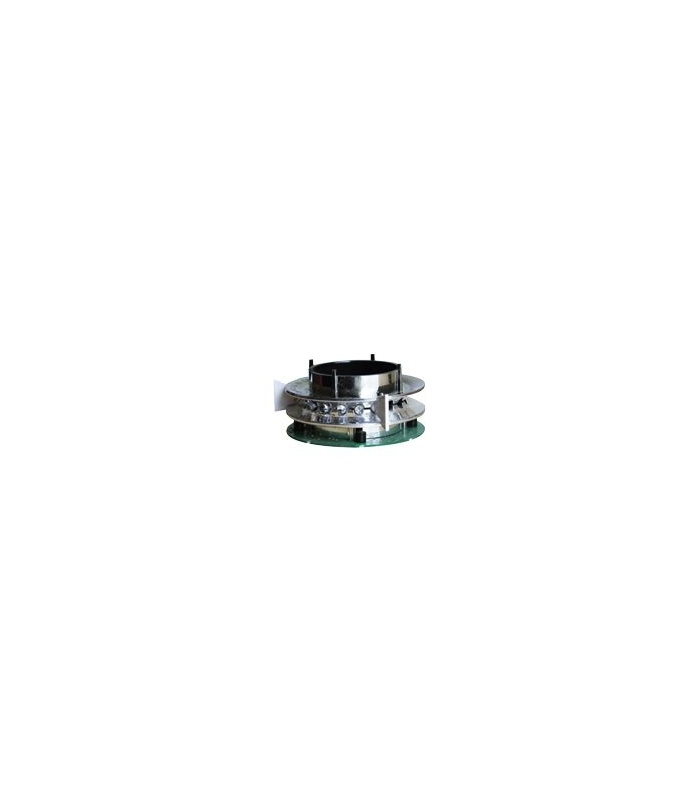

  • LED lens and Sealite's 360° Omnidirectional LED Reflector
  • Automatic night activation
  • Top of the lantern indicates LED light colour
  • 6 metres of cable provided for ease of installation

Advantages of the Sealite SL-BR_Bridge_Light

  • Able to operate in conjunction with existing power supplies
  • Optional solar/battery systems available
  • Optional mounting accessories available
Light Characteristics
Light Source 20 ultra-high intensity LEDs
Available Flash Colors Red, Green
Visible Range 2nm
Horizontal Output 360 or 180 degrees
Vertical Divergence 9 degrees
Reflector Type Omnidirectional 360° LED Reflector (US Pat. No. 6,667,582. AU Pat. No. 778,918)
Available Flash Characteristics Steady-on (standard). Other factory set flash patterns available on request
LED Life Expectancy >100,000 hours
Electrical Characteristics
Current Draw 40mA
Circuit Protection Integrated
Nominal Voltage 12v
Temperature Range -40 to 80°C
Physical Characteristics - Lights
Body Material LEXAN® Polycarbonate - UV-stabilised
Lens Material LEXAN® Polycarbonate - UV-stabilised
Lens Diameter (mm/inches) 107 / 4 1/4
Lens Design External optics with interior flute design
Mounting 50mm OD pole
Height (mm/inches) 208 / 8 1/8
Width (mm/inches) 107 / 4 1/4
Mass (Kg/lbs) 1.2 / 2 5/8
Certifications
CE EN61000-6-3:1997, EN61000-6-1:1997
Quality Assurance ISO9001:2008
Intellectual Property
Patents US Pat. No. 6,667,582. AU Pat. No. 778,918
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty
Warranty 3 years
