Sealite LED Sectored Bridge Lighting Kit

For the latest information on prices and availability please contact us on: (800) 596 7245 or

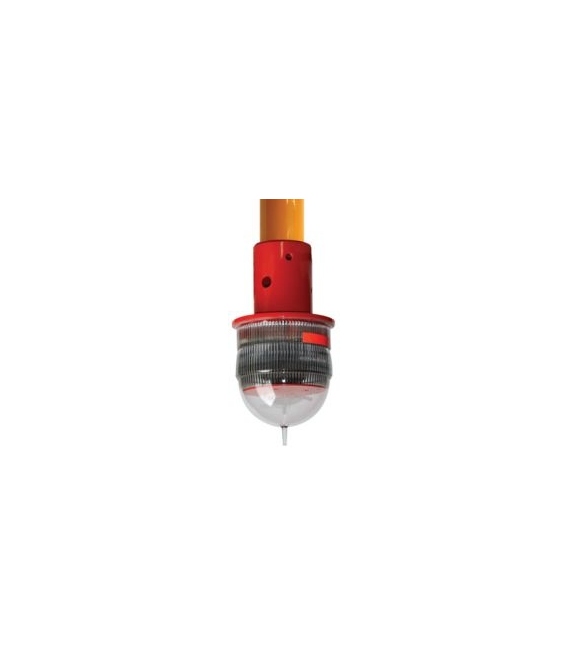

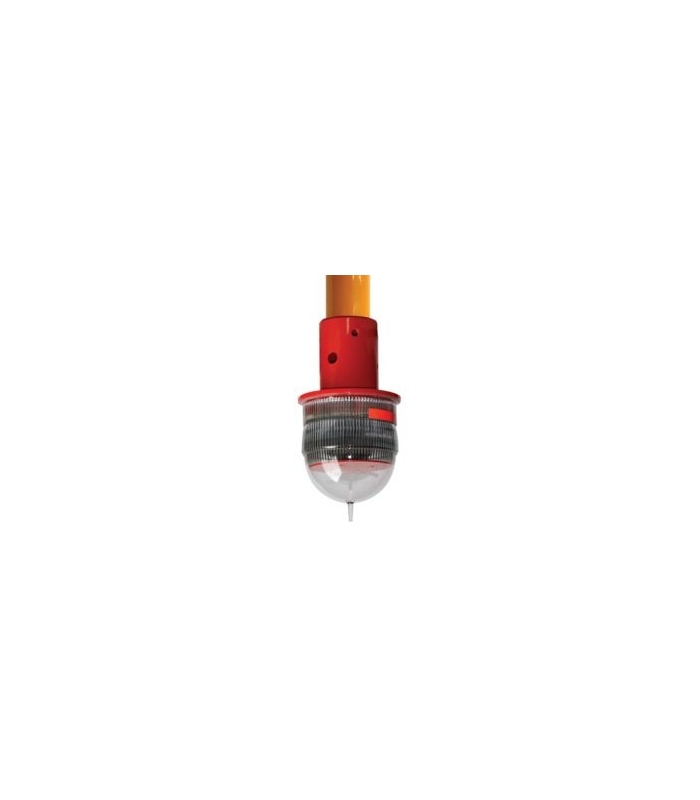

SL-BRK Solar Bridge Lighting Kit

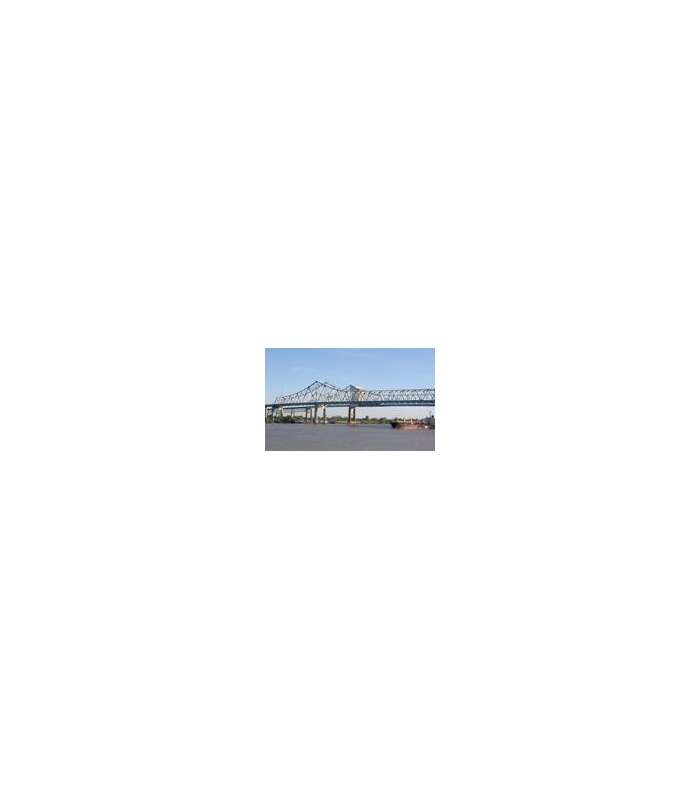

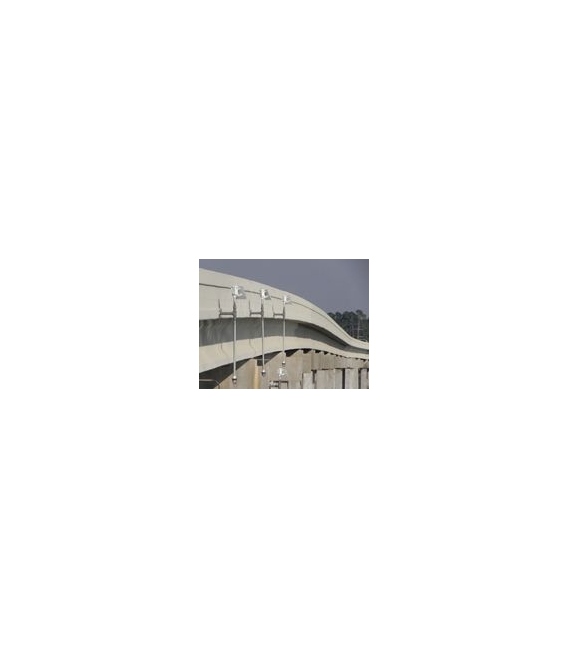

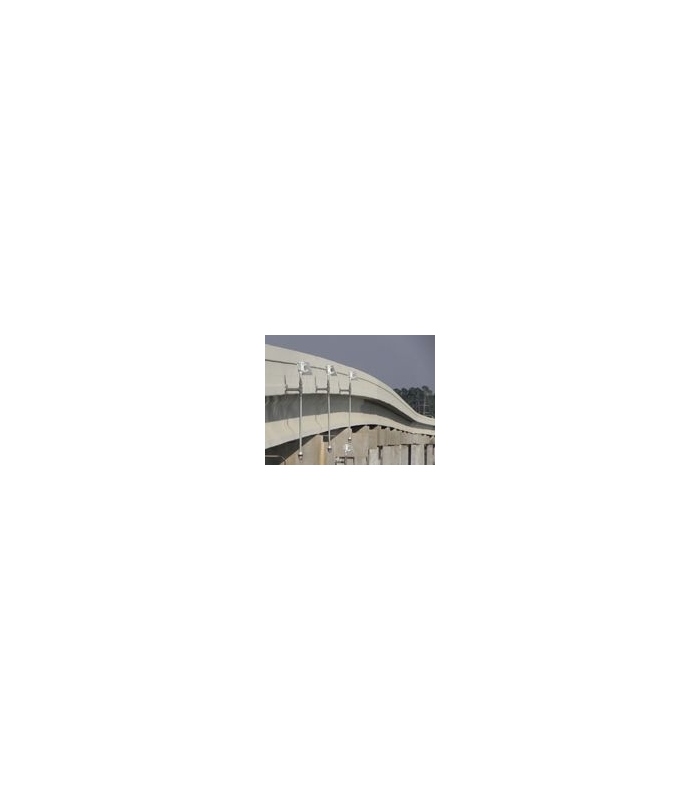

Sealite’s SL-BRK is an LED Sectored Bridge Lighting Kit specifically designed to clearly mark bridges and structures extending over navigable waterways, and is used extensively throughout the USA.

The SL-BRK features a large SL23 solar power supply (10watt solar module with 7.5Ah SLA battery), positioned at the top of the assembly to maximise solar collection.

The sectored lantern is steady-on as standard but is available with a range of other factory-set flash characteristics and sectoring requirements to suit local regulations.

The optional long extension arm between the light and the power supply ensures clear visibility of the AtoN from mariners below.

PLEASE NOTE: the extension arm is not included with the standard SL-BRK bridge lighting kit.

Sealite has a range of other marine lanterns that may also be used to comply with bridge lighting requirements.

The 107mm Sealite LED lens is available in both positive and negative divergence to cater for elevated mounting positions.

Bridge lights are typically steady-on, however a choice of over 256 IALA recommended flash patterns are available as standard.

The lights are configured as complete solar/battery systems to comply with requirements of regional governing bodies such as the U.S. Coast Guard, or the IALA Recommendations for the marking of fixed bridges over navigable waters.

In U.S. waters for instance, the Coast Guard prescribes certain combinations of fixed lights for bridges and structures extending over waterways. In general, red lights are used to mark piers and supports, and green lights mark the centreline of the navigable channel through a fixed bridge.

If there is more than one channel through the bridge, the preferred route is marked by three white lights placed vertically. Red lights are also used on some lift bridges to indicate the lift is closed, and green lights to indicate that the lift is open to vessel traffic.

Double-opening, swing bridges are lighted with three lanterns on top of the span structure so that when viewed from an approaching vessel the swing span when closed will display three red lights, and when open for navigation will display two green lights.

For a copy of the IALA Recommendations for the marking of fixed bridges over navigable waters please contact Sealite.

The following downloads are availableDownload
Product Specifications [ download 529 KB ]
Installation Manual [ download 935 KB ]

Features of the Sealite SL-BRK_Bridge_Light_Kit

  • Large 10watt solar module & 7.5Ah battery
  • Sectored LED light (available sectored to exact local specifications as required)
  • Lantern cap designates LED light colour
  • Available with a range of mounting assemblies to suit varying applications

Additional Information about the Sealite SL-BRK_Bridge_Light_Kit

Typical Night Marking of Bridge Structures Generally Include:

  • Red or green lights to mark the navigable limits of the channel in accordance with the IALA Maritime Buoyage System located on the bridge piers, under the span, or on buoy and beacons in the water
  • A 'best point of passage' indicated by a white light(s) located under the span and exhibiting a safe water mark character
