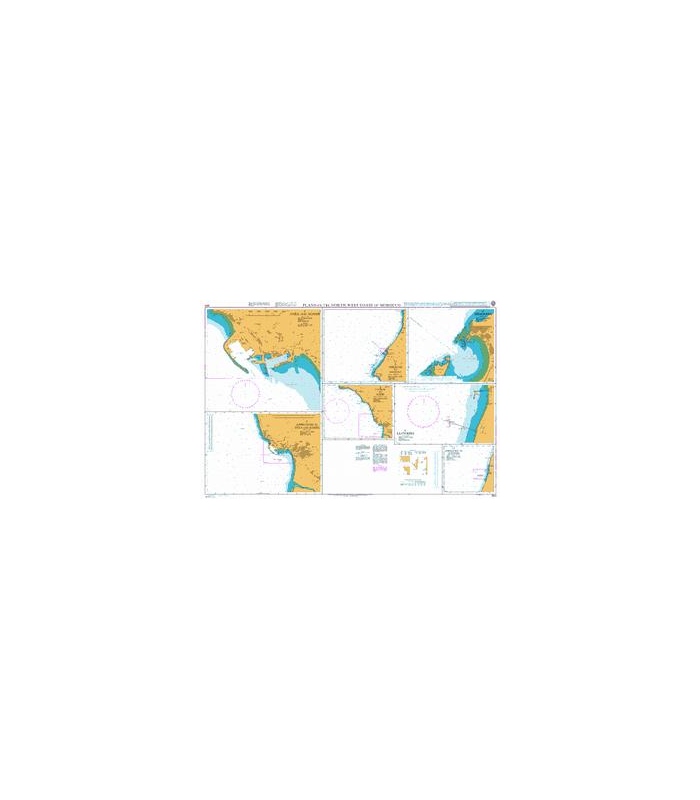

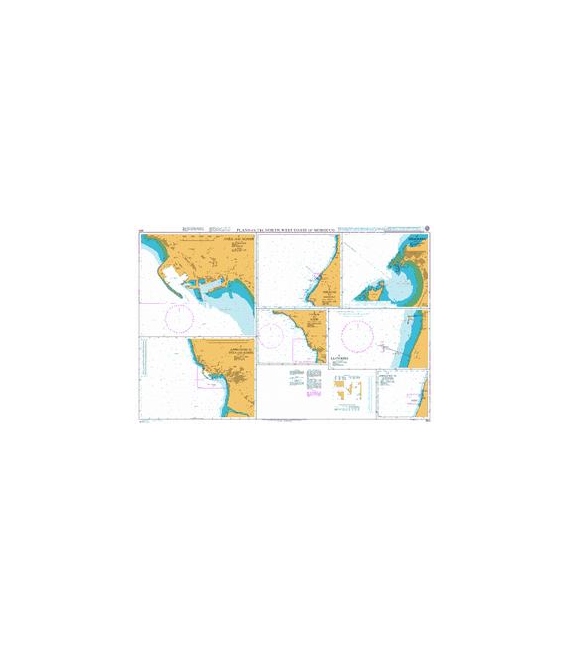

British Admiralty Nautical Chart 863 Plans on the North West Coast of Morocco

British Admiralty Nautical Chart 863 Plans on the North West Coast of Morocco

is corrected up to date. Admiralty standard nautical charts comply with Safety of Life at Sea (SOLAS) regulations and are ideal for professional, commercial and recreational use. Charts within the series consist of a range of scales, useful for passage planning, ocean crossings, coastal navigation and entering port. Mariners should always use the largest scale nautical chart appropriate to their needs. In particularly busy seaways such as the English Channel, Gulf of Suez and the Malacca and Singapore Straits, the standard nautical charts are supplemented by mariners routeing guides which provide advice on route planning in these complex areas.

Chart 863

Main Chart Details

• Chart Title: Plans on the North West Coast of Morocco
• Publication Date: 03/06/1988
• Latest Edition date: 24/09/2020
• Chart Size: 1020 x 650 (mm)

Chart Panel Details

• Panel Name B Approaches to Essaouira
• Area Name North West Coast of Morocco
• Natural Scale 150000
• North Limit 31 42'.26N
• East Limit 9 39'.70W
• South Limit 31 21'.67N
• West Limit 10 07'.20W

• Panel Name C Essaouira
• Area Name North West Coast of Morocco
• Natural Scale 12500
• North Limit 31 31'.25N
• East Limit 9 45'.70W
• South Limit 31 29'.50N
• West Limit 9 48'.08W

• Panel Name D Cap Ghir to Agadir
• Area Name North West Coast of Morocco
• Natural Scale 175000
• North Limit 30 38'.48N
• East Limit 9 32'.90W
• South Limit 30 20'.85N
• West Limit 9 59'.27W

• Panel Name F Approaches to Anza and Agadir
• Area Name North West Coast of Morocco
• Natural Scale 50000
• North Limit 30 28'.84N
• East Limit 9 33'.25W
• South Limit 30 21'.28N
• West Limit 9 45'.84W

• Panel Name A Anza and Agadir
• Area Name North West Coast of Morocco
• Natural Scale 12500
• North Limit 30 26'.52N
• East Limit 9 36'.38W
• South Limit 30 24'.08N
• West Limit 9 39'.54W

• Panel Name G Approaches to Laayoune
• Area Name North West Coast of Morocco
• Natural Scale 175000
• North Limit 27 13'.71N
• East Limit 13 23'.35W
• South Limit 26 58'.55N
• West Limit 13 41'.89W

• Panel Name E Laayoune
• Area Name North West Coast of Morocco
• Natural Scale 30000
• North Limit 27 06'.13N
• East Limit 13 24'.68W
• South Limit 27 02'.78N
• West Limit 13 31'.03W

Co-ordinates given are usually those of the four extremities of the chart. In many cases not all the area within will be fully charted*.Customers should check that the chart meets their requirements by viewing the chart image (where available).Mariners should always use the largest scale navigational chart available.

*Reasons may include

• Continuation of coverage of a small part outside the main area of chart coverage e.g a river.
• Inset plans and the chart title block and notes also take up space, therefore geographical information cannot be shown in this area.
• A need to refer to larger scale of chart, such waters are often "blued out" to avoid excessive maintenance work applying numerous NM corrections to an area of the small scale chart where the navigator will be using a larger scale chart.
• Coverage is better served from a different chart because of typical routeings.
