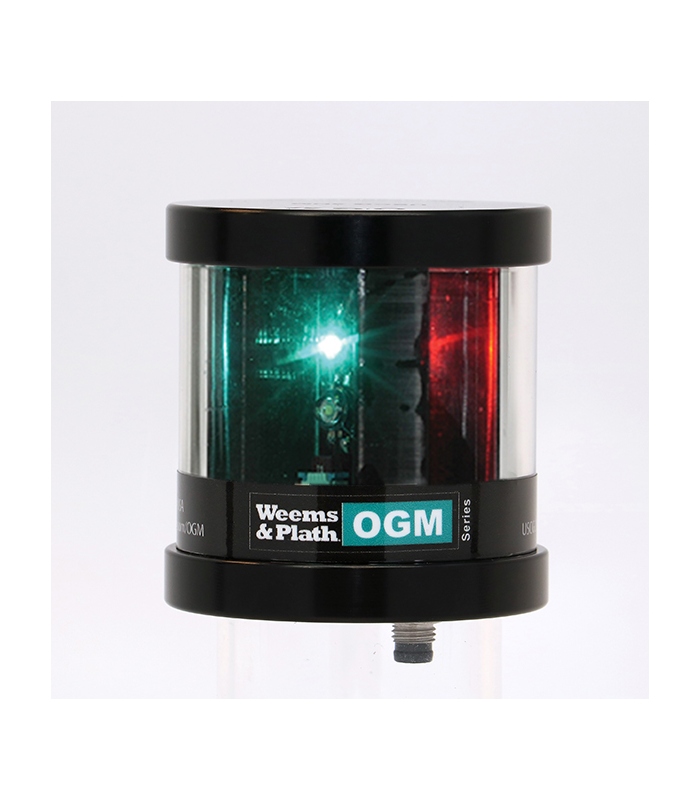

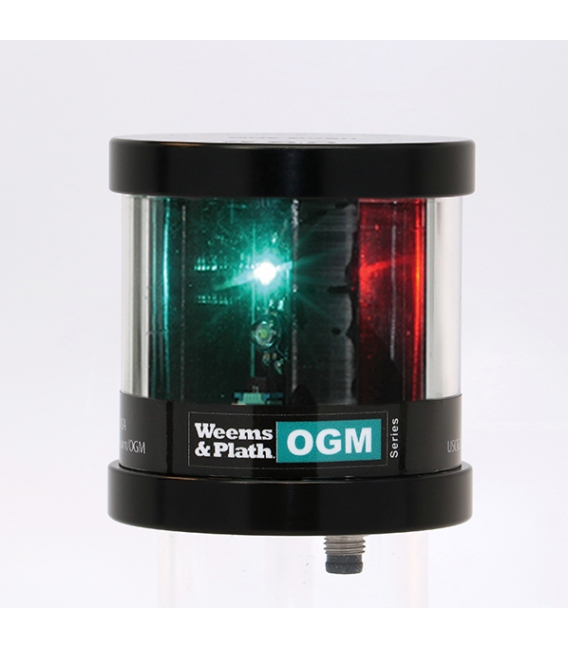

LX TriColor/Anchor LED Nav Light with Photodiode and Strobe

This rugged and waterproof LED TriColor/Anchor combination light includes a strobe option, which converts the light from a solid anchor (WHITE) color to strobe on/off for emergencies. Additionally, the photodiode automatically turns the light on at dusk and off at dawn. The light also has 2 nautical miles of visibility and uses 5 times less power than comparable incandescents! Perfect for sailing vessels that are up to 65-feet in length.

U.S. Coast Guard approved and used by the USCG and on board other military vessels since 2004. The LX Collection of Weems & Plath OGM LED Navigation Lights was the first in the world to be USCG approved and has set the standard for all others to follow.

Includes a waterproof quick-disconnect plug with 3-foot mating cable. Bracket and Selector Switch sold separately.

  • Visibility: 2NM
  • Voltage Range: 9-30V DC
  • Current Draw: ≤ 0.33 Amps at 12V DC
  • Power Consumption: 4 Watts
  • Horizontal Viewing Angle: 112.5°/ea for Port and Starboard (225° total); 360° for Anchor
  • Vertical Viewing Angle: +/- 36°
  • Wiring: 3-pin waterproof, quick-disconnect plug with 3-foot mating cable
  • Certifications: USCG 2NM, ABYC-A16, COLREGS '72
  • Construction: Aluminum, Cast Acrylic
  • Made in the USA
  • Limited LIFETIME Warranty (effective 04/24/2019)
