LX TriColor/Anchor LED Navigation Light


New product

*** Discontinued, replaced by CPLXTA-S (circa mid 2021)

More details

Shipping Rates

More info

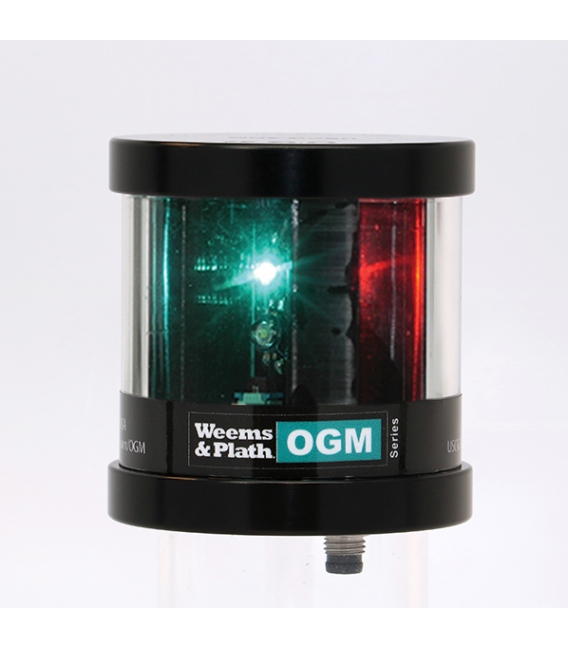

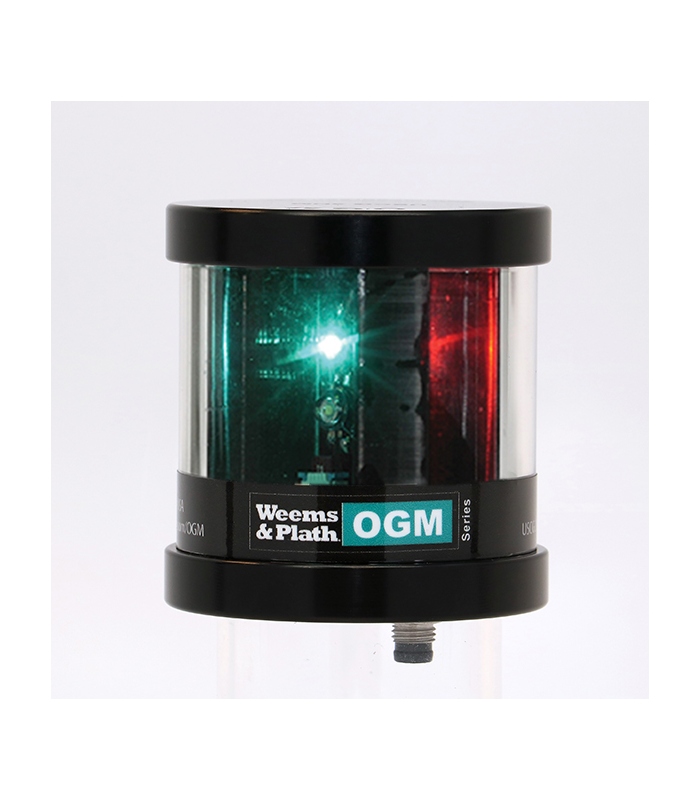

LX TriColor/Anchor LED Navigation Light

This LED TriColor/Anchor combination light is not only rugged and waterproof, but it also uses 5 times less power than comparable incandescents! The light is perfect for sailboats up to 65-feet in length.

U.S. Coast Guard approved and used by the USCG and on board other military vessels since 2004. The LX Collection of Weems & Plath OGM LED Navigation Lights was the first in the world to be USCG approved and has set the standard for all others to follow.

Includes a waterproof quick-disconnect plug with 3-foot mating cable. Bracket and Reversing Switch sold separately.

  • Visibility: 2NM
  • Voltage Range: 9-30V DC
  • Current Draw: ≤ 0.33 Amps at 12V DC
  • Power Consumption: 4 Watts
  • Horizontal Viewing Angle: 112.5°/ea for Port and Starboard (225° total); 360° for Anchor
  • Vertical Viewing Angle: +/- 36°
  • Wiring: 3-pin waterproof, quick-disconnect plug with 3-foot mating cable
  • Certifications: USCG 2 NM, ABYC-A16, COLREGS '72
  • Construction: Aluminum, Cast Acrylic
  • Made in the USA
  • Limited LIFETIME Warranty (effective 04/24/2019)
