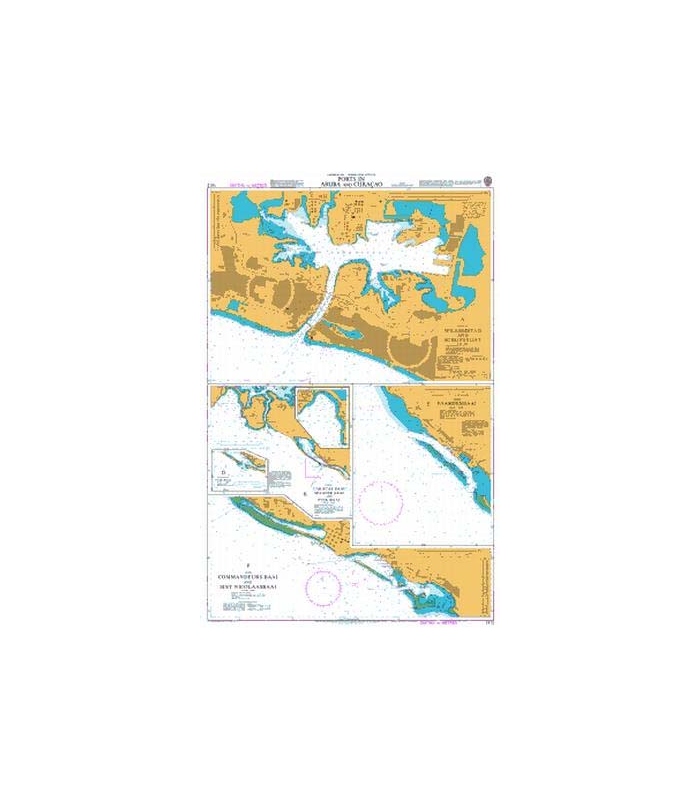

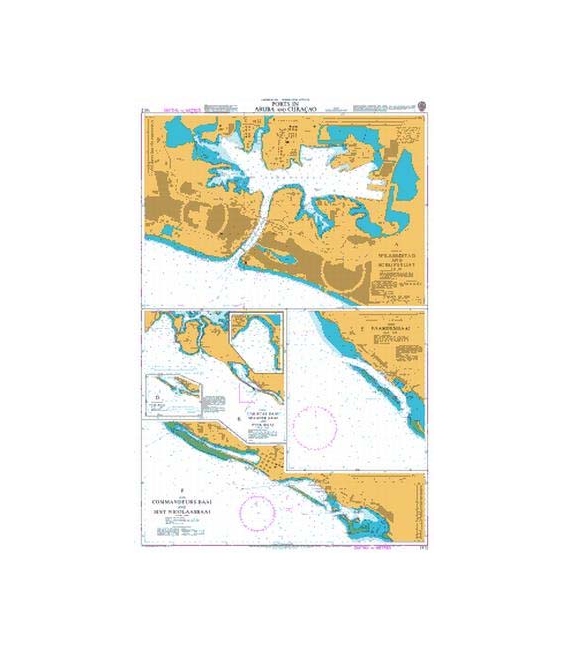

British Admiralty Nautical Chart 1412 Ports in Aruba and Curacao

British Admiralty Nautical Chart 1412 Ports in Aruba and Curacao

is corrected up to date. Admiralty standard nautical charts comply with Safety of Life at Sea (SOLAS) regulations and are ideal for professional, commercial and recreational use. Charts within the series consist of a range of scales, useful for passage planning, ocean crossings, coastal navigation and entering port. Mariners should always use the largest scale nautical chart appropriate to their needs. In particularly busy seaways such as the English Channel, Gulf of Suez and the Malacca and Singapore Straits, the standard nautical charts are supplemented by mariners routeing guides which provide advice on route planning in these complex areas.

**The below plans were moved on 22 July 21

E. Paardenbaai (Aruba) (15,000) *** replaced by 781

F. Commandeurs Baai & Sint Nicolaasbaai ( Aruba) (15,000) - *** replaced by 781

Chart 1412

Main Chart Details

• Chart Title: Ports in Aruba and Curacao
• Publication Date: 14/08/1987
• Latest Edition date: 06/02/2014
• Chart Size: 640 x 975 (mm)

Chart Panel Details

• Panel Name A Willemstad and Schottegat
• Area Name Curacao
• Natural Scale 8000
• North Limit 12 07'.71N
• East Limit 68 54'.29W
• South Limit 12 05'.81N
• West Limit 68 57'.12W

• Panel Name B Caracas Baai, Spaanse Baai and Fuik Baai
• Area Name Curacao
• Natural Scale 18000
• North Limit 12 04'.72N
• East Limit 68 49'.26W
• South Limit 12 01'.81N
• West Limit 68 52'.42W

• Panel Name C Caracas Baai
• Natural Scale 10000
• North Limit 12 04'.70N
• East Limit 68 51'.66W
• South Limit 12 04'.00N
• West Limit 68 52'.29W

• Panel Name D Entrance to Fuik Baai
• Natural Scale 10000
• North Limit 12 03'.12N
• East Limit 68 49'.61W
• South Limit 12 02'.66N
• West Limit 68 50'.27W

• Panel Name E Paardenbaai  - *** replaced by 781
• Area Name Aruba
• Natural Scale 15000
• North Limit 12 32'.45N
• East Limit 70 01'.85W
• South Limit 12 29'.51N
• West Limit 70 04'.43W

• Panel Name F Commandeurs Baai and Sint Nicolaasbaai - *** replaced by 781
• Area Name Aruba
• Natural Scale 15000
• North Limit 12 26'.96N
• East Limit 69 52'.37W
• South Limit 12 24'.71N
• West Limit 69 57'.68W

Co-ordinates given are usually those of the four extremities of the chart. In many cases not all the area within will be fully charted*.Customers should check that the chart meets their requirements by viewing the chart image (where available).Mariners should always use the largest scale navigational chart available.

*Reasons may include

• Continuation of coverage of a small part outside the main area of chart coverage e.g a river.
• Inset plans and the chart title block and notes also take up space, therefore geographical information cannot be shown in this area.
• A need to refer to larger scale of chart, such waters are often "blued out" to avoid excessive maintenance work applying numerous NM corrections to an area of the small scale chart where the navigator will be using a larger scale chart.
• Coverage is better served from a different chart because of typical routeings.
• Continuation of coverage of a small part outside the main area of chart coverage e.g a river.
