Sealite SL-SIGN-20 Solar Powered LED Sign Light
*** Please e-mail us @ [email protected] for pricing & availability.
Sealite SL-SIGN-20 Solar Powered LED Sign Light

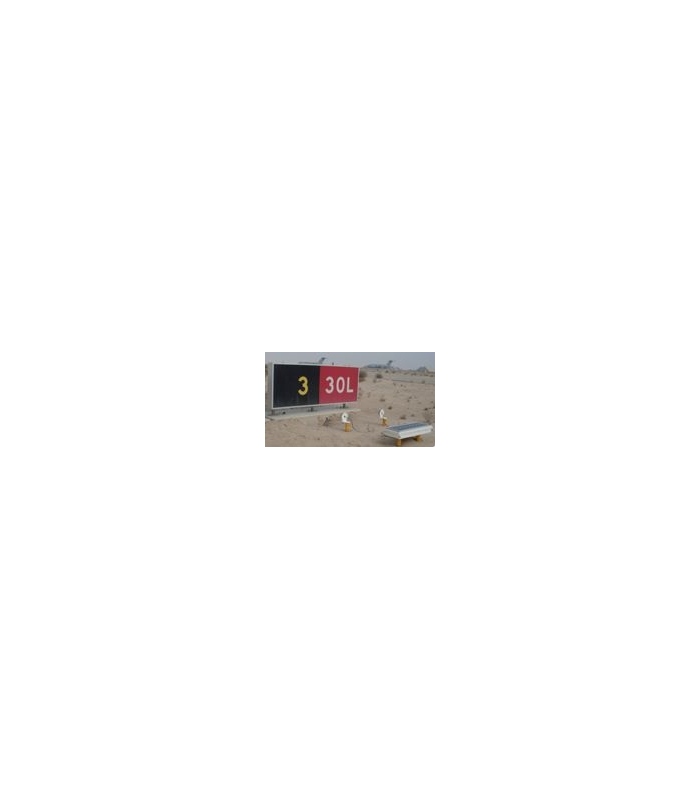

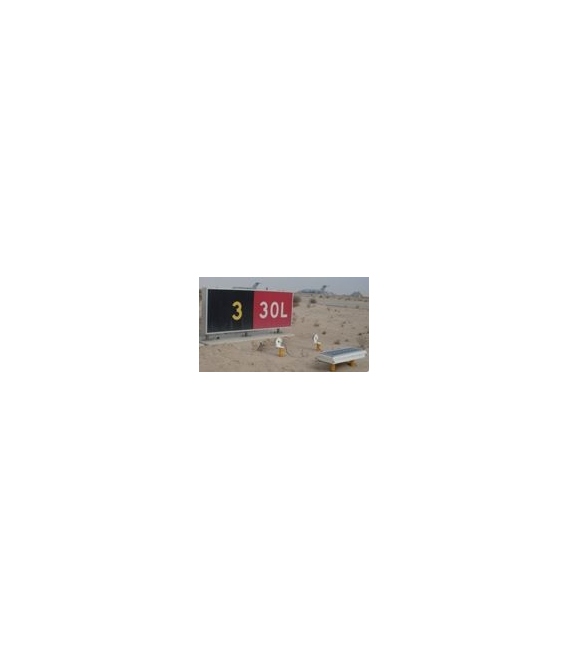

Sealite’s Solar LED Sign Light is a remote solar powered signage light designed to suit a range of signage illumination installations where mains power in not available.
The unit can be fitted with up to 2 domed LED light fixtures, each featuring a single 3watt surface mounted, ultra-high intensity LED for maximum illumination with an even 120 degree light spread.
The light fixture also features a domed, UV-stabilised, LEXAN® polycarbonate lens and base, and convenient mounting bracket ensuring flexibility and ease of installation.

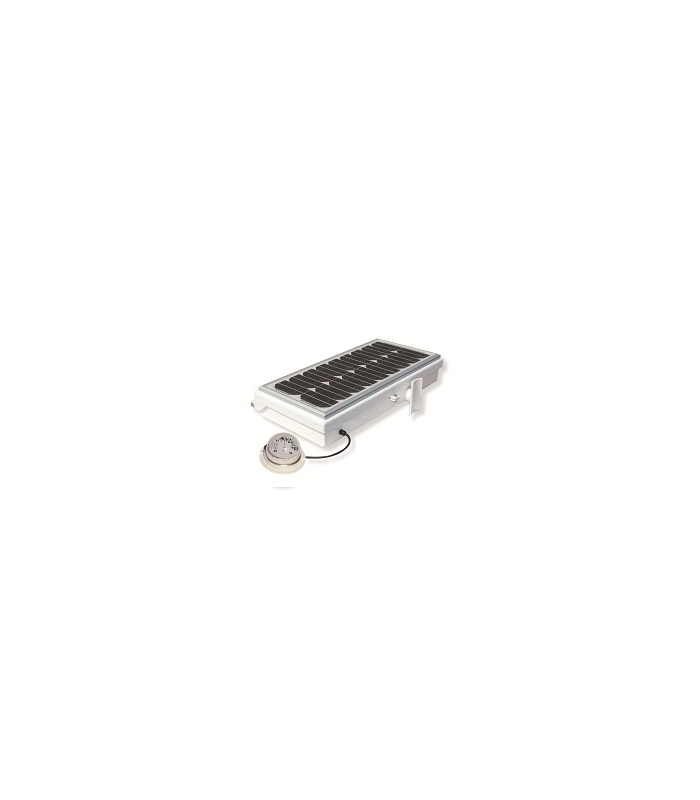

The Power Box consisting of a 20watt multicrystalline solar module, 18Ah SLA battery and charge regulator, is made from 7-stage, powder-coated aluminium making the unit extremely robust.
The Solar LED Sign Light is designed to withstand a range of environmental conditions, and once installed requires minimal maintenance.
| The following downloads are available | Download |
|---|---|
| Product Specifications | [ download 728 KB ] |
| Installation Manual | [ download 1 MB ] |
Features of the Sealite SL-SIGN-20

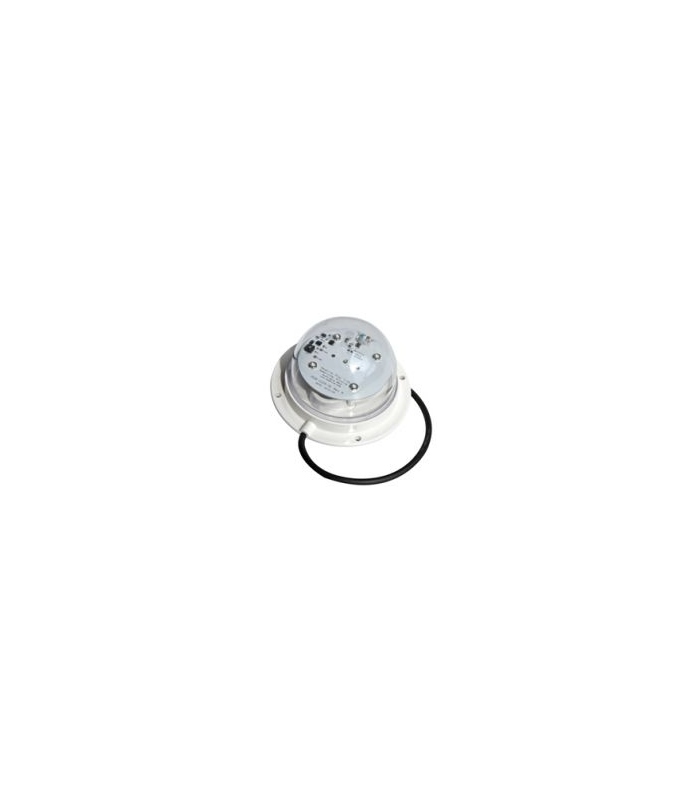

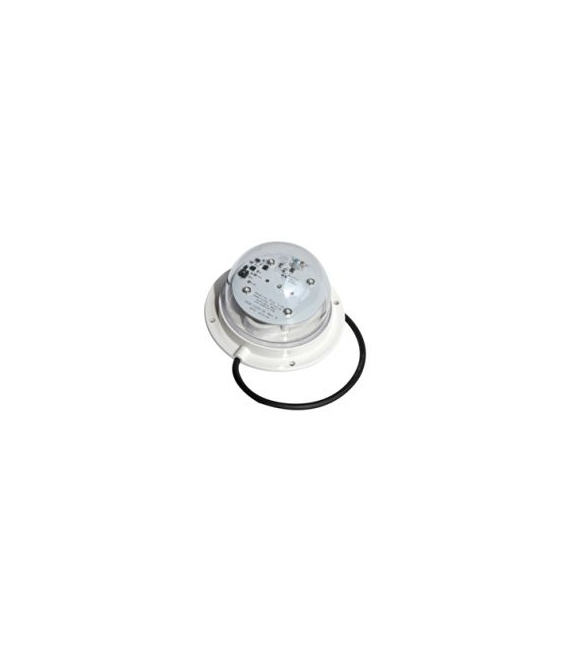

- Domed luminaire (SL09) with 3watt surface mounted, ultra-high intensity LED for optimal area illumination (>120 degrees)
- 20watt multicrystalline solar module

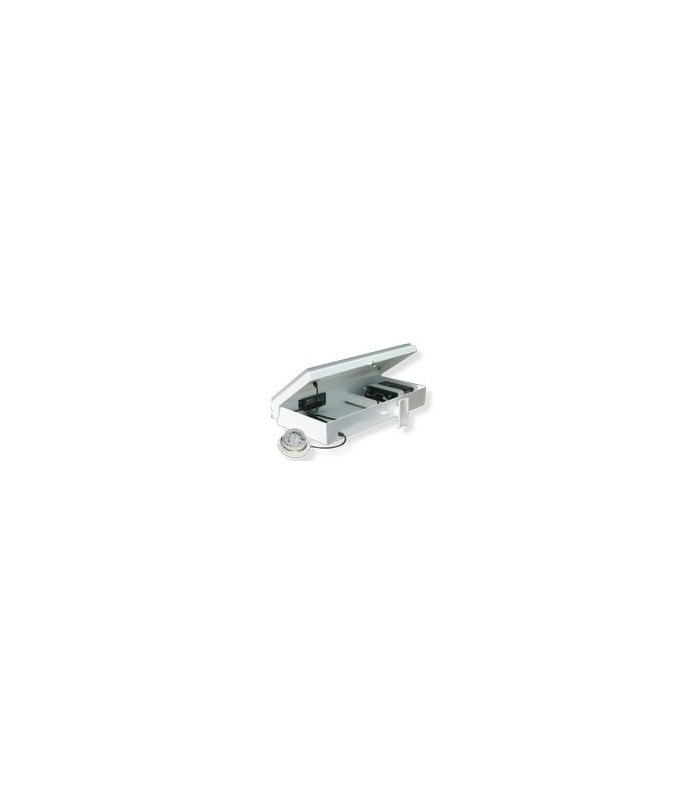

- Hinged assembly for easy internal access to battery & driving circuitry
- Lockable heavy-duty powder-coated aluminium assembly
- Convenient pole mount (optional frangible mounting assembly available)
Advantages of the Sealite SL-SIGN-20
- Complete solar-powered LED area lighting system - perfect for sign lighting & area illumination
- Ultra-high intensity LEDs
- Extremely low maintenance
- Adjustable ON time from 1 hour to dusk to dawn
- Full 3 year warranty
|
Light Characteristics
|
|
| Light Source | Up to 2 domed LEXAN® luminaires (standard SL-SIGN-20 comes with 1 luminaire) |
| Available Flash Colors | White |
| LED Life Expectancy | >100,000 hours |
|
Electrical Characteristics
|
|
| Current Draw | Up to 250mA per domed luminaire (dependent on numb |
| Circuit Protection | Integrated |
| Nominal Voltage | 12v |
| Autonomy | 6 days |
| Temperature Range | -40 to 80°C |
|
Solar Characteristics
|
|
| Solar Module Type | Multicrystalline |
| Output | 20watt |
| Solar Module Efficiency | 14% |
| Charging Regulation | Integrated charge regulation |
|
Power Supply
|
|
| Battery Type | SLA (Sealed Lead Acid) |
| Battery Capacity | 18Ah |
| Nominal Voltage | 12v |
|
Physical Characteristics - Lights
|
|
| Body Material | LEXAN® Polycarbonate - UV stabilised (domed luminaire) |
| Lens Material | LEXAN® Polycarbonate - UV stabilised |
| Mounting | Post mount as standard (optional stake mount available) |
| Height (mm/inches) | 674 / 26 1/2 |
| Width (mm/inches) | 332 / 13 1/8 |
| Mass (Kg/lbs) | 12 / 26 1/2 |
|
Certifications
|
|
| CE | EN61000-6-3:1997, EN61000-6-1:1997 |
| Quality Assurance | ISO9001:2008 |
|
Intellectual Property
|
|
| Trademarks | SEALITE® is a registered trademark of Sealite Pty Ltd |
|
Warranty
|
|
| Warranty | Full 3 years |
