Sealite AL-01 Outdoor LED Luminaire

SL-AL-01

New product

$845.00

- +

Shipping Rates


More info

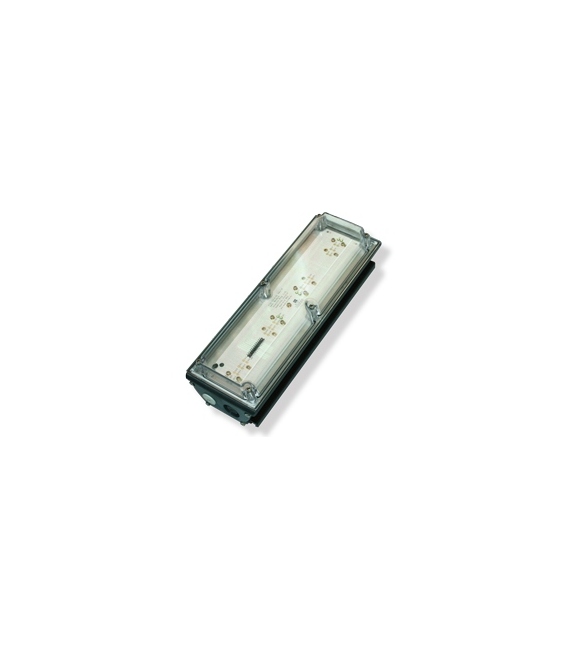

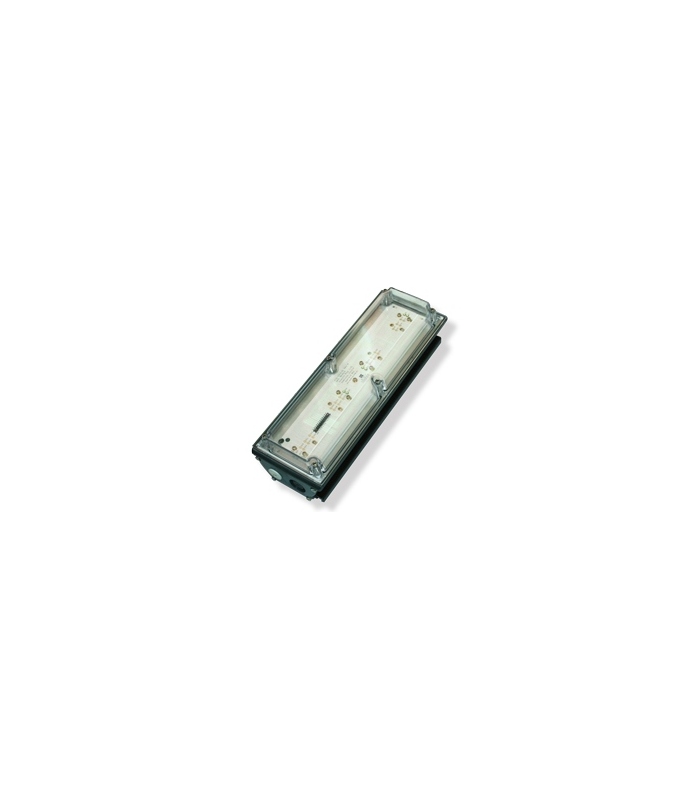

Sealite AL-01 Outdoor LED Luminaire

For the latest information on prices and availability please contact us on: (800) 596 7245 or sales@mdnautical.com

Sealite’s state-of-the-art outdoor LED luminaire provides users with the perfect solution for lighting remote locations such as shelters, car parks and maintenance areas.

Sealite has created a unique luminaire housing eight state-of-the-art, high-performance, power LEDs for optimal area illumination. Each LED bank is driven by high efficiency LED drivers maximising light output and LED life. The intensity is maintained at a constant level over various voltage shifts.

The luminaire body is constructed from extruded aluminium with injection-moulded, UV-stabilised, LEXAN® polycarbonate glass-filled end caps for superior strength and durability. The injection-moulded LEXAN® lens is fitted to the aluminium body with a marine grade o-ring ensuring superior sealing. The AL-01 outdoor LED luminaire has an ingress protection rating of IP68 ensuring that internal electronics are completely sealed and protected from water intrusion and dust when installed in the toughest environmental situations.

The custom designed aluminium extrusion is interfaced with a thermal LED substrate to reduce the build up of internal temperatures. This prevents excess heat from LED operation and external temperatures combining to create unwanted stresses on electronic and mechanical components.

A membrane vent is used to equalise pressure in the light to that of atmospheric pressure. This permits improved protection of electrical components by reducing any pressure build-up on the sealing.

The following downloads are availableDownload
Product Specifications [ download 901 KB ]
Installation Manual [ download 1.2 MB ]

Features of the Sealite AL-01_Area_Light

  • Uses state-of-the-art high performance power LEDs
  • 50,000 hour rated LEDs
  • Membrane vent
  • Positive o-ring sealing
  • Adjustable mounting along 78mm parallel channels
  • UV-stabilised LEXAN® polycarbonate lens containing 8 ultra-high intensity LEDs for optimal area illumination (>120 degrees)

Advantages of the Sealite AL-01_Area_Light

  • Toughened polycarbonate lens to withstand harsh environmental conditions & vandalism
  • Waterproof light head, rated IP68
Light Characteristics
Light Source 8 ultra-high intensity white (warm daylight) LEDs
Maximum Available Intensity Total Luminous Flux: 1360 lumens
Effective Intensity Luminous Efficiacy: 69.7lm/W
LED Life Expectancy >50,000 hours
Electrical Characteristics
Current Draw 1.637 A
Circuit Protection Integrated
Nominal Voltage 12v
Temperature Range -40 to 55°C
Physical Characteristics - Lights
Body Material Extruded aluminium chassis with LEXAN® polycarbonate glass filled end caps - UV-stabilised
Lens Material LEXAN® Polycarbonate – UV stabilised
Mounting Adjustable along 78mm parallel channels
Height (mm/inches) 85 / 3 3/4
Width (mm/inches) 108 / 4 1/4
Length (mm/inches) 300 / 11 7/8
Mass (Kg/lbs) 1.5 / 3.3
Certifications
CE EN61000-6-3:1997. EN61000-6-1:1997
Quality Assurance ISO9001:2008
Waterproof IP68
Intellectual Property
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty
Warranty Full 3 years
