Each LED bank is driven by high efficiency LED drivers maximising light output and LED life. The intensity is maintained at a constant level over various voltage shifts.

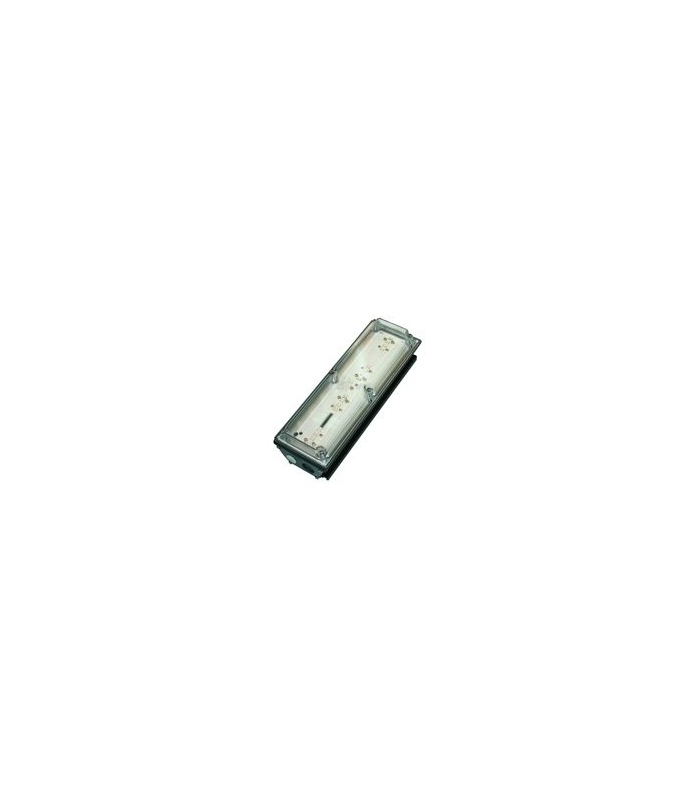

The light uses a 140watt multicrystalline solar panel, and Sealite’s unique AL-01 LED luminaire.
The light head body is constructed from extruded aluminium with injection-moulded UV-stabilised LEXAN® polycarbonate glass-filled end caps for superior strength and durability. The injectionmoulded LEXAN® lens is fitted to the aluminium body with a marine grade o-ring ensuring a superior sealing (IP68 waterproof).
The weather resistant galvanised mounting pole securely houses the two 55Ah SLA batteries and 10Amp regulator in its base for ease of servicing after years of maintenance-free operation.
The light begins operation automatically, as soon as the ambient light threshold drops sufficiently, and once installed, requires minimal maintenance.
The following downloads are available | Download |
---|---|
Product Specifications | [ download 1.3 MB ] |
Installation Manual | [ download 1.5 MB ] |
Light Characteristics
|
|
Light Source | 8 ultra-high intensity white (warm daylight) LEDs |
Maximum Available Intensity | Total Luminous Flux: 1360 lumens |
Effective Intensity | Luminous Efficiacy: 69.7lm/W |
LED Life Expectancy | >50,000 hours |
Electrical Characteristics
|
|
Current Draw | 1.637 A |
Circuit Protection | Integrated |
Nominal Voltage | 12v |
Autonomy | 5 nights (typical) - operation without sunlight |
Temperature Range | -40 to 55°C |
Solar Characteristics
|
|
Solar Module Type | Multicrystalline |
Output | 140watt |
Solar Module Efficiency | 14% |
Charging Regulation | Integrated charge regulator |
Power Supply
|
|
Battery Type | SLA (Sealed Lead Acid) |
Battery Capacity | 110Ah (2 x 55Ah batteries) |
Nominal Voltage | 12v |
Physical Characteristics - Lights
|
|
Body Material | See downloadable PDF |
Lens Material | LEXAN® Polycarbonate - UV stabilised (light head) |
Mounting | 4 x 22mm holes (post) |
Height (mm/inches) | 7160 / 281 7/8 (complete assembly) |
Width (mm/inches) | See downloadable PDF |
Length (mm/inches) | See downloadable PDF |
Mass (Kg/lbs) | 250 / 551 (complete assembly) |
Certifications
|
|
CE | EN61000-6-3:1997, EN61000-6-1:1997 |
Quality Assurance | ISO9001:2008 |
Intellectual Property
|
|
Trademarks | SEALITE® is a registered trademark of Sealite Pty Ltd |
Warranty
|
|
Warranty | Full 3 years |
