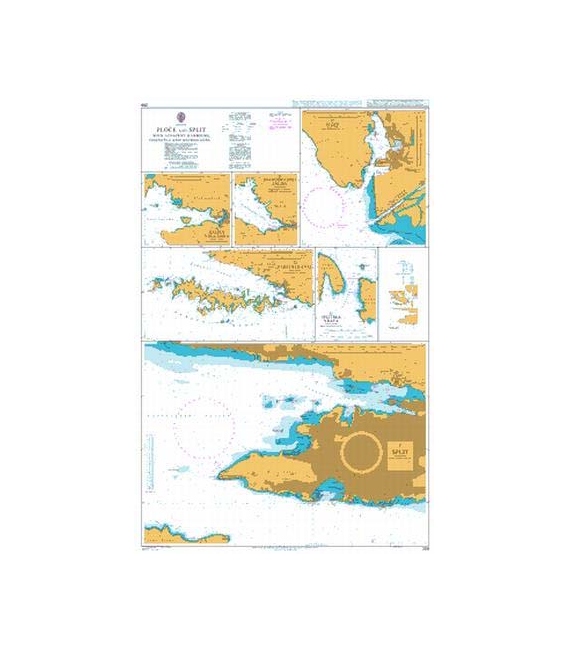

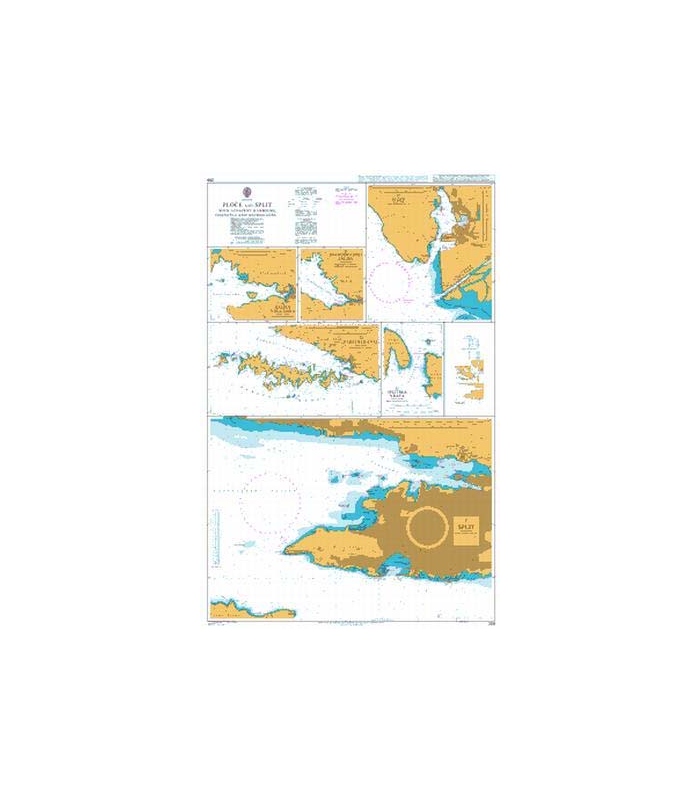

British Admiralty Nautical Chart 269 Ploce and Split with Adjacent Harbours, Channels and Anchorages

British Admiralty Nautical Chart 269 Ploce and Split with Adjacent Harbours- Channels and Anchorages

 is corrected up to date. Admiralty standard nautical charts comply with Safety of Life at Sea (SOLAS) regulations and are ideal for professional, commercial and recreational use. Charts within the series consist of a range of scales, useful for passage planning, ocean crossings, coastal navigation and entering port. Mariners should always use the largest scale nautical chart appropriate to their needs. In particularly busy seaways such as the English Channel, Gulf of Suez and the Malacca and Singapore Straits, the standard nautical charts are supplemented by mariners routeing guides which provide advice on route planning in these complex areas.

Chart 269

Main Chart Details

• Chart Title: Ploce and Split with adjacent Harbours, Channels and Anchorages
• Publication Date: 22/12/1989
• Latest Edition date: 15/06/2017
• Chart Size: 650 x 1000 (mm)

Chart Panel Details

• Panel Name A Split, Gradska Luka
• Area Name Croatia
• Natural Scale 5000
• North Limit 43 30'.50N
• East Limit 16 26'.71E
• South Limit 43 30'.00N
• West Limit 16 25'.40E

• Panel Name B Ploce
• Area Name Croatia
• Natural Scale 15000
• North Limit 43 03'.82N
• East Limit 17 26'.71E
• South Limit 43 01'.30N
• West Limit 17 23'.55E

• Panel Name C Pakleni Kanal
• Area Name Croatia
• Natural Scale 35000
• North Limit 43 11'.90N
• East Limit 16 28'.36E
• South Limit 43 08'.00N
• West Limit 16 18'.30E

• Panel Name D Splitska Vrata
• Area Name Croatia
• Natural Scale 20000
• North Limit 43 20'.73N
• East Limit 16 25'.07E
• South Limit 43 18'.50N
• West Limit 16 23'.07E

• Panel Name E Split
• Area Name Croatia
• Natural Scale 15000
• North Limit 43 32'.99N
• East Limit 16 28'.61E
• South Limit 43 29'.25N
• West Limit 16 21'.37E

• Panel Name C. Pakleni Kanal
• Area Name Croatia
• Natural Scale 35000
• North Limit 43 11'.90N
• East Limit 16 28'.36E
• South Limit 43 08'.00N
• West Limit 16 18'.30E

Co-ordinates given are usually those of the four extremities of the chart. In many cases not all the area within will be fully charted*.Customers should check that the chart meets their requirements by viewing the chart image (where available).Mariners should always use the largest scale navigational chart available.

*Reasons may include

• Continuation of coverage of a small part outside the main area of chart coverage e.g a river.
• Inset plans and the chart title block and notes also take up space, therefore geographical information cannot be shown in this area.
• A need to refer to larger scale of chart, such waters are often "blued out" to avoid excessive maintenance work applying numerous NM corrections to an area of the small scale chart where the navigator will be using a larger scale chart.
• Coverage is better served from a different chart because of typical routeings.
